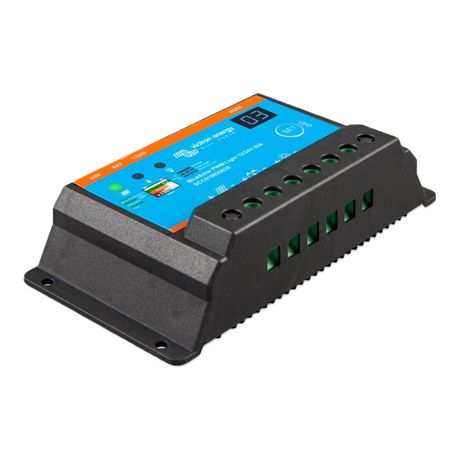

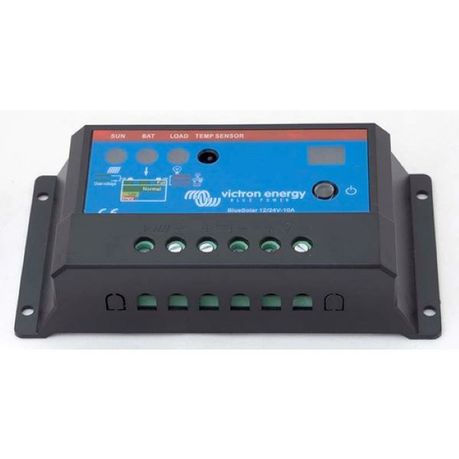

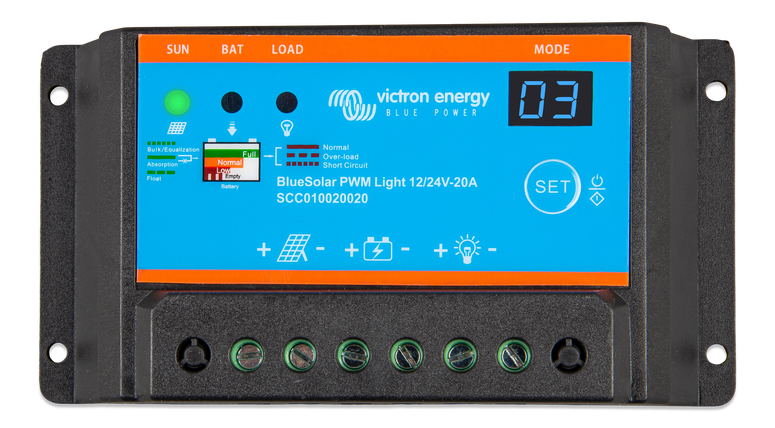

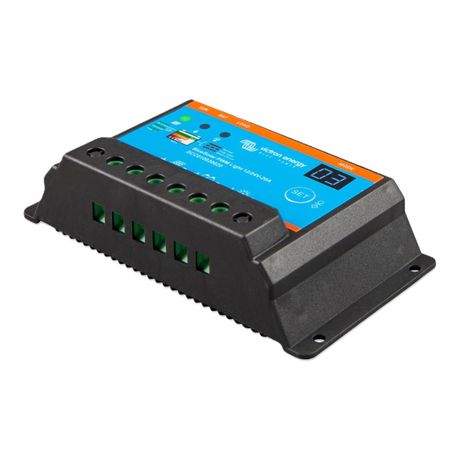

Victron BlueSolar PWM-Light Charge Controller 12/24V – 20A

The Victron BlueSolar PWM-Light 20A is a reliable solar charge controller designed for small to medium off-grid solar systems. It ensures your battery is charged safely while protecting it from over-discharge. The controller features timer-controlled lighting output, day/night timing options, and a two-digit seven-segment display for quick and easy setup.

Key Features & Benefits

• Battery Voltage: 12/24 V with automatic system voltage detection

• Rated Charge Current: 20 A

• Automatic Load Disconnect: Protects batteries from deep discharge

• Lighting Control Function: Timer-enabled load output for lights

• Three-Stage Battery Charging: Bulk, absorption, float (pre-programmed, non-adjustable)

• Electronic Protection: Overload, short circuit, and reverse polarity protection

• Easy Configuration: Two-digit seven-segment display for timer and load settings

• Day/Night Timing Options: Automatically controls load output based on daylight

Applications

• Small to medium off-grid solar systems

• Battery-powered lighting circuits

• Protecting batteries from overcharge or deep discharge

What’s in the Box

• 1 × BlueSolar PWM-Light Charge Controller 12/24V – 20A

• 1 × User Guide
