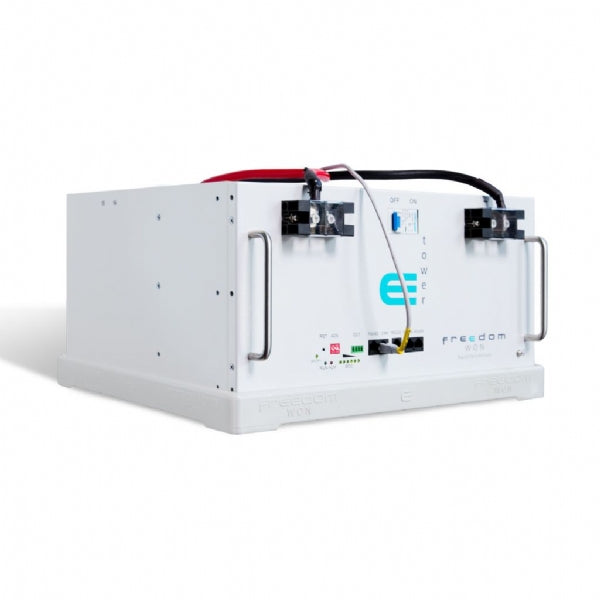

Freedom Won eTower E5000 LiFePO4

The Freedom Won eTower E5000 LiFePO4 battery offers Modular LiFePO4 Energy Storage and is the perfect high quality battery for all your residential solar solutions.

• Technical Data:
• Total Energy Capacity: 5kWh
• Energy available at 80% DOD: 4kWh
• Energy available at 90% DOD: 4.5kWh
• Current Capacity: 100Ah
• Nominal Voltage: 52V to suit 48V Inverters, Min 47V, Max 56V
• Continuous Charge Rate: 0.7C (Max 0.8C for 5 minutes per 30 minute cycle)
• Continuous Discharge Rate: 0.9C (4.7kW) (1C (5.2kW) = 100A for 5 minutes per 30 minute cycle)
• Service Life: 4000 cycles or 10 Years @ 70% DOD (Depth of Discharge) and ambient temperature > -20deg C and < 45 deg C
• Weight: 45kg
• Dimensions: 247x460x463 mm including pedestal, 222x440x443 mm excluding pedestal
• Enclosure: Steel, painted white, rated for indoor use
• DC Connection: 2 x M6 bolts each for positive and for negative terminals for DC leads to inverter and busbars for connection of parallel e5000’s in tower or rack configuration.

What's in the box:

• 1x Freedom Won eTower 5000 Stackable Battery Module

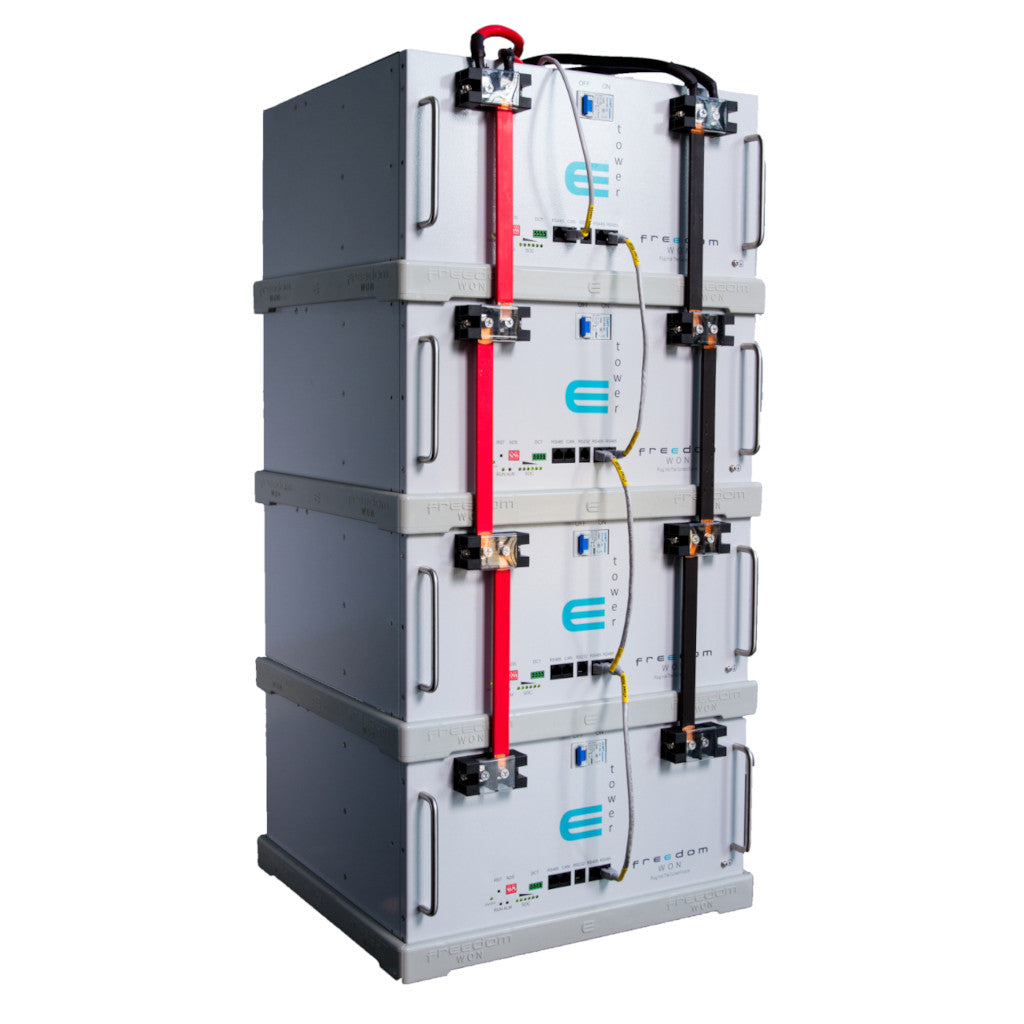

• Plastic pedestal for tower stacking (cleats for 19” rack not included but available from Freedom Won if required).
• DC cables standard 1,8m long in 35mm2 single core with M6 terminal lugs on one end, red for positive and black for negative.
• Interconnecting tower busbars drilled and cut to length for single tier jumps using tower pedestals, with heat shrink covering, red for positive and black for negative.
• Interconnecting RS485 parallel battery communication cables for interconnecting the tower modules’communication RJ45 sockets (standard ethernet cables may also be used).
• Inverter interface CAN Bus cable at 1.8m length for connecting compatible CAN bus equipped Victron inverters.
• Inverter interface CAN Bus cable at 1.8m length for connecting compatible CAN bus equipped Type 1 inverters. e.g. Sunsynk, Growatt, Solis, Goodwe (see Freedom Won Interfacing Guide for full details).

Safety & Warranty Notice — Freedom Won E-Tower e5000 LiFePO₄ Battery

• Installation must be performed only by qualified personnel. Improper installation may result in damage or safety hazards.

• Warranty: 3-year product warranty applies to this battery model.

• This battery includes an integrated BMS (Battery Management System) to protect against overcharge, over-discharge, and short circuits.

• Refer to the manufacturer’s datasheet for full specifications, including voltage, maximum charge/discharge currents, and safe operating temperature range.
