Freedom Won Lite 2 Home 10/8 LiFePO4 Battery
Freedom Won Lite 2 Home 10/8 LiFePO4 Battery
Couldn't load pickup availability

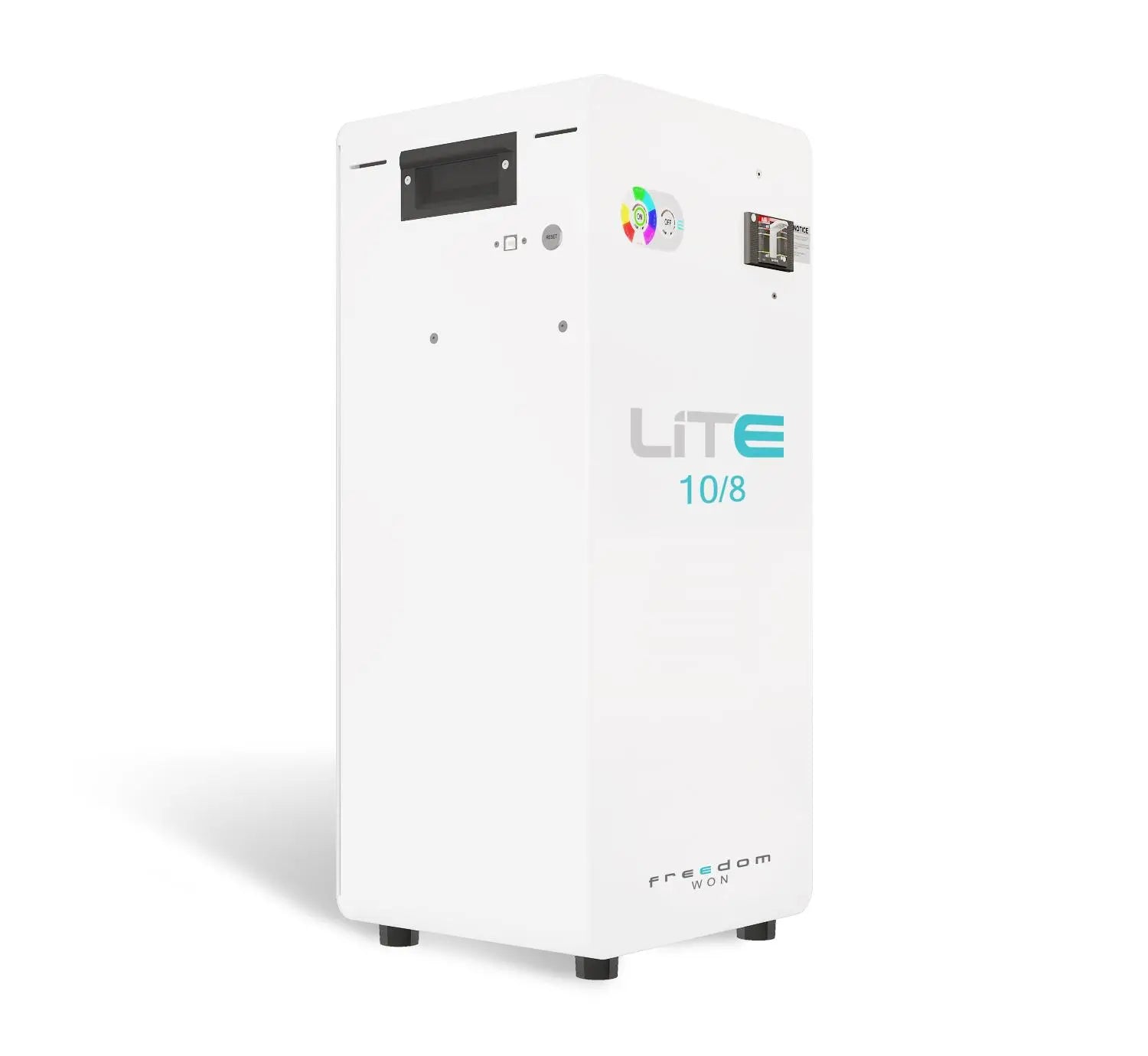

The Freedom Won Lite 2 Home 10/8 LiFePO4 Battery is a 10kWh Lithium Iron Phosphate battery designed to deliver safe, reliable, and long-lasting energy storage for residential use. Compact and floor standing, it is the perfect solution for property owners seeking backup power during load shedding and the ability to maximize solar energy use for reduced electricity bills.
Built with advanced LiFePO4 technology, the Lite Home 10/8 ensures exceptional efficiency, long cycle life, and superior safety, making it one of the most trusted choices for home and commercial solar storage in South Africa.
📝Important Notice
All LiTE 2 batteries must be registered to qualify for the 10 year local manufacturer’s warranty. Registration must be completed within 60 days of purchase to keep the warranty valid. Please note that this process must be complete by the client and/ or installer. QR code sticker on the battery can be scanned to go through the warranty registration process through the Freedom Won portal.
✅ Overview
- DoD = Depth of Discharge, recommended 80% DoD for average daily discharge, 70% DoD on average for optimal life – max for normal operation 90% DoD, max for system in standby 100% DoD.
- Max current duration 5min every 10min. 1.5 x Max overload can be handled for 5 seconds. Current limits rated for 10°C to 25°C battery temperature. Derating will apply outside this temperature range.
- Dimensions on or against wall excluding protuberances such as glands and breaker handle. Refer to Home 52V range product page for ‘B’ model specifications.
- Fly Leads 1,8m long, power cable Red = Positive, Black = Negative, conductors in table refer to one electrode i.e. per positive and negative connections.
- End of Life (EoL) defined as cell dropping to 60% of Beginning of Life (BoL) capacity for expected life and 70% of BoL capacity for warranty. This warranty applies to LiTE units sold after 1 September 2019. For LiTE units sold prior please contact Freedom Won for warranty information.
- Scalable System: Can be connected in parallel for larger residential energy storage requirements.
- Intelligent Battery Management System (BMS) – Protects against over-charge, over-discharge, and short circuits.

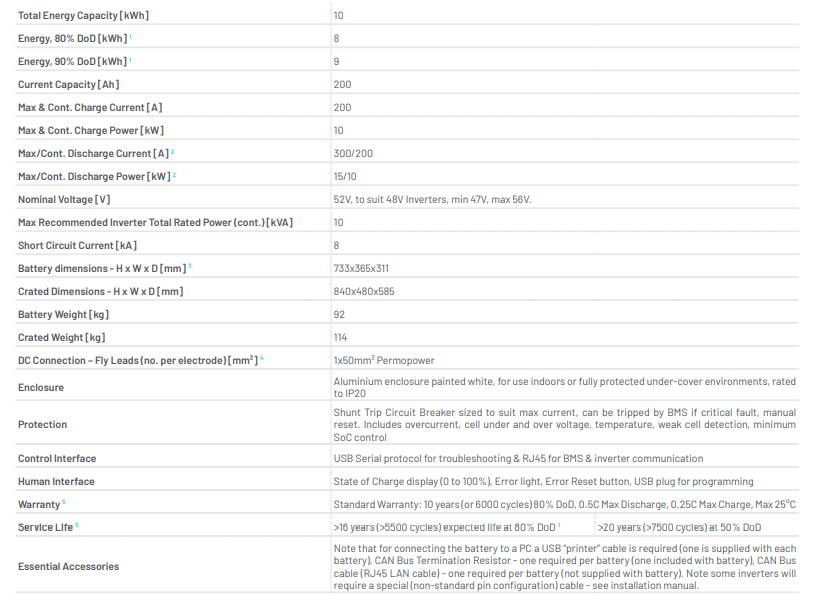

🔋 Technical Specifications
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2V
- Capacity: 10kWh (8kW continuous output)
- Cycle Life: >6,000 cycles @ 80% DOD
- Efficiency: >95%
- Mounting: Floor Standing indoor installation
- Warranty: 10 years
