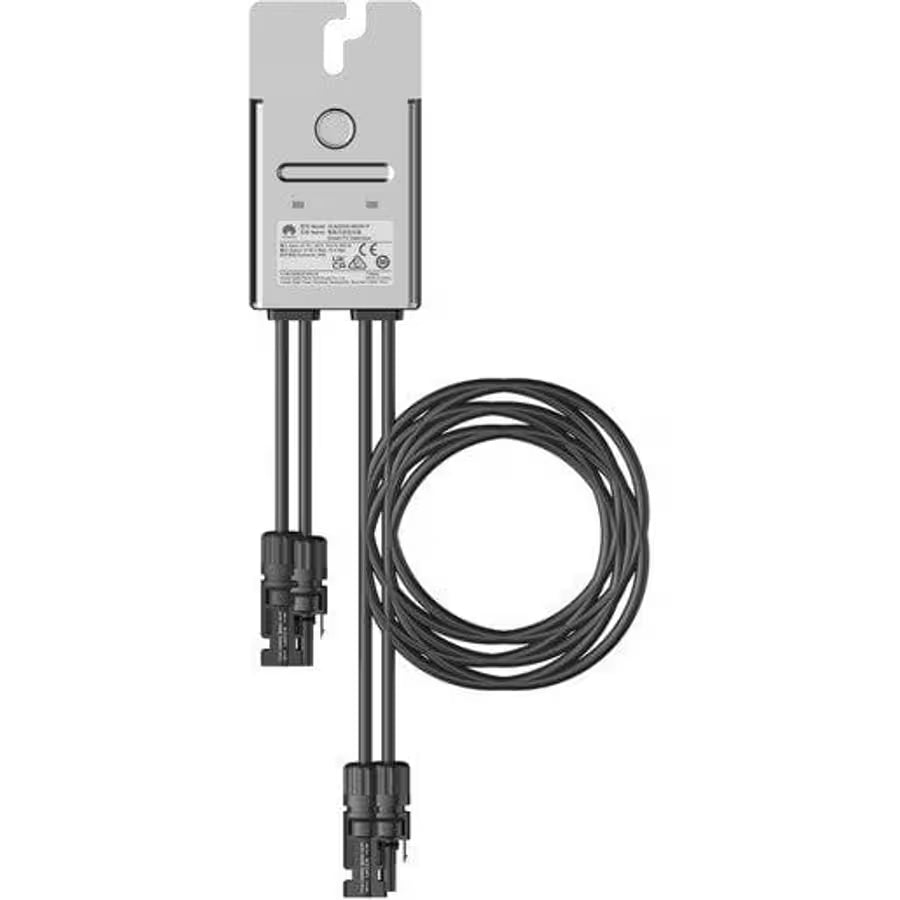

Huawei MERC-1300W-P 1300W Smart PV Optimiser

The Huawei MERC-1300W-P is a 1300W smart PV optimiser for compatible commercial photovoltaic systems. It adds module-level maximum power point tracking to help each connected module operate effectively when array conditions vary.

Rated for 1300W module power, the optimiser supports up to 1365W maximum module power, 125V maximum input and a 12.5–105V MPPT range. Maximum efficiency is 99.5%, with up to 22A output current and an output voltage range of 2–80V.

The compact IP68 housing is designed for installation on a PV module support or frame and uses Staubli MC4 DC terminals. Its 149 x 104 x 48.8mm body weighs no more than 1.05kg and operates from -40°C to 85°C for demanding outdoor PV environments.

Key Features

• Model: Huawei MERC-1300W-P
• Product type: Smart PV power optimiser
• Rated module power: 1300W
• Maximum module power: 1365W
• Maximum input voltage: 125V
• MPPT voltage range: 12.5–105V
• Maximum efficiency: 99.5%
• DC terminals: Staubli MC4
• Protection rating: IP68
• Dimensions and weight: 149 x 104 x 48.8mm; up to 1.05kg
