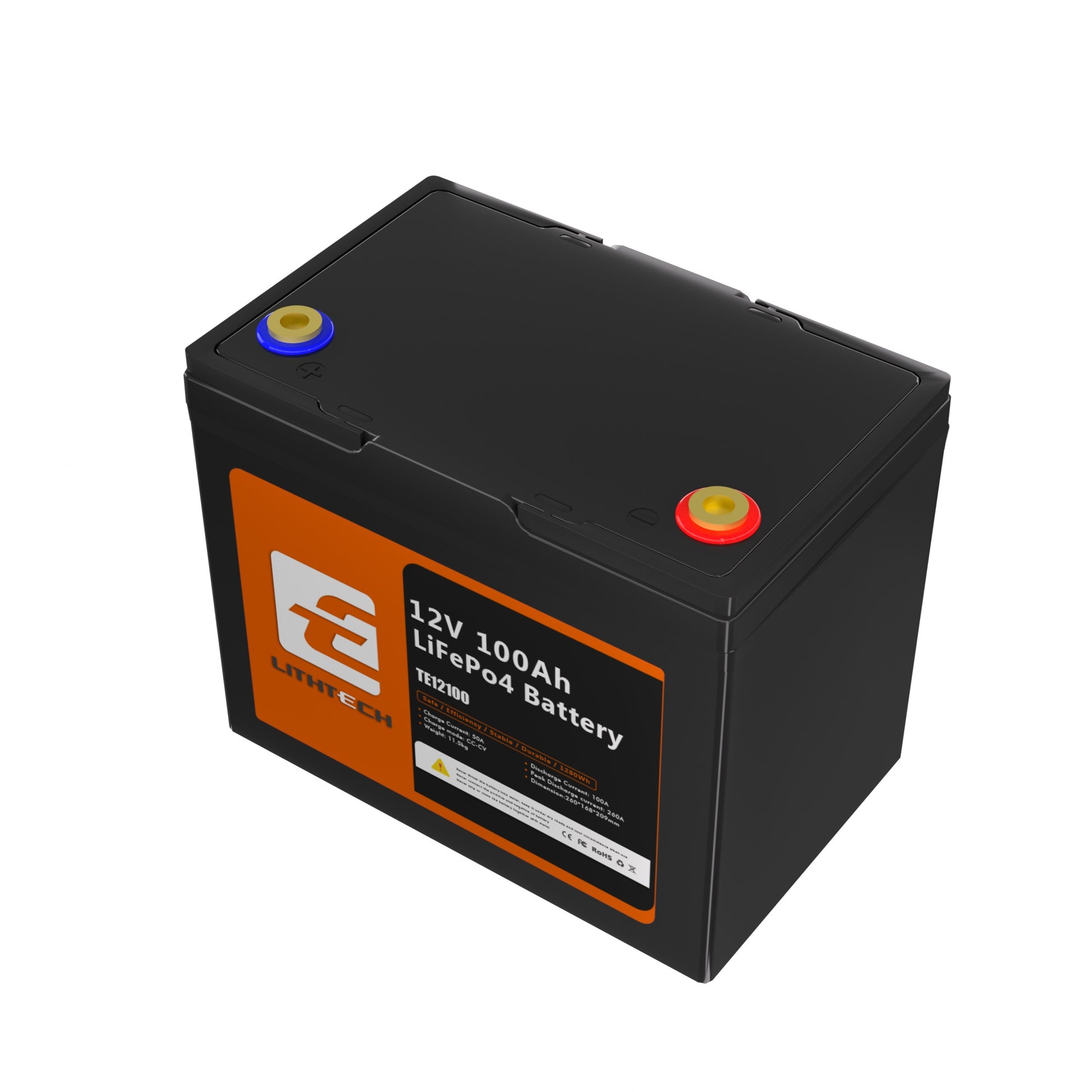

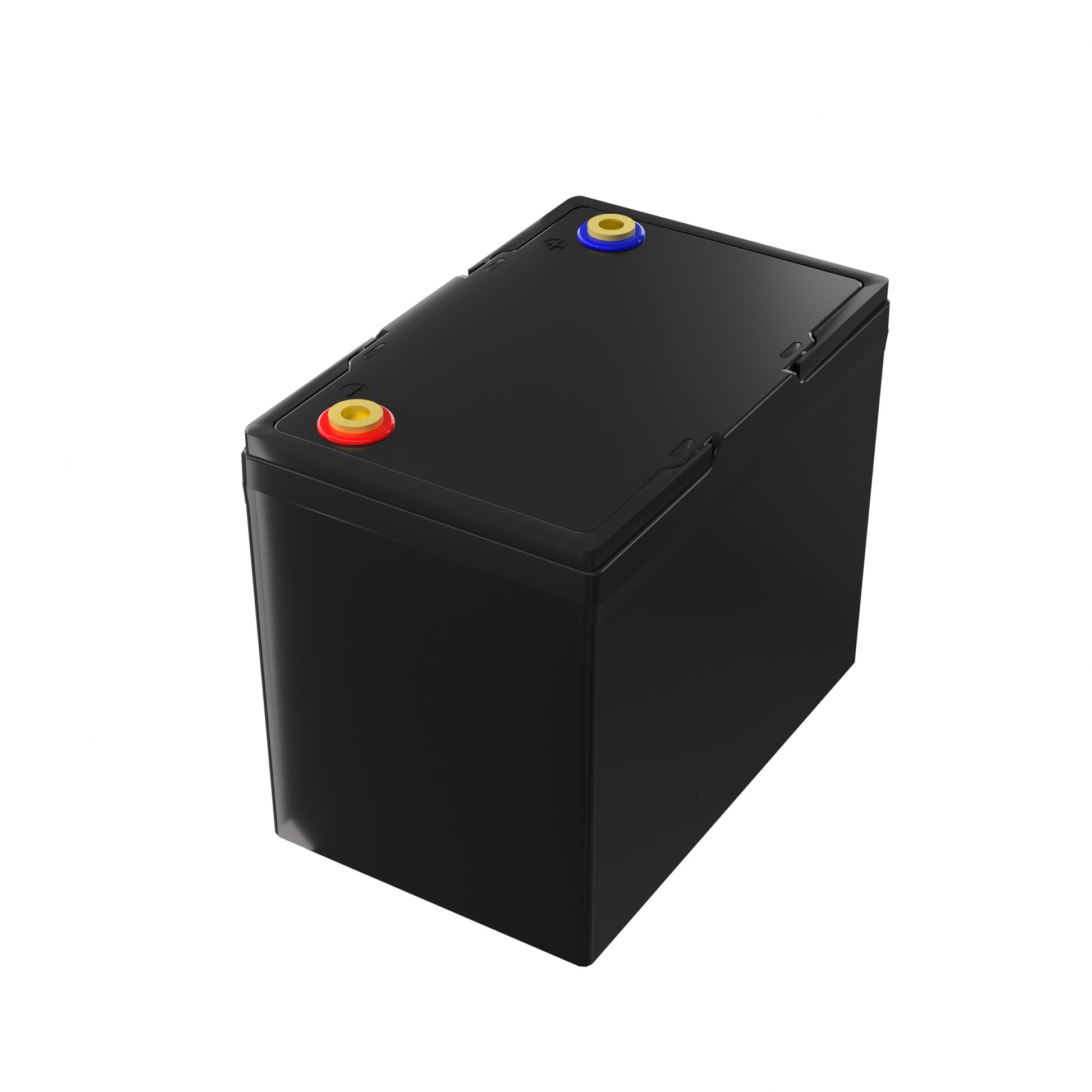

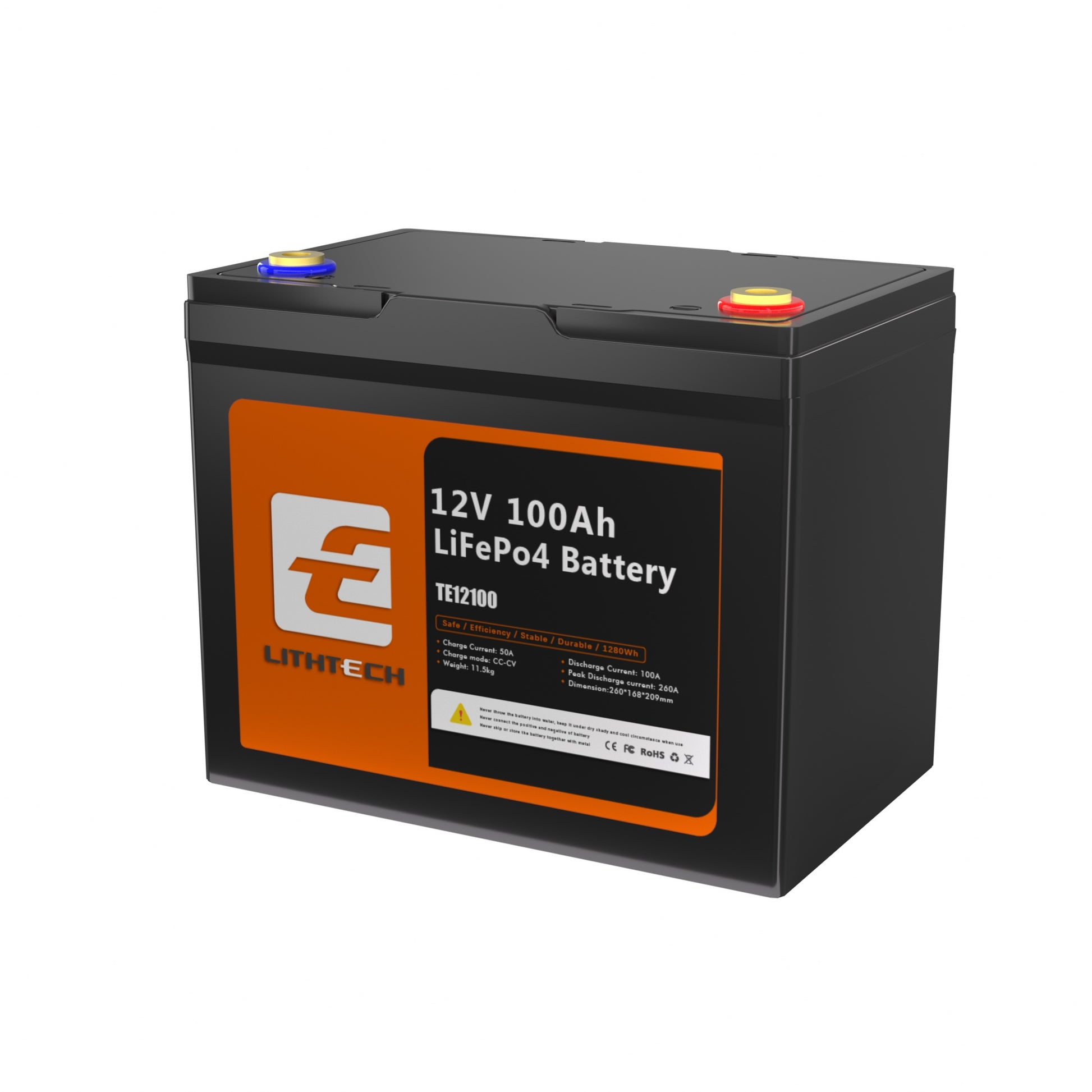

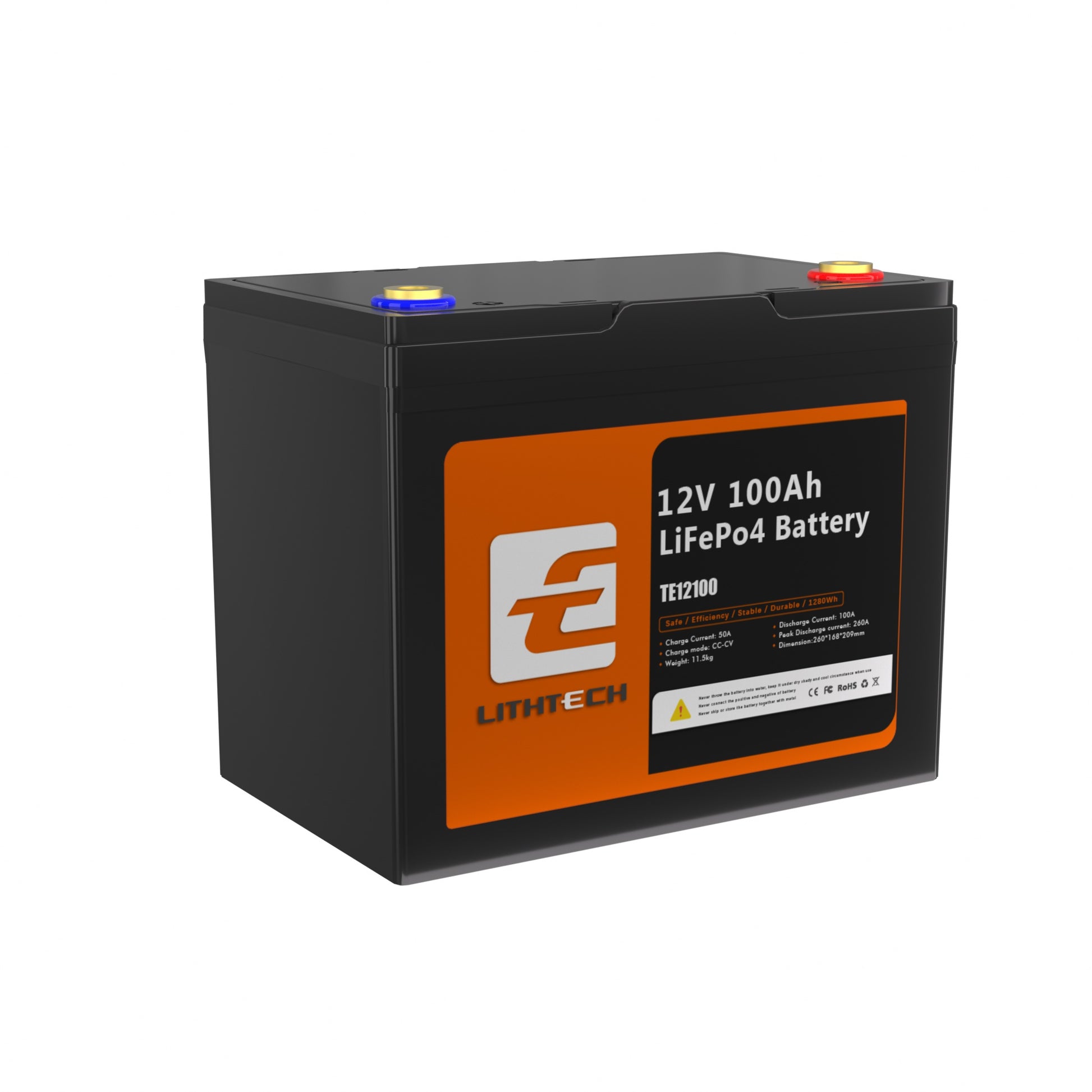

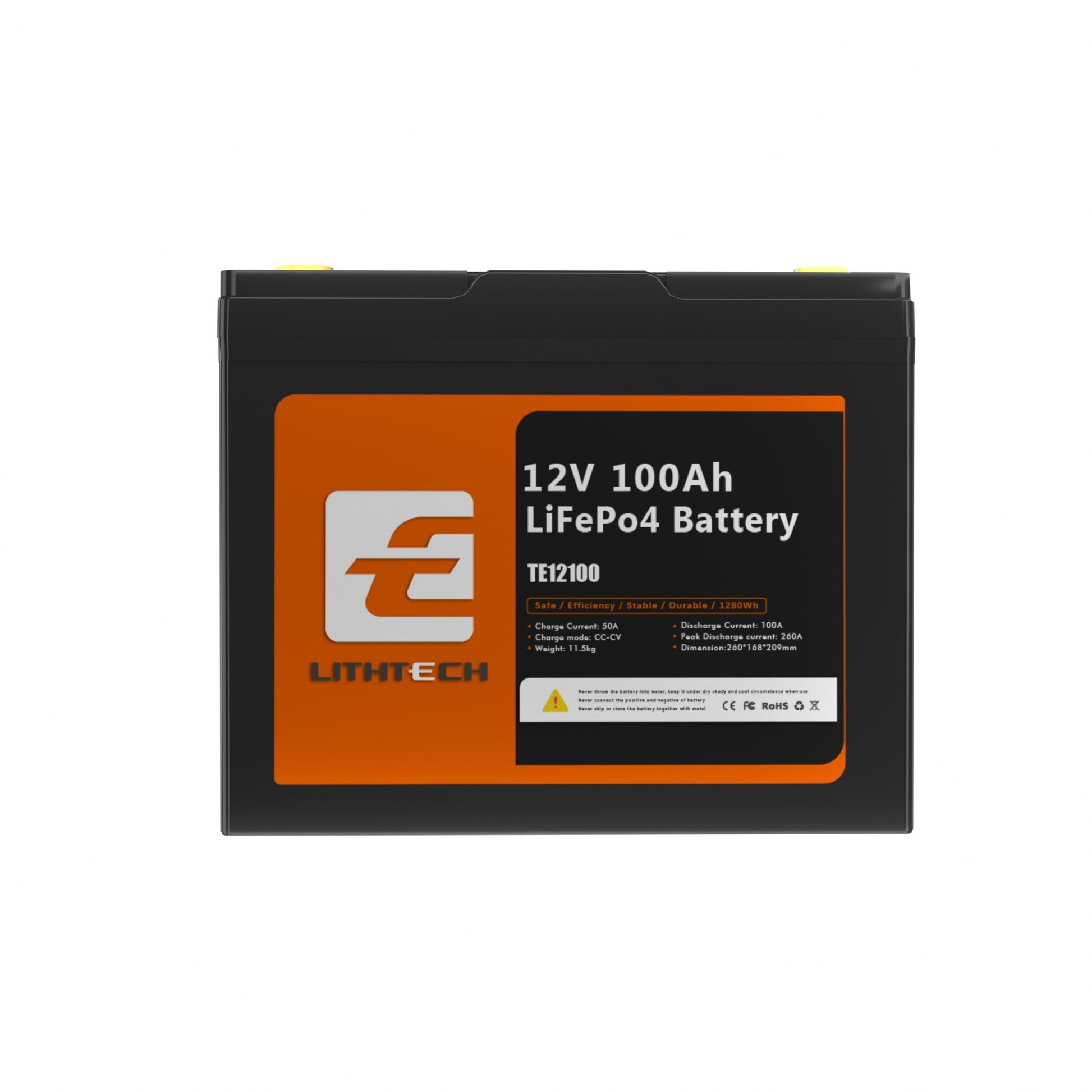

Lithtech 12V 100AH LiFePo4 battery (Group 24)

Housing: IP65 ABS case
Compact Size: 260x168x209mm (Group 24)
BMS: 100A BMS, 330A peak 5S
Weight: approx. 10kg
Terminal: M8
Cycle life: 5000+
Warranty: 3 years

Maximum units in series : 4

Maximum units in parallel : No limit

CHARACTERISTICS
Electrical Characteristics
Nominal Voltage
12.8V
Nominal Capacity
100Ah@0.2C
Energy
1280Wh
Internal Resistance
≤30mΩ @ 50% SOC
Cycle Life
5000 Cycles
Months Self Discharge
3.5% per month

Recommend Charge Voltage
14.2-14.6V
Recommended Charge Current
10A-50A
Maximum Charge Current
100A

Maximum Continuous Discharge Current
100A

Peak Discharge Current

110A≤10s

BMS Discharge Current Cut-off
330A±62/320ms
Discharge Cut-off Voltage
10.0V
Environmental
Charge Temperature
0 to 45 (32 to 113 ) @60 25% Relative Humidity
Disxcharge Temperature
-20 to 60 (-4 to 140 ) @60 25% Relative Humidity
Storage Temperature
0 to 45 (32 to 113 ) @60 25% Relative Humidity
Water Dust Resistance IP65
Mechanical
Cell & Method
LFP/AL-100AH, 4S1P Plastic
Plastic Case
ABS
Dimension(LxWxH) 260x168x209mm
Weight Approx.11kg
Terminal M8

What's in the box
1 x 12V 100AH battery
1 x Manual
1 x M8 screws and battery terminal cover set
1 x Warranty process sticker
