Out of stock
Lithtech

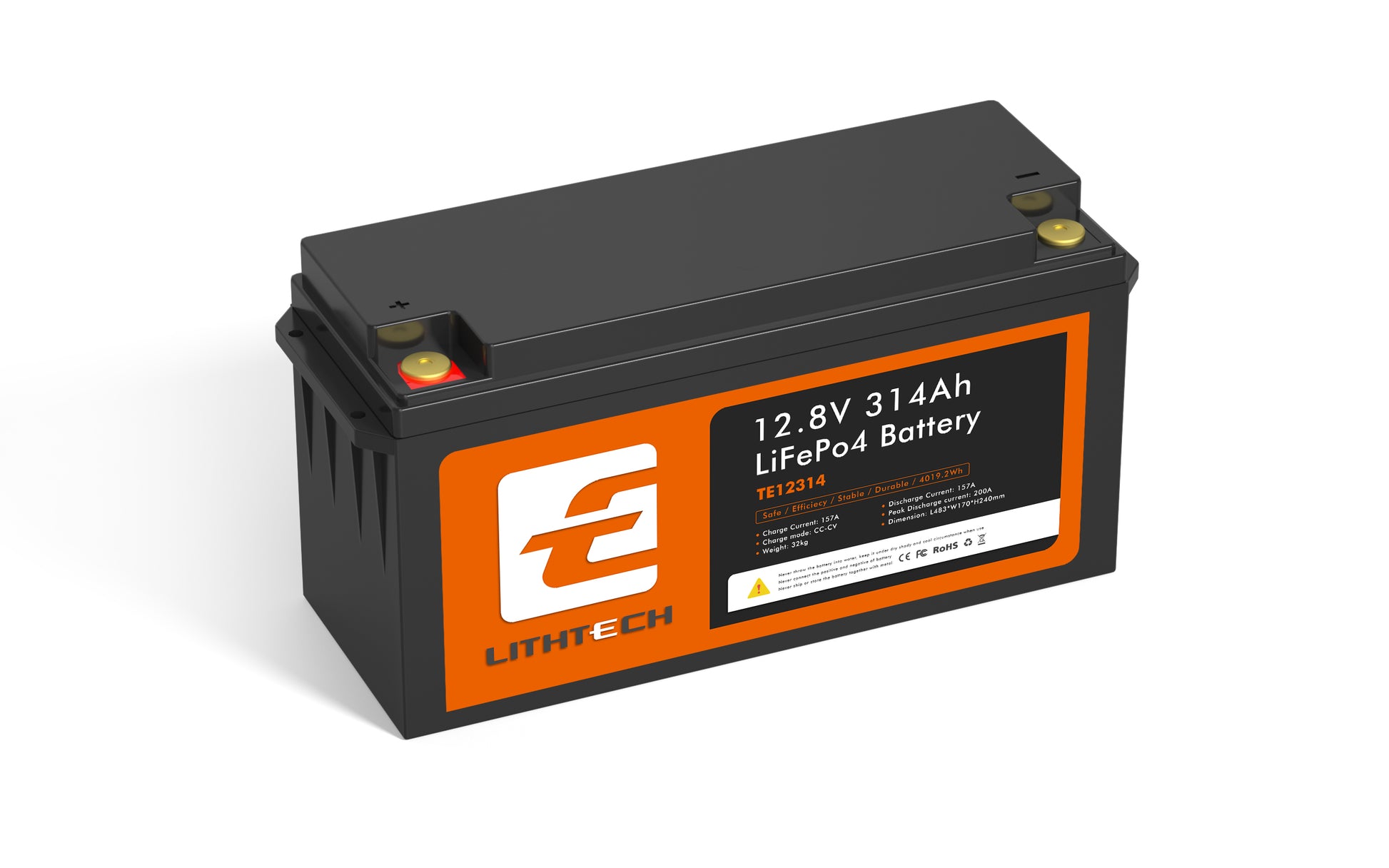

Lithtech 12V 314AH Bluetooth Smart LiFePo4 Battery
Lithtech 12V 314AH Bluetooth Smart LiFePo4 Battery
Couldn't load pickup availability
The Lithtech 12V 314Ah LiFePO4 Battery is a flagship-grade lithium iron phosphate battery built for high-demand energy storage applications — large solar systems, whole-home backup, off-grid cabins, and serious marine or overlanding builds. Delivering 3840Wh from a single unit, this battery is designed for installations where runtime and load capacity are non-negotiable.
Built with a rugged IP65-rated ABS housing, the TE12314B is fully dust-tight and water jet resistant, making it suitable for tougher environments where lesser batteries would fail. At 12.8V nominal with a 200A continuous discharge rating, it can handle the startup surges of heavy loads — compressors, large inverters, power tools — without flinching. What sets it apart from the rest of the range is built-in Bluetooth connectivity, allowing you to monitor state of charge, voltage, current, and cell health directly from your smartphone — no additional hardware required.
The integrated BMS with 760A short circuit cut-off and 157A maximum charge acceptance provides comprehensive protection and fast recharge capability from solar arrays or generators. The battery supports up to 4 units in series and 4 in parallel (4S4NP), offering a clear upgrade path as your energy needs expand.
Key Features
- 12V 314Ah LiFePO4 lithium battery (3840Wh / 3.84kWh) — Flagship capacity for high-demand residential and professional applications
- Built-in Bluetooth monitoring — Track SOC, voltage, current, and cell health from your phone, no extra hardware needed
- Integrated 200A BMS with 760A short circuit protection — Heavy-duty protection for high-current installations
- IP65-rated ABS casing — Fully dust-tight and water jet resistant for demanding environments
- 200A continuous / 210A peak discharge — Handles high-surge loads including large inverters and compressors
- M8 / M6 terminal configuration — Secure, low-resistance connections
- Scalable system design (4S4NP) — Expand to 24V or 48V banks for larger off-grid systems
- CE, UN38.3, IEC62133 certified — Internationally compliant and transport-approved
Electrical Characteristics
| Specification | Value |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 314Ah |
| Energy | 3840Wh (3.84kWh) |
| Internal Resistance | ≤30mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | ≤3.5% per month |
| Max Modules | 4S4NP |
Charging Specifications
| Specification | Value |
|---|---|
| Recommended Charge Voltage | 14.2V – 14.6V |
| Recommended Charge Current | 50A – 150A |
| Maximum Charge Current | 157A |
| BMS Charge Cut-off | 14.6V |
Discharge Specifications
| Specification | Value |
|---|---|
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 210A (≤10s) |
| BMS Discharge Current Cut-off | 760A ±120A [300±200ms] |
| Discharge Cut-off Voltage | 10V |
Environmental Specifications
| Specification | Value |
|---|---|
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -5°C to 35°C |
| Protection Rating | IP65 |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Type | LFP (Lithium Iron Phosphate) — Prismatic |
| Casing | ABS |
| Dimensions (L × W × H) | 483 × 170 × 240mm |
| Weight | 32 kg |
| Terminal Type | M8 / M6 |
| Configuration | 4S1P |
| Connectivity | Bluetooth |
What's in the Box
- 1 × Lithtech 12V 314Ah LiFePO4 Battery with Bluetooth (TE12314B)
- 1 × User Manual
- 1 × M8/M6 Terminal Hardware Set
Why Choose This Battery?
The Lithtech 12V 314Ah LiFePO4 with Bluetooth is designed for users who demand the most from their energy storage system. With nearly 4kWh in a single unit, built-in monitoring, and a heavy-duty BMS capable of protecting 200A continuous loads, it's the ideal choice for serious off-grid, solar, and backup installations where reliability and visibility matter.
