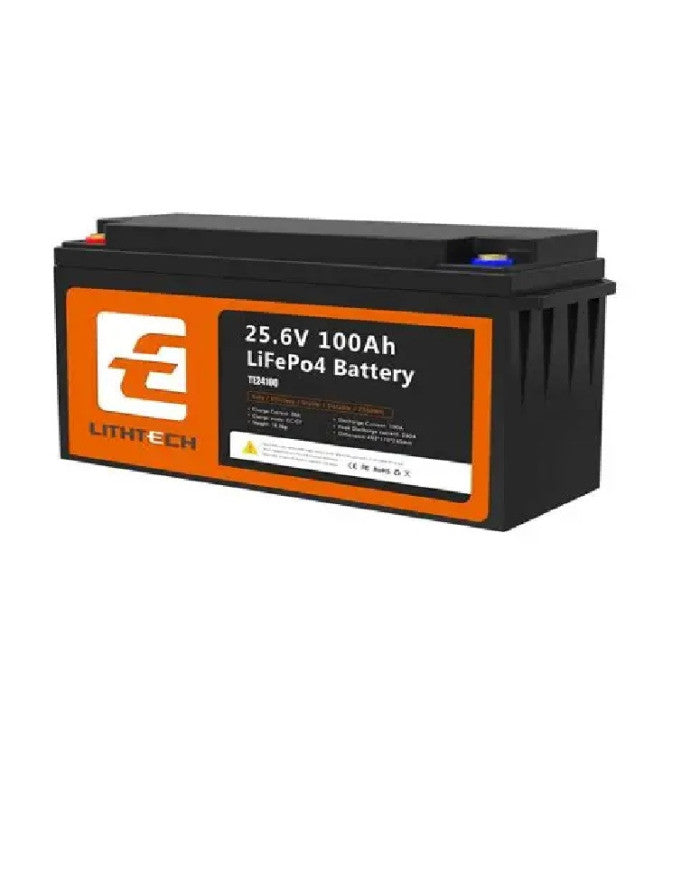

Lithtech 24V 100Ah Bluetooth Smart LiFePO4 Battery
Lithtech 24V 100Ah Bluetooth Smart LiFePO4 Battery
Couldn't load pickup availability
The Lithtech 24V 100Ah LiFePO4 Battery is a high-efficiency lithium iron phosphate battery engineered for 24V solar systems, backup power installations, marine applications, and off-grid setups. Running at a nominal 25.6V, it is the natural companion for 24V inverters and MPPT charge controllers — delivering higher power transfer at lower current compared to equivalent 12V systems, which means reduced cable losses and a more efficient overall installation.
Built with an IP55-rated ABS housing, this battery handles dust and moisture for reliable performance in garage installs, battery rooms, and enclosed outdoor enclosures. With a 100Ah capacity (2560Wh) and a compact 8S1P cell configuration, it delivers stable, long-cycle energy storage with the same 99% efficiency found across the Lithtech range.
Equipped with an integrated 100A BMS and 300A peak short circuit protection, the TE24100 provides comprehensive protection against overcharge, over-discharge, short circuit, and excessive current. The battery supports a 2S2NP configuration, allowing two units to be stacked into a 48V system — making it an excellent starting point for a scalable solar storage bank.
Key Features
- 24V 100Ah LiFePO4 lithium battery (2560Wh) — Ideal for 24V inverter and MPPT solar systems
- 25.6V nominal voltage — Optimised for higher-voltage system efficiency with reduced cable losses
- Integrated 100A BMS with 300A short circuit protection — Full protection for safe, reliable long-term operation
- IP55-rated ABS casing — Dust and splash resistant for real-world installation environments
- 99% round-trip efficiency — Maximise every kWh harvested from your solar panels
- M8 / M6 terminal configuration — Secure, high-current connections
- Scalable system design (2S2NP) — Stack two units in series for a 48V / 5.12kWh bank
- CE, UN38.3, IEC62133 certified — Internationally compliant and transport-approved
Electrical Characteristics
| Specification | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Internal Resistance | ≤30mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | ≤3.5% per month |
| Max Modules | 2S2NP |
Charging Specifications
| Specification | Value |
|---|---|
| Recommended Charge Voltage | 28.4V – 29.2V |
| Recommended Charge Current | 10A – 50A |
| Maximum Charge Current | 100A |
| BMS Charge Cut-off | 29.2V |
Discharge Specifications
| Specification | Value |
|---|---|
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 130A ±10A (≤10s) |
| BMS Discharge Current Cut-off | 300A ±50A [500~400ms] |
| Discharge Cut-off Voltage | 20V |
Environmental Specifications
| Specification | Value |
|---|---|
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -5°C to 35°C |
| Protection Rating | IP55 |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Type | LFP (Lithium Iron Phosphate) — Prismatic |
| Casing | ABS |
| Dimensions (L × W × H) | 483 × 170 × 240mm |
| Weight | 22 kg |
| Terminal Type | M8 / M6 |
| Configuration | 8S1P |
What's in the Box
- 1 × Lithtech 24V 100Ah LiFePO4 Battery (TE24100)
- 1 × User Manual
- 1 × M8/M6 Terminal Hardware Set
Why Choose This Battery?
The Lithtech 24V 100Ah LiFePO4 is designed for users building efficient 24V or scalable 48V energy systems. Compared to 12V alternatives, it reduces wiring losses and simplifies system design for mid-range solar and backup installations. Its expandable 2S2NP configuration means it grows with your system — making it a smart long-term investment for both residential and professional use.
