Lithtech 24V 200Ah Bluetooth Smart LiFePO4 Battery
Lithtech 24V 200Ah Bluetooth Smart LiFePO4 Battery
Couldn't load pickup availability

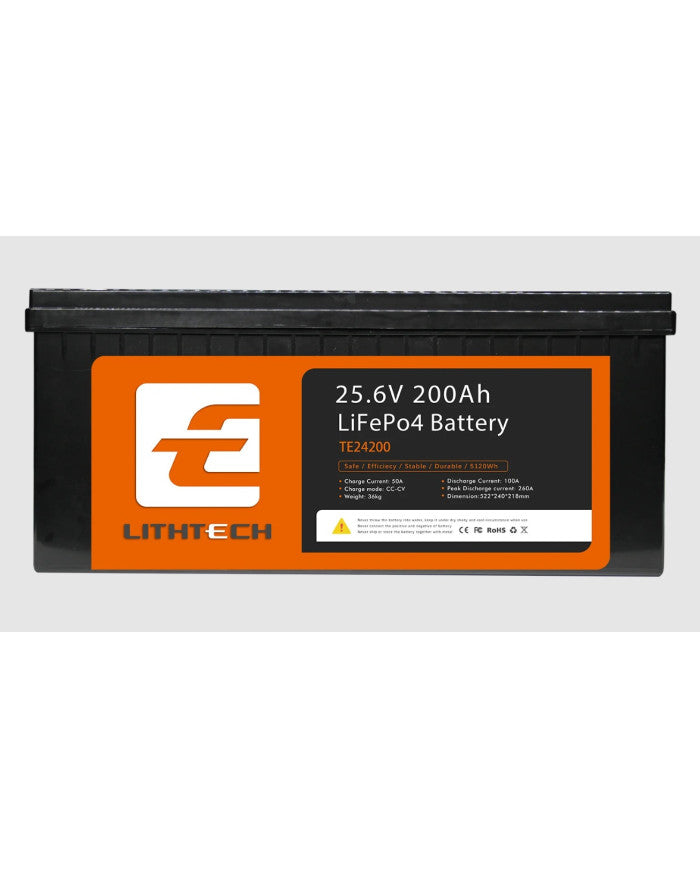

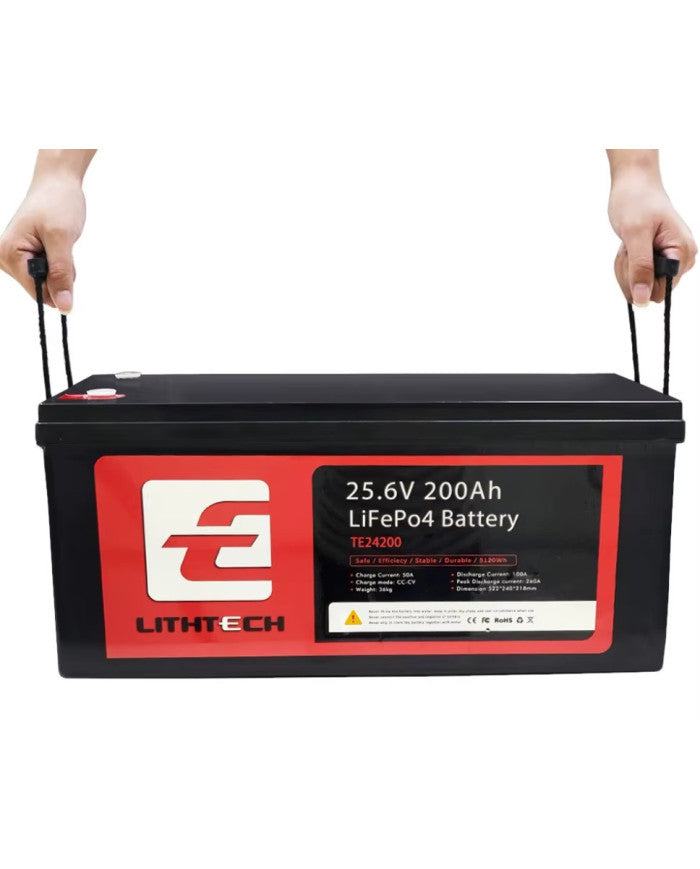

The Lithtech 24V 200Ah LiFePO4 Battery is a premium, high-capacity lithium iron phosphate battery designed for serious energy storage — whole-home solar backup, large off-grid installations, and commercial applications where energy independence is the priority. Delivering 5120Wh (5.12kWh) from a single unit, it is one of the most capable batteries in the Lithtech range and a genuine anchor for high-performance 24V and 48V energy systems.
Built with a robust IP55-rated ABS housing, this battery is engineered for permanent installation in dedicated battery rooms, secure enclosures, and demanding site environments. At 25.6V nominal with a 100A continuous discharge rating, the TE24200 moves serious power while keeping current levels manageable — reducing heat, cable losses, and component stress throughout your system. The 8S2P prismatic cell architecture delivers both the capacity and the current resilience to handle demanding charge and discharge cycles over thousands of cycles.
Equipped with an integrated 100A BMS and 300A peak short circuit protection, the TE24200 provides comprehensive, automatic protection against overcharge, over-discharge, short circuit, and excessive current. Its 2S2NP expandability allows two units to be stacked into a 48V, 10.24kWh bank — a powerful foundation for households and businesses aiming for meaningful load independence.
Key Features
- 24V 200Ah LiFePO4 lithium battery (5120Wh / 5.12kWh) — Flagship energy capacity for whole-home and commercial backup applications
- 25.6V nominal voltage — Optimised for 24V and 48V system architectures with lower cable losses
- Integrated 100A BMS with 300A peak short circuit protection — Intelligent, multi-layer protection for safe long-term operation
- IP55-rated ABS casing — Dust and splash resistant for permanent battery room and enclosure installs
- 130A peak discharge burst — Handles startup surges from large inverters and high-draw loads
- 99% round-trip efficiency — Industry-leading efficiency to maximise your solar harvest
- M8 / M6 terminal configuration — Heavy-duty, secure connections for high-current systems
- Scalable system design (2S2NP) — Stack two units in series for a 48V / 10.24kWh bank
- CE, UN38.3, IEC62133 certified — Internationally compliant and transport-approved
Electrical Characteristics
| Specification | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Energy | 5120Wh (5.12kWh) |
| Internal Resistance | ≤30mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | ≤3.5% per month |
| Max Modules | 2S2NP |
Charging Specifications
| Specification | Value |
|---|---|
| Recommended Charge Voltage | 28.4V – 29.2V |
| Recommended Charge Current | 20A – 100A |
| Maximum Charge Current | 100A |
| BMS Charge Cut-off | 29.2V |
Discharge Specifications
| Specification | Value |
|---|---|
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 130A ±10A (≤10s) |
| BMS Discharge Current Cut-off | 300A ±50A [500~400ms] |
| Discharge Cut-off Voltage | 20V |
Environmental Specifications
| Specification | Value |
|---|---|
| Charge Temperature | 0°C to 55°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -5°C to 35°C |
| Protection Rating | IP55 |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Type | LFP (Lithium Iron Phosphate) — Prismatic |
| Casing | ABS |
| Dimensions (L × W × H) | 520 × 269 × 220mm |
| Weight | 36 kg |
| Terminal Type | M8 / M6 |
| Configuration | 8S2P |
What's in the Box
- 1 × Lithtech 24V 200Ah LiFePO4 Battery (TE24200)
- 1 × User Manual
- 1 × M8/M6 Terminal Hardware Set
Why Choose This Battery?
The Lithtech 24V 200Ah LiFePO4 is built for users who are serious about energy independence. With 5.12kWh of storage in a single unit and the ability to scale to a 48V / 10.24kWh bank, it delivers the capacity and reliability needed for whole-home backup and large off-grid systems. Compared to lead-acid alternatives, it offers significantly better usable capacity, longer cycle life, and zero maintenance — a sound long-term investment for any high-demand energy application.
