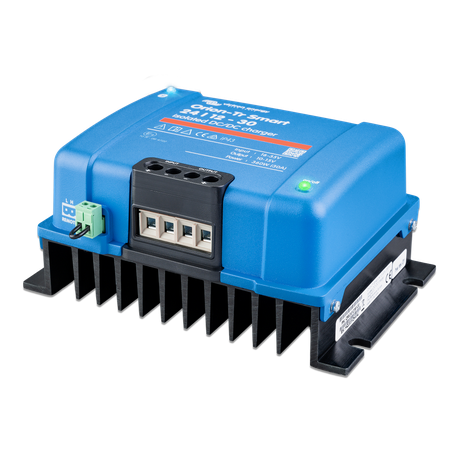

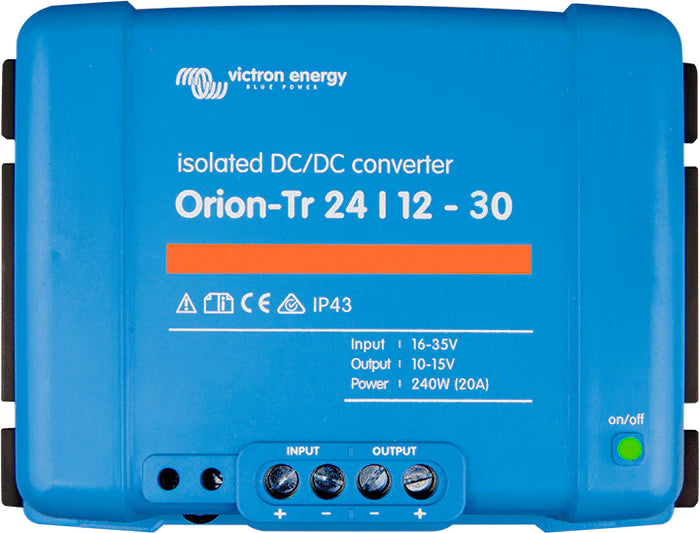

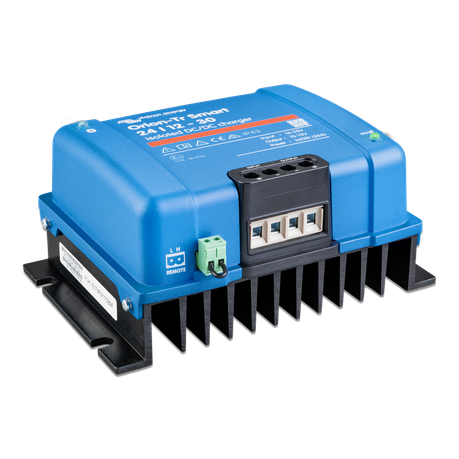

Victron Orion-Tr 24/12-30A (360W) Isolated DC-DC converter

The Victron Orion-Tr 24/12-30A Isolated DC-DC Converter is a high-quality, professional DC-DC power solution designed to reliably convert 24V DC to 12V DC. It is ideal for charging a 12V starter or accessory battery from a 24V system, or for powering sensitive 12V equipment in automotive, marine, and off-grid applications.

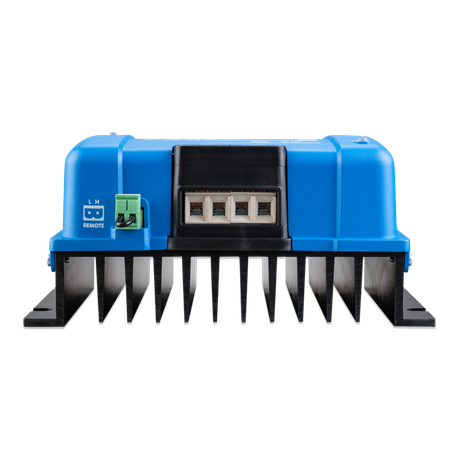

The remote on/off function eliminates the need for a high-current switch in the input wiring. It can be controlled using a low-power switch or integrated with systems such as an engine run/stop switch. The adjustable output voltage allows the unit to function as a dedicated battery charger when required.

All Orion-Tr models are short-circuit proof and can be connected in parallel, allowing unlimited units to be combined to increase output current. With IP43 protection (when installed with terminals facing downwards) and durable screw terminals, installation is simple and reliable without the need for special tools.

Key Features

• 24V to 12V DC conversion with 30A output (360W)

• Isolated DC-DC converter for safe and stable power delivery

• Remote on/off control using a low-power switch or engine signal

• Adjustable output voltage, suitable for battery charging

• Short-circuit proof design for maximum protection

• Parallel operation supported to increase output current

• IP43 rated when installed with screw terminals facing downward

• Screw terminals for easy, tool-free installation

• Built-in input fuse on 12V and 24V input models

Ideal Applications

• Charging a 12V battery from a 24V system

• Automotive, RV, caravan, and marine electrical systems

• Off-grid and industrial DC power installations

• Powering 12V accessories from 24V battery banks
