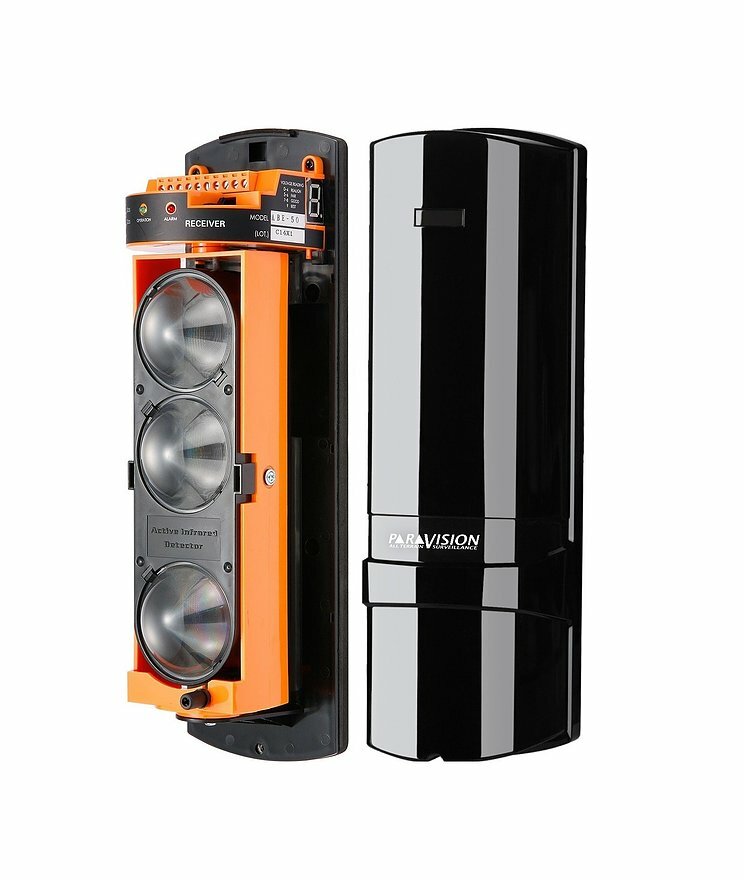

Paravision ABE-100 - Infrared Barrier with 3 line beam 100 meters
Paravision ABE-100 - Infrared Barrier with 3 line beam 100 meters
Couldn't load pickup availability
Paravision ABE-100 is a Infrared Barrier with 3 line beam 100 meters.
Features:
Precision optical focusing lens technology and bus control technology
Outdoor double beam gain self-regulation, adaptable to terrible weather such as rain fog and snow weather
Single and dual beam models with ranges up to 250'
Special filter lens and circuit, anti-strong light jamming
Suitable for outdoor installations
Lightning proof circuit design
Easy alignment features reduce installation time
High-power infrared receiver on the tube, low-power digital frequency processing technology
Horizontal/vertical optical angle can be easy to adjust
Technical parameters:
|
Model: |
ABE-100 |
||||
|
Distance(outdoor) |
100m |
||||
|
Distance(indoor) |
300m |
||||
|
Detection method |
Simultaneous interruption of 3 infrared beams |
||||
|
Response speed |
50-700msec |
||||
|
Number of beams |
3 beams |
||||
|
Alarm output |
Switch signal output(NO/NC) |
||||
|
Power and Voltage |
DC12~24V ; AC11-18V |
||||
|
Current consumption |
100mAMax. |
||||
|
Humidity |
95% MAX |
||||
|
Tamper |
NC. 1B contact output,DC30V/0.5AMax. |
||||
|
Exterior dimension |
90mm x 100mm x 270mm |
||||
|
Weight |
1.9kg |
||||
