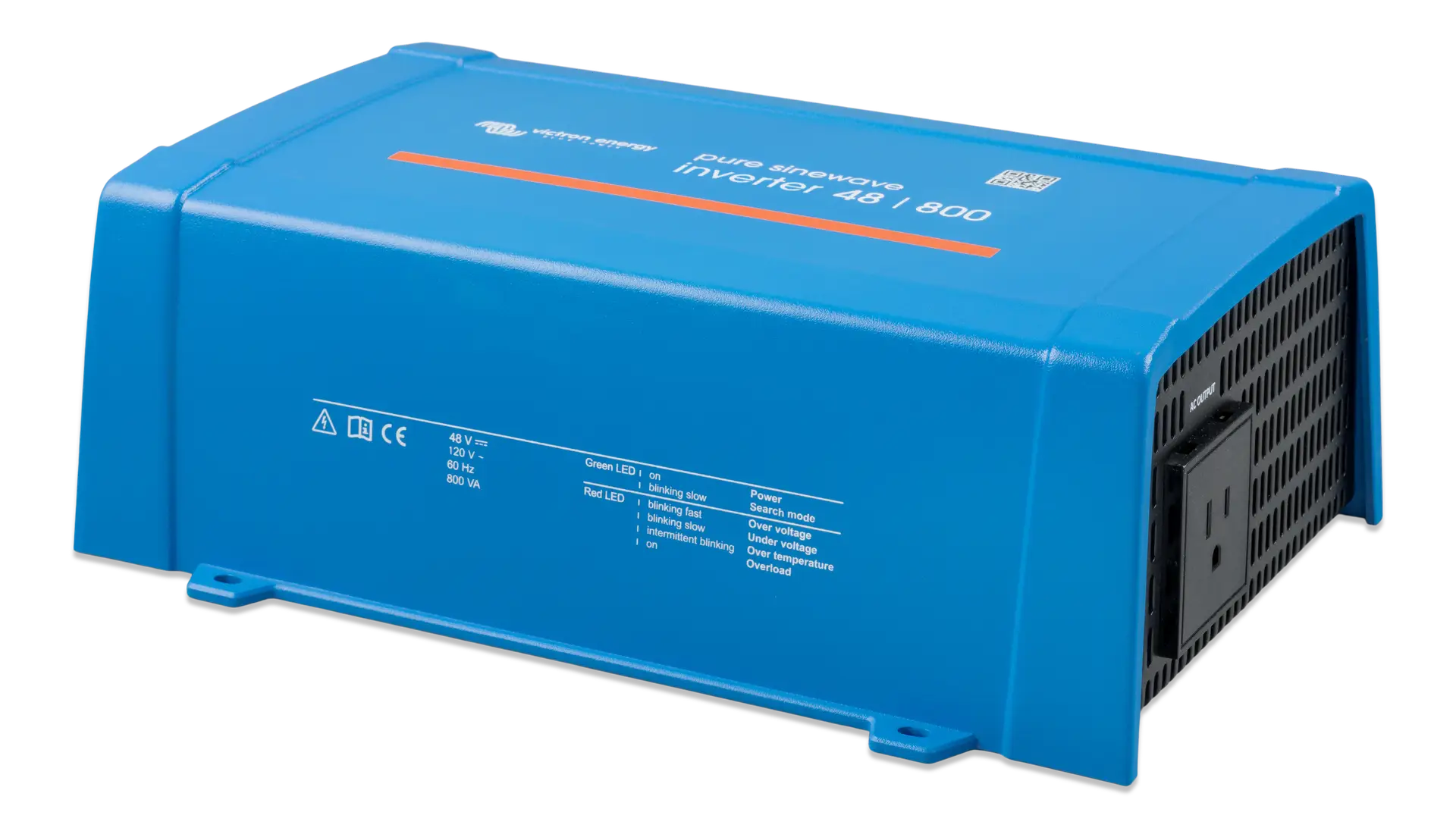

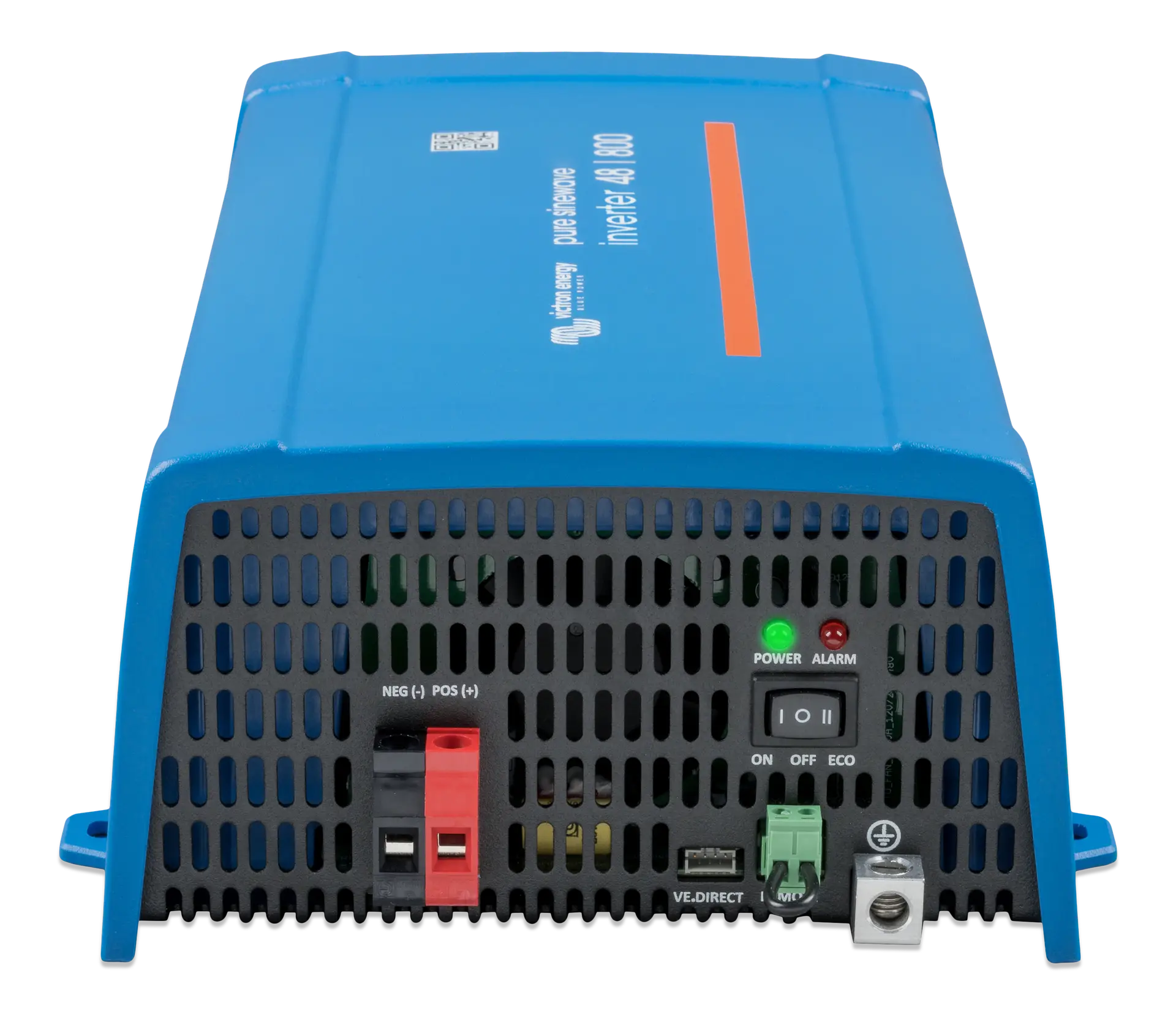

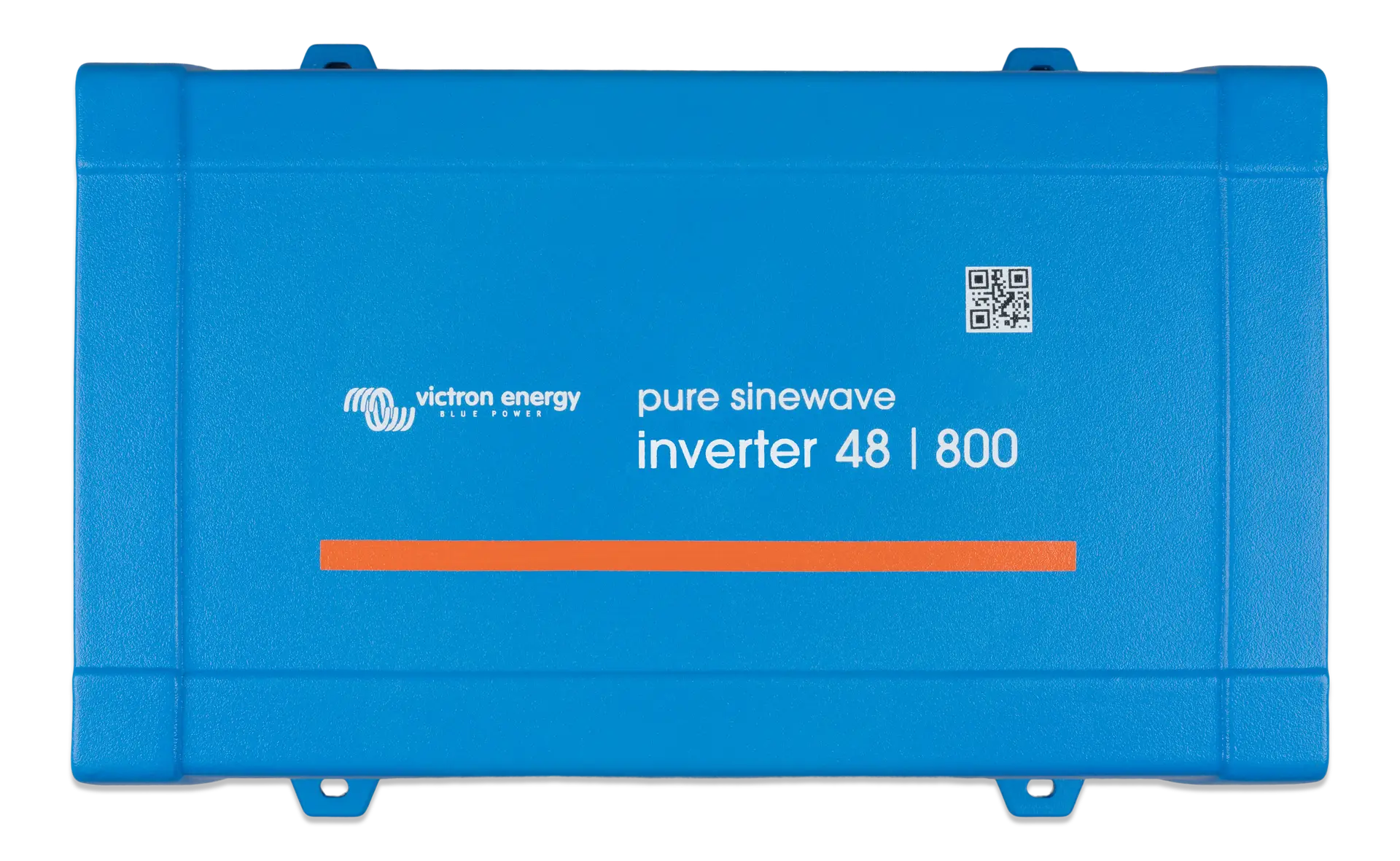

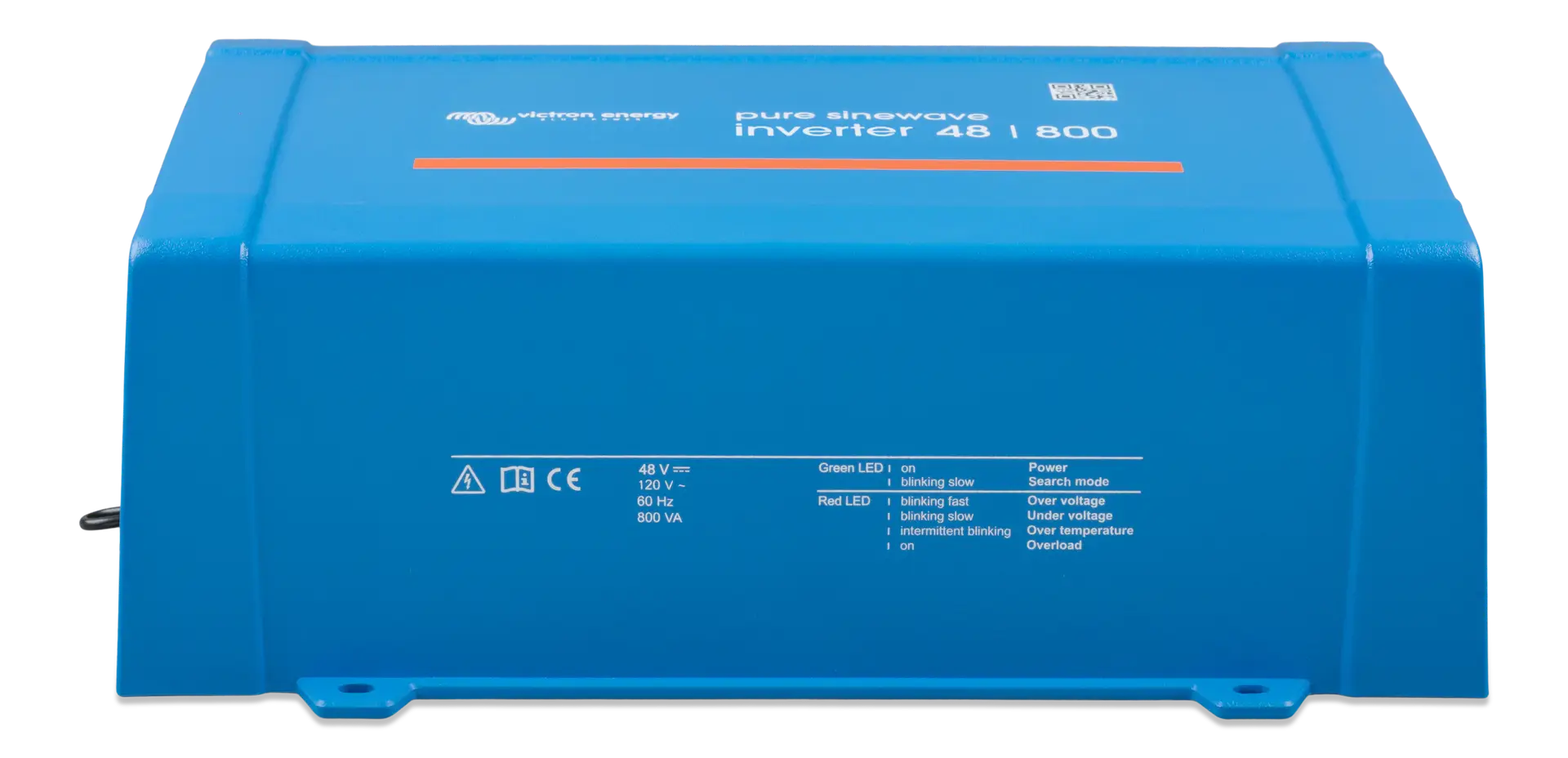

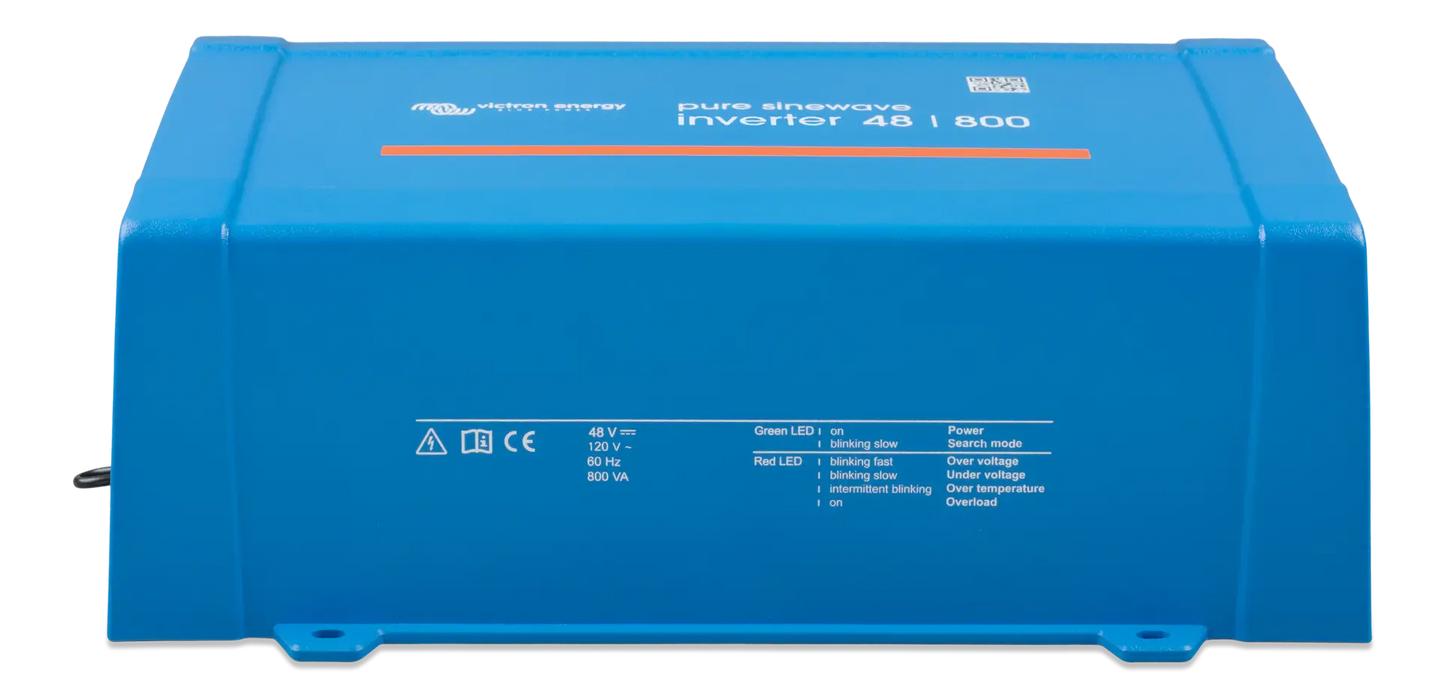

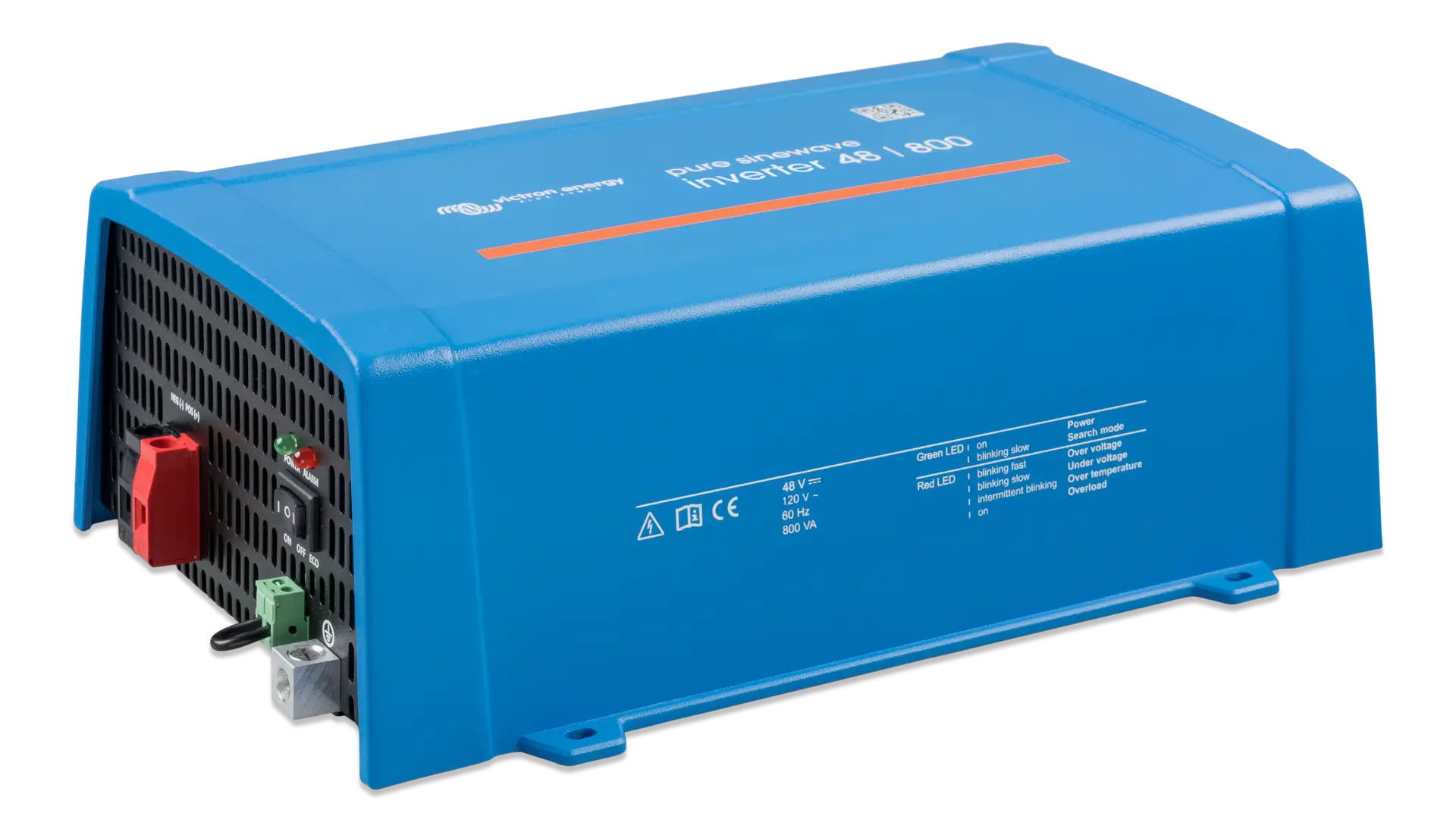

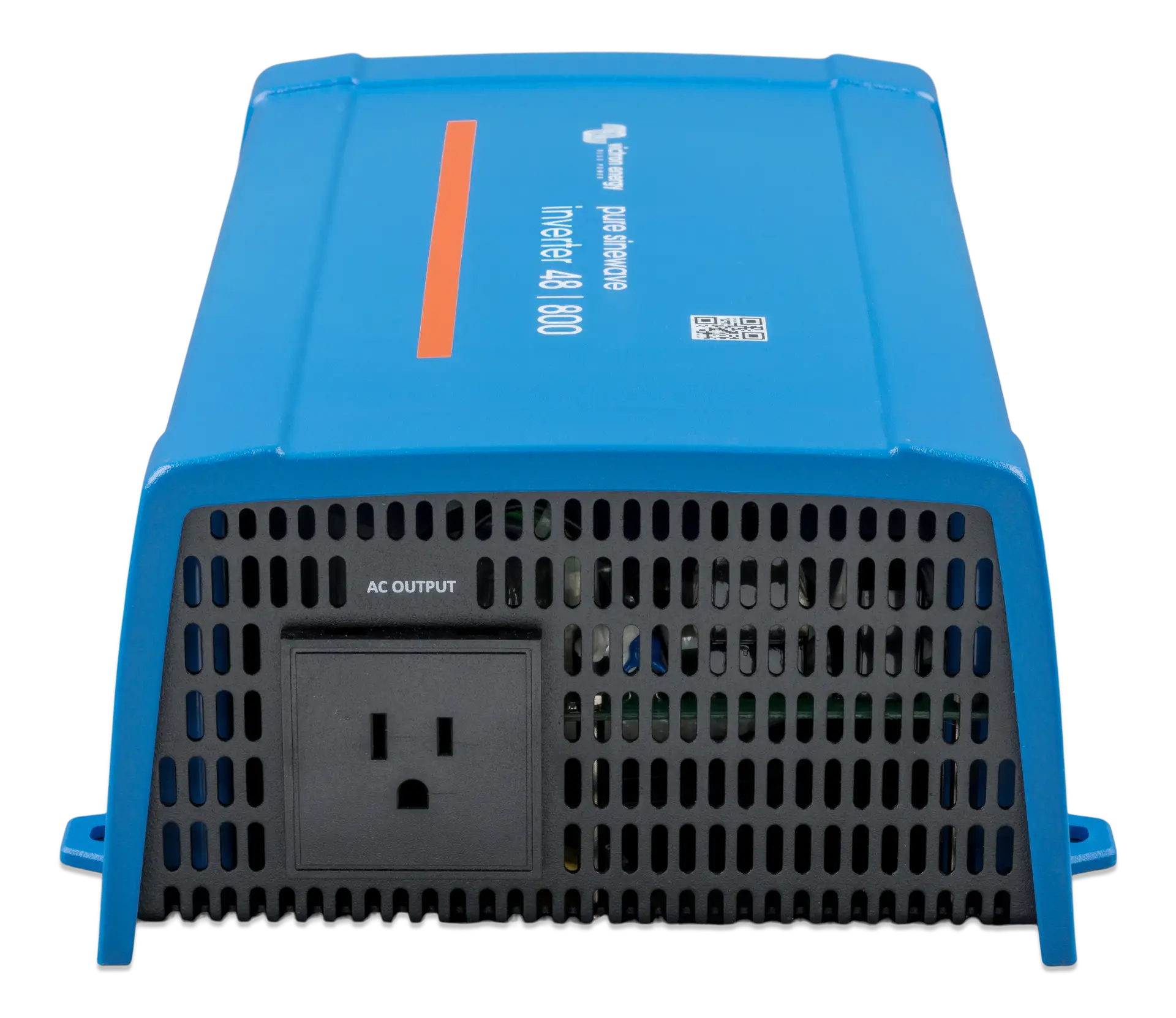

Victron Phoenix Inverter 48/800 230V VE.Direct IEC

The Victron Phoenix Inverter 48/800 230V VE.Direct IEC is a high-performance pure sine wave inverter designed to convert 48V DC battery power into stable 230V AC electricity. Ideal for 48V solar systems, backup power installations, telecom environments, caravans, and off-grid applications, this inverter delivers clean and reliable power for both sensitive electronics and higher-demand loads.

Built using Victron’s proven full bridge plus toroidal transformer topology, the Phoenix inverter offers exceptional reliability, efficiency, and surge capability. The unit is short-circuit proof and protected against overload and overheating, even when operating in high ambient temperatures or under sustained heavy loads.

With high start-up power, the Phoenix 48/800 easily handles demanding loads such as LED drivers, halogen lamps, compressors, and power tool chargers. The intelligent Eco Mode improves battery efficiency by switching the inverter to standby when the load drops below a preset threshold, automatically reactivating when demand increases.

The integrated VE.Direct communication port enables monitoring and configuration via Victron monitoring devices and software. Remote on/off functionality allows seamless system integration, while LED diagnostic indicators provide clear visual feedback on operating status and fault conditions.

For applications requiring uninterrupted power, the inverter can be paired with the Victron Filax Automatic Transfer Switch, enabling ultra-fast load transfer (under 20 milliseconds) between inverter power and an external AC source — ensuring seamless operation for computers and other sensitive electronic equipment.

Key Features

• Victron Phoenix series inverter with proven long-term reliability

• Pure sine wave output – safe for sensitive electronics

• 48V DC to 230V AC power conversion

• 800VA inverter with high surge capability

• Continuous power: 650W at 25°C / 560W at 40°C

• 1500W peak power for high start-up loads

• VE.Direct communication interface

• Eco Mode for reduced battery consumption

• Short-circuit, overload, and over-temperature protection

• Remote on/off control capability

• LED diagnostic indicators

• IEC AC output socket

• Compatible with Victron Filax Automatic Transfer Switch

Technical Specifications

• DC Input Voltage: 48V DC

• AC Output Voltage: 230V AC

• Rated Power: 800VA

• Continuous Power: 650W (25°C) / 560W (40°C)

• Peak Power: 1500W

• Waveform: Pure Sine Wave

• Eco Mode Minimum Load: 15W

• Communication: VE.Direct

• AC Connection: IEC Output
