Victron Smart Battery Sense

Enhance battery charging efficiency and prolong battery life with the Victron Smart Battery Sense. This wireless battery voltage and temperature sensor is designed for Victron SmartSolar MPPT Solar Chargers, or can function as a standalone monitor for any 12V, 24V, or 48V battery bank.

⚡ Key Features

• Wireless Connectivity – Uses VE.Smart Network, a Bluetooth Smart technology, to communicate with one or more solar chargers, eliminating the need for complicated wiring.

• Accurate Voltage & Temperature Monitoring – Measures voltage directly at the battery terminals to compensate for cable resistance and ensures optimal charging voltages.

• Battery-Specific Adjustments:

  • Lead Batteries: Adjusts charge voltage based on temperature (higher for cold, lower for hot).

  • Lithium Batteries: Prevents charging at near-freezing temperatures to avoid permanent cell damage.

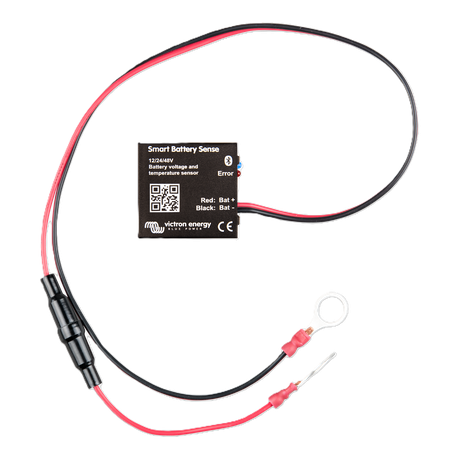

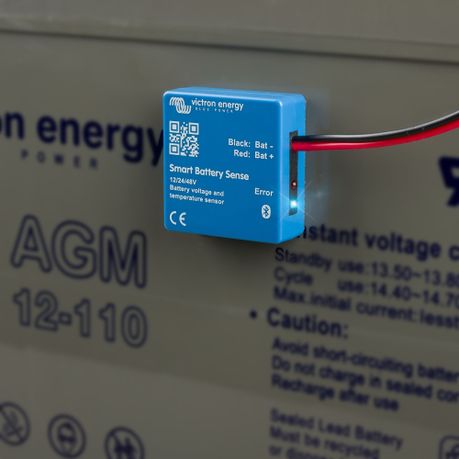

• Simple Installation – Connect the two eyelets to your battery terminals and attach the sensor to the battery body using the self-adhesive strip.

• Multi-Device Support – One Smart Battery Sense unit can provide information to multiple solar chargers on the same battery bank.

🔧 Specifications

• Dimensions (HxWxD): 14 x 38 x 38 mm

• Cable Length: 3 m

• Eyelet Hole Size: 10 mm (M10)

• Fuse Rating: T1A 250V

• Operating Temperature: -10°C to +60°C

• Operating Voltage: 12/24/48 V (Max 48 V)

• Bluetooth Frequency: 2402–2480 MHz

• Bluetooth Power: -4 dBm

📦 What’s in the Box

• 1 x Smart Battery Sense

💡 Perfect For

• Victron SmartSolar MPPT Solar Charger systems

• Off-grid solar setups, RVs, boats, and battery banks

• Users wanting optimized battery charging, longer battery life, and simple wireless monitoring
