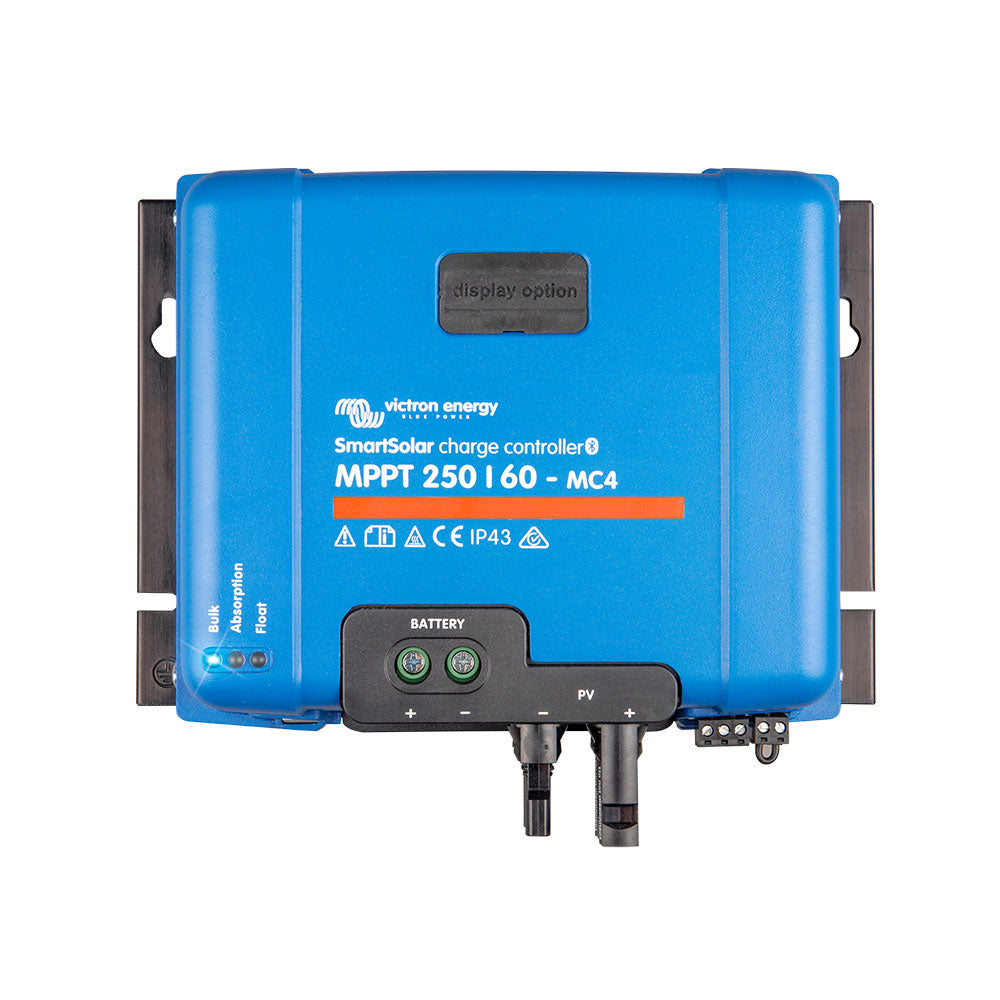

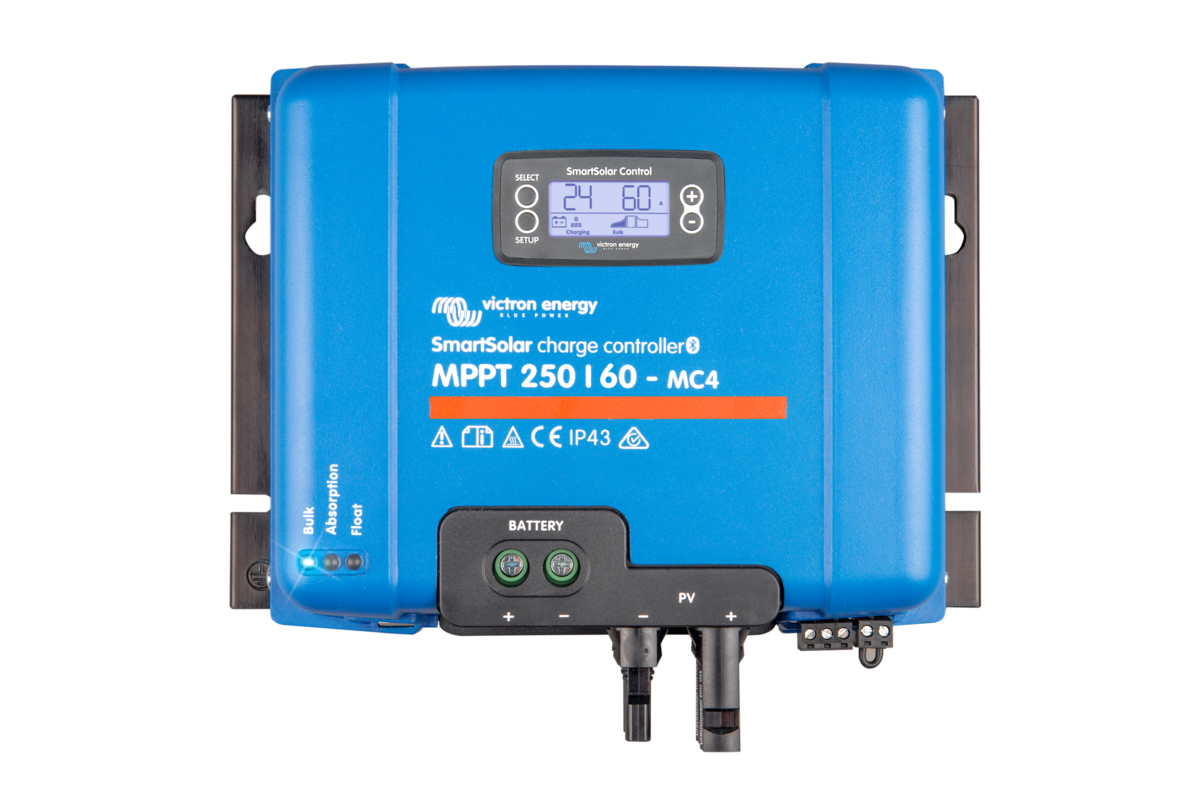

Victron SmartSolar MPPT 250/60-MC4 12/24/36/48V – 60A

The Victron SmartSolar MPPT 250/60-MC4 is a high-performance solar charge controller designed to maximize energy harvest from your solar panels. With built-in Bluetooth, you can easily set up, monitor, and update the controller using Apple or Android devices. Its ultra-fast MPPT technology ensures optimal energy extraction, even in rapidly changing light conditions. Advanced features such as Battery Life intelligent management and load output protection help maintain battery health and longevity.

Key Features & Benefits

• Built-in Bluetooth Smart: Wireless setup, monitoring, and firmware updates via VictronConnect

• VE.Direct Port: For wired connection to Color Control panel, PC, or other devices

• Ultra-Fast MPPT: Maximizes energy harvest under partial shading and clouded skies

• Battery Life Algorithm: Prevents battery degradation by ensuring near-full recharge weekly

• Load Output: Protects batteries from over-discharge; short-circuit proof

• Flexible Battery Compatibility: 12 / 24 / 36 / 48 V auto-select

• High Efficiency: Up to 98% conversion efficiency

• Robust Design: Lightweight (3.6 kg) and built for long-term off-grid or grid-tied solar systems

Specifications

• Rated Charge Current: 60 A

• Max DC Power: 3,168 W

• Max Input Voltage: 250 V

• DC Startup / Shutdown Voltage: 49 V

• Max DC Inputs: 6

• Connector Type: MC4

• MPPT Quantity: 1

What’s in the Box

• 1 × SmartSolar MPPT 250/60-MC4 12/24/36/48V – 60A
