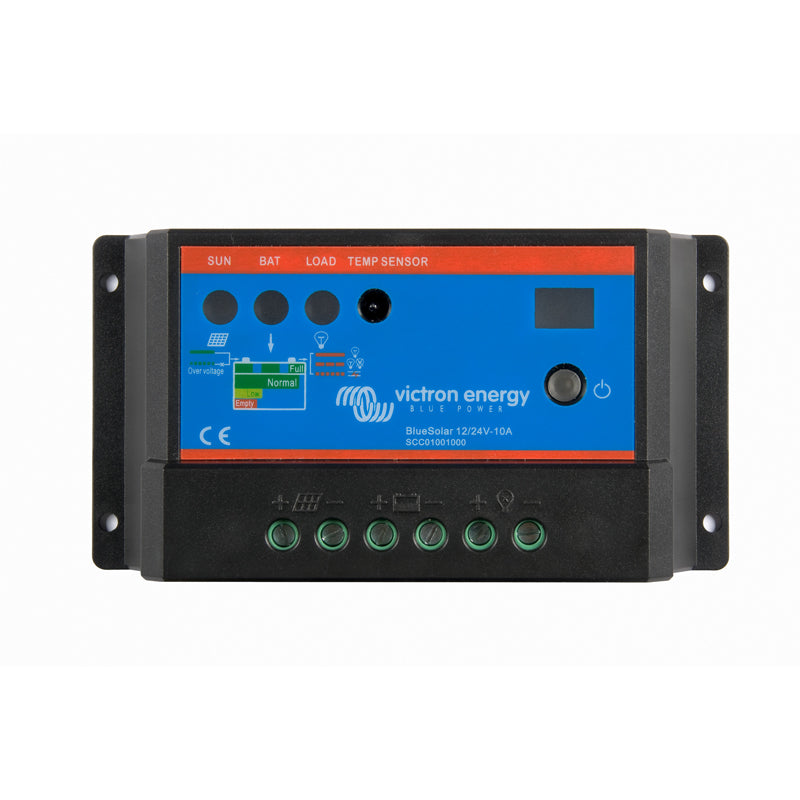

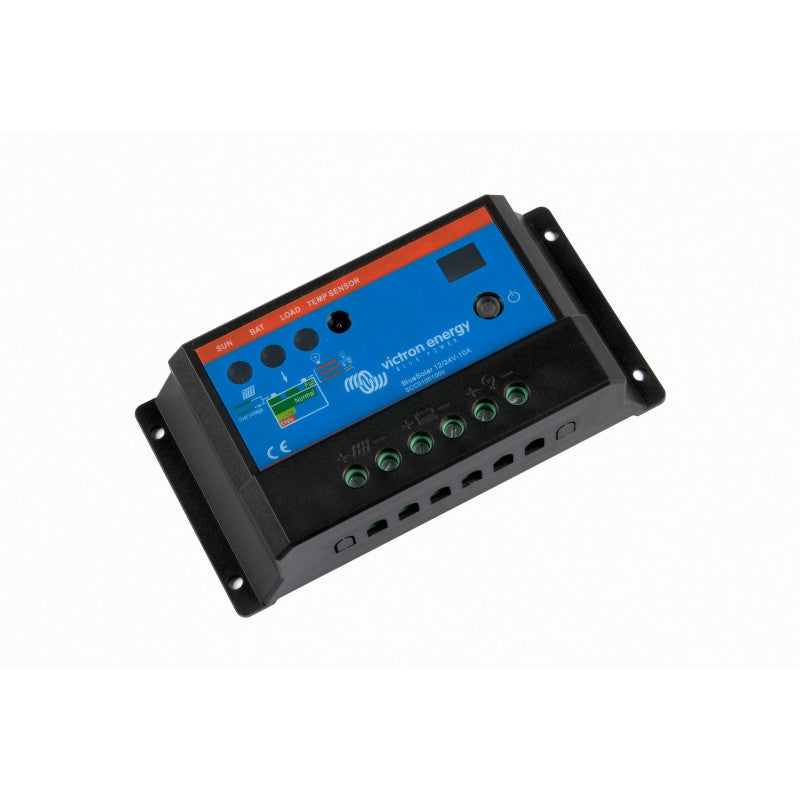

Victron BlueSolar PWM-Light Charge Controller 12/24V – 10A

The Victron BlueSolar PWM-Light 10A is a reliable solar charge controller designed for small solar systems. It regulates battery charging to ensure optimal performance while preventing overcharging, extending battery life. Ideal for off-grid solar installations, this controller features automatic load disconnect, timer-controlled lighting outputs, and simple, intuitive digital displays for easy configuration.

Key Features & Benefits

• Battery Voltage: 12/24 V, automatic system voltage detection

• Rated Charge Current: 10 A

• Automatic Load Disconnect: Protects batteries from over-discharge

• Lighting Control: Timer-enabled load output for lights

• Three-Stage Battery Charging: Bulk, absorption, float (pre-programmed, non-adjustable)

• Electronic Protection: Overload, short circuit, and reverse polarity protection

• Easy Configuration: Two-digit, seven-segment display for timer and load settings

Applications

• Small off-grid solar systems

• Battery-powered lighting circuits

• Protecting batteries from overcharge or deep discharge

What’s in the Box

• 1 × BlueSolar PWM-Light Charge Controller 12/24V – 10A

• 1 × User Guide
