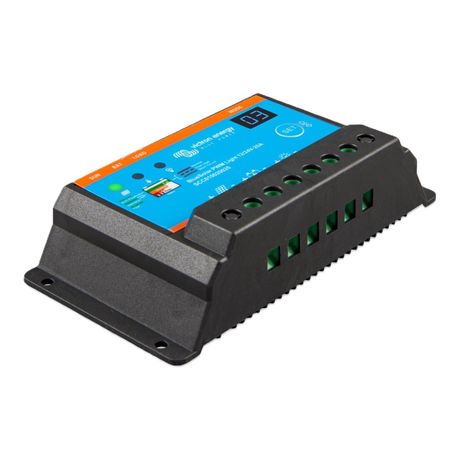

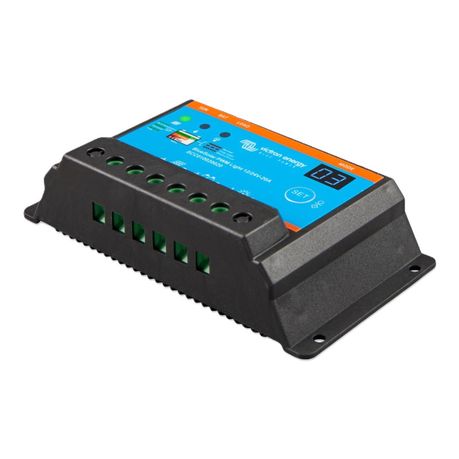

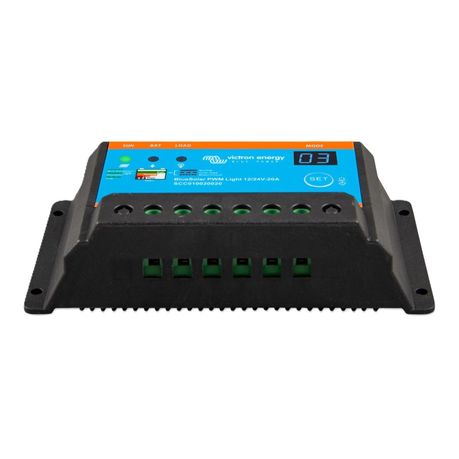

Victron BlueSolar PWM-Light Charge Controller 12/24V – 30A

The Victron BlueSolar PWM-Light 30A is a robust solar charge controller designed for medium-sized off-grid solar systems. It protects your battery from overcharging and over-discharging while providing timer-controlled lighting output. Featuring a two-digit seven-segment display, setup is quick and easy, and the controller supports day/night timing options.

Key Features & Benefits

• Battery Voltage: 12/24 V with automatic detection

• Rated Charge Current: 30 A

• Automatic Load Disconnect: Protects batteries from deep discharge

• Lighting Control Function: Timer-enabled load output for lights

• Three-Stage Battery Charging: Bulk, absorption, float (pre-programmed, non-adjustable)

• Electronic Protection: Overload, short circuit, and reverse polarity protection

• Easy Configuration: Two-digit seven-segment display for timer and load settings

• Day/Night Timing Options: Automatically controls load output based on daylight

Applications

• Medium off-grid solar systems

• Battery-powered lighting circuits

• Protecting batteries from overcharge or deep discharge

What’s in the Box

• 1 × BlueSolar PWM-Light Charge Controller 12/24V – 30A

• 1 × User Guide
