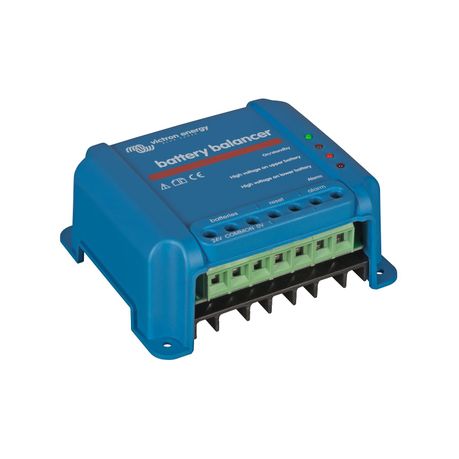

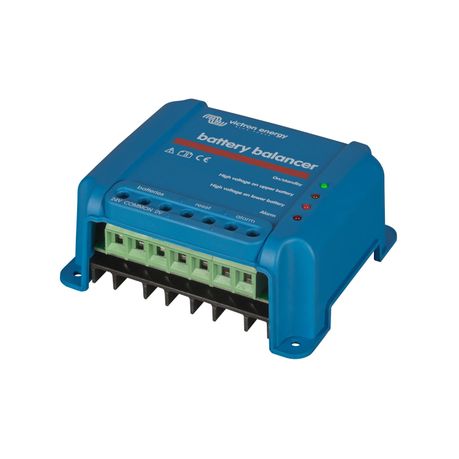

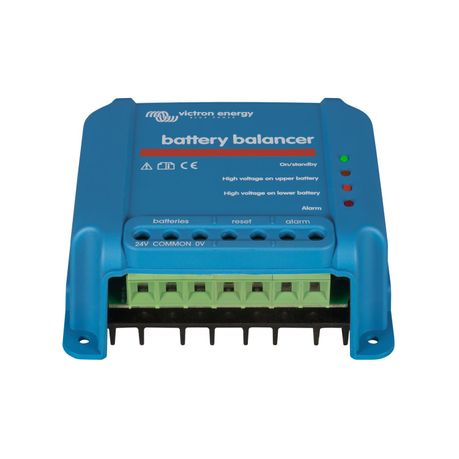

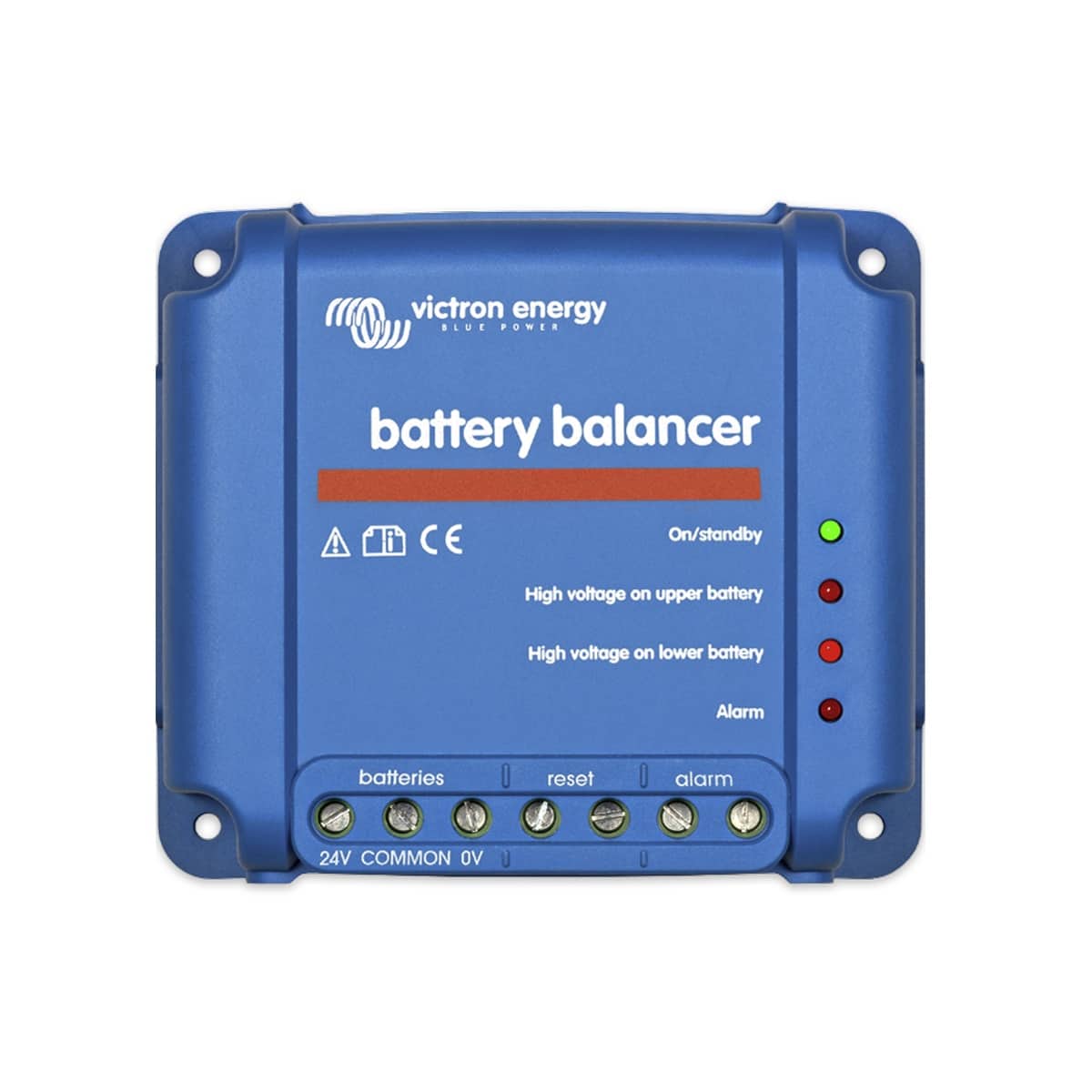

Victron Energy Battery Balancer

The Victron Energy Battery Balancer is designed to optimise the performance and lifespan of 24V battery banks by equalising the state of charge between two series-connected 12V batteries — or between multiple parallel strings of series-connected batteries.

In 24V systems, small voltage differences between batteries can increase over time, leading to premature battery failure. The Victron Battery Balancer automatically corrects these imbalances, protecting your investment and improving system reliability.

Manufactured by Victron Energy, this device is ideal for solar installations, off-grid systems, backup power setups, and industrial battery banks.

🔋 How It Works

When the charge voltage of a 24V system exceeds 27V, the Battery Balancer activates and:

• Continuously monitors the voltage of both 12V batteries

• Identifies voltage imbalance between them

• Draws up to 1A from the higher-voltage battery

• Redirects current to the lower-voltage battery

This controlled balancing process ensures both batteries converge to the same state of charge, preventing overcharging of one battery and undercharging of the other.

🔧 Key Features & Benefits

✔ Automatic Operation

• Activates when system voltage exceeds 27V

• No manual adjustment required

✔ Prevents Battery Damage

• Reduces unequal charging stress

• Minimises sulphation risk

• Extends overall battery lifespan

✔ Improves System Efficiency

• Maintains optimal battery performance

• Prevents capacity loss due to imbalance

• Ideal for 24V solar and inverter systems

✔ Compact & Reliable

• Solid-state design

• Low self-consumption

• Simple integration into existing battery banks

📊 Technical Specifications

• System Voltage: 24V (2 × 12V in series)

• Activation Voltage: > 27V

• Balancing Current: Up to 1A

• Installation: Across two 12V batteries in series

• Protection: Reverse polarity protection

🎯 Ideal Applications

• Solar battery banks

• Off-grid systems

• Backup power systems

• Caravan & marine battery setups

• Industrial 24V battery systems

📦 What’s in the Box

• 1 × Victron Energy Battery Balancer
