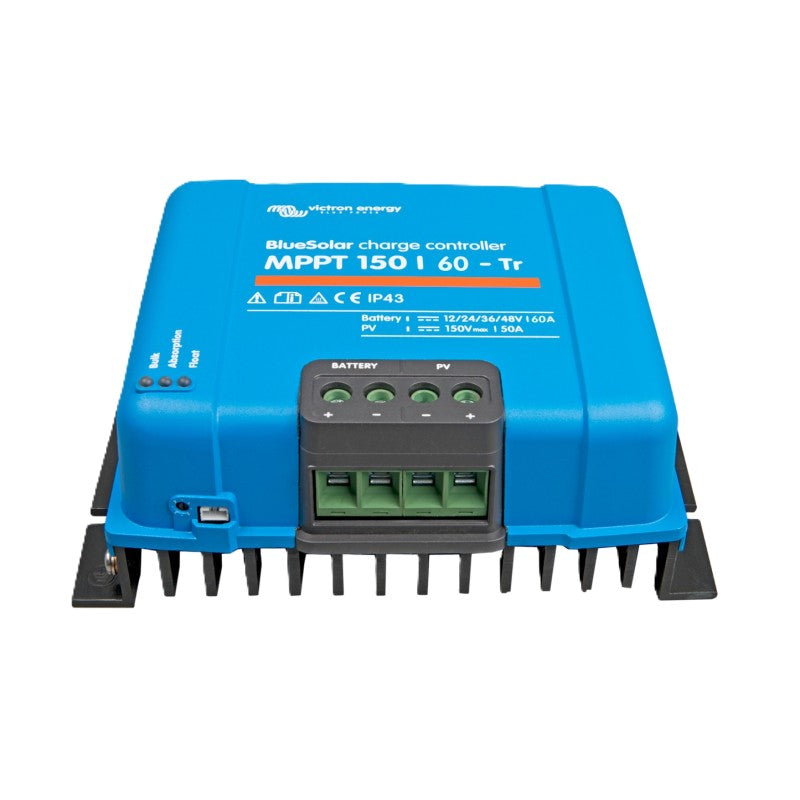

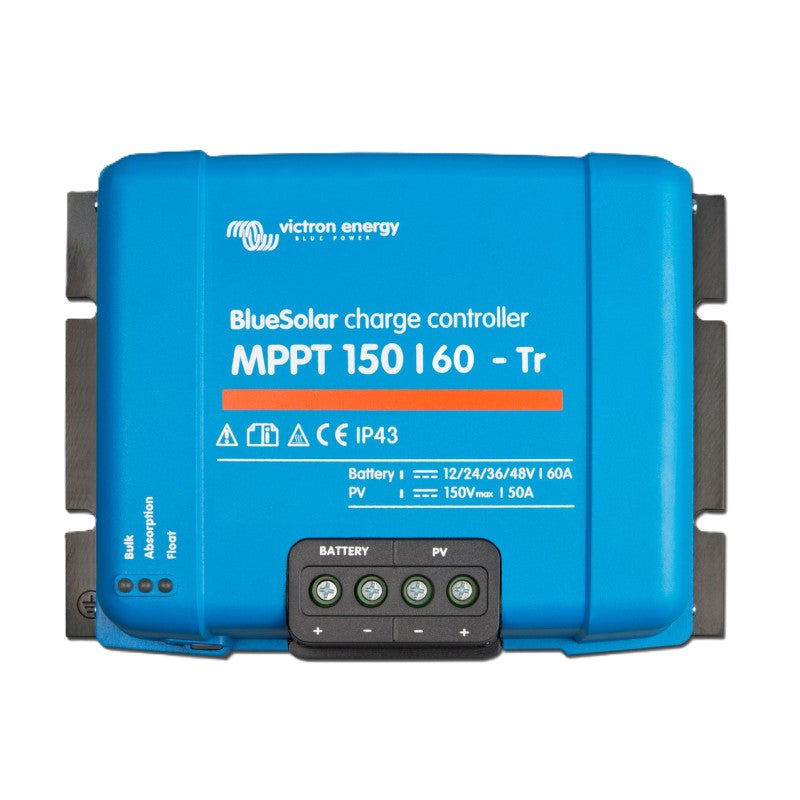

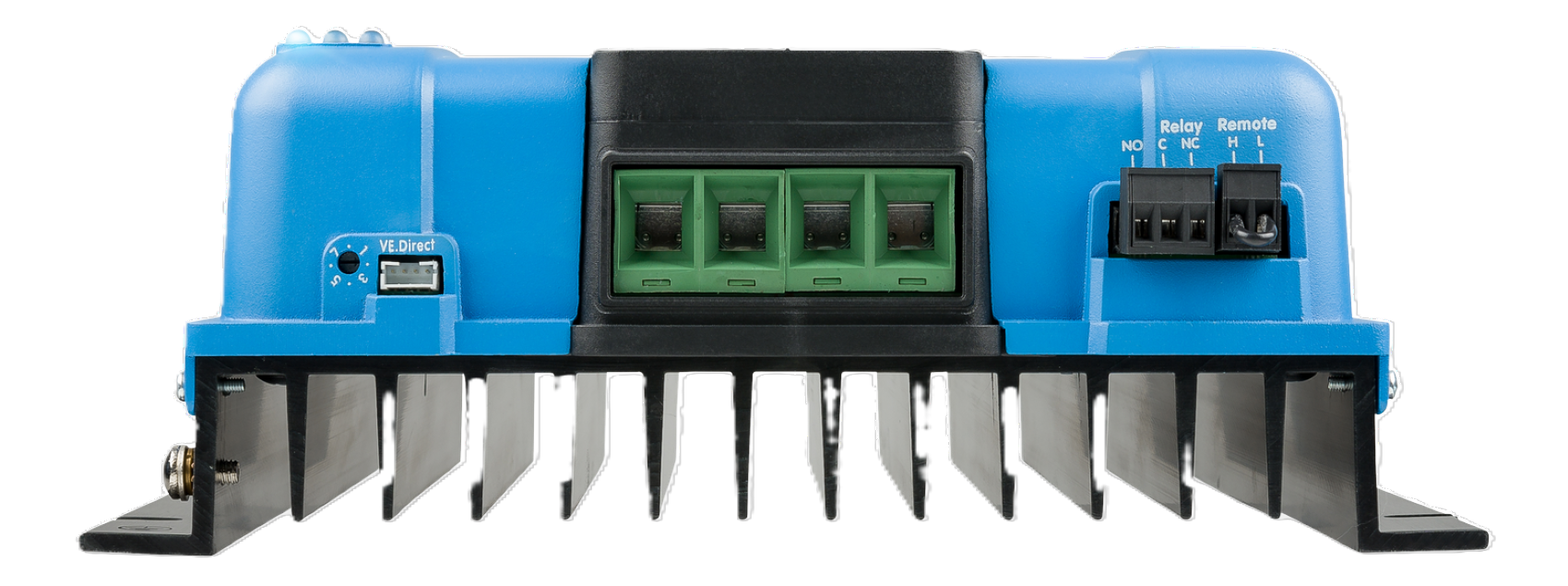

Victron Energy BlueSolar 150/60-Tr MPPT Solar Charge Controller – 12/24/48V

The Victron BlueSolar 150/60-Tr is a high-efficiency MPPT solar charge controller designed to maximize energy harvest from your solar panels while protecting and prolonging battery life. With ultra-fast Maximum Power Point Tracking (MPPT), it extracts every drop of power from your PV array—even under partially cloudy or fluctuating light conditions.

Featuring Bluetooth connectivity and remote monitoring via VictronConnect and VRM Portal, this controller allows full system control locally or from anywhere in the world. Advanced shading detection ensures optimal performance when your panels are partially shaded, while built-in electronic protections safeguard your system.

Key Features & Benefits

• Ultra-Fast MPPT: Maximizes energy harvest and battery charging efficiency.

• Advanced Partial Shading Detection: Locks to the optimal Maximum Power Point (MPP) even with uneven light.

• Bluetooth & Remote Monitoring: Pair with VictronConnect or use VRM Portal for global monitoring.

• Outstanding Conversion Efficiency: Maximum efficiency >98%, fanless design.

• Flexible Charging Algorithm: Eight pre-programmed, fully programmable charge profiles.

• Comprehensive Protection: PV reverse polarity, PV short circuit, PV reverse current, over-temperature, internal temperature compensation.

• Real-Time Data Display: Via Color Control GX, other GX devices, or smartphone with Bluetooth dongle.

Technical Specifications

• Battery Voltage: 12 / 24 / 48 V Auto Select

• Rated Charge Current: 60 A

• Max PV Voltage: 150 V

• Efficiency: >98%

• Operating Temperature: -30°C to +60°C

What’s in the Box

• 1 × BlueSolar 150/60-Tr MPPT

• 1 × User Guide
