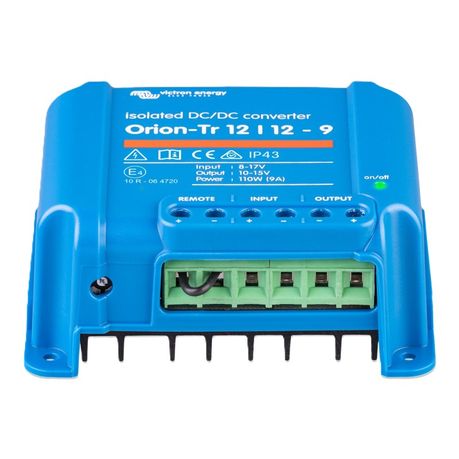

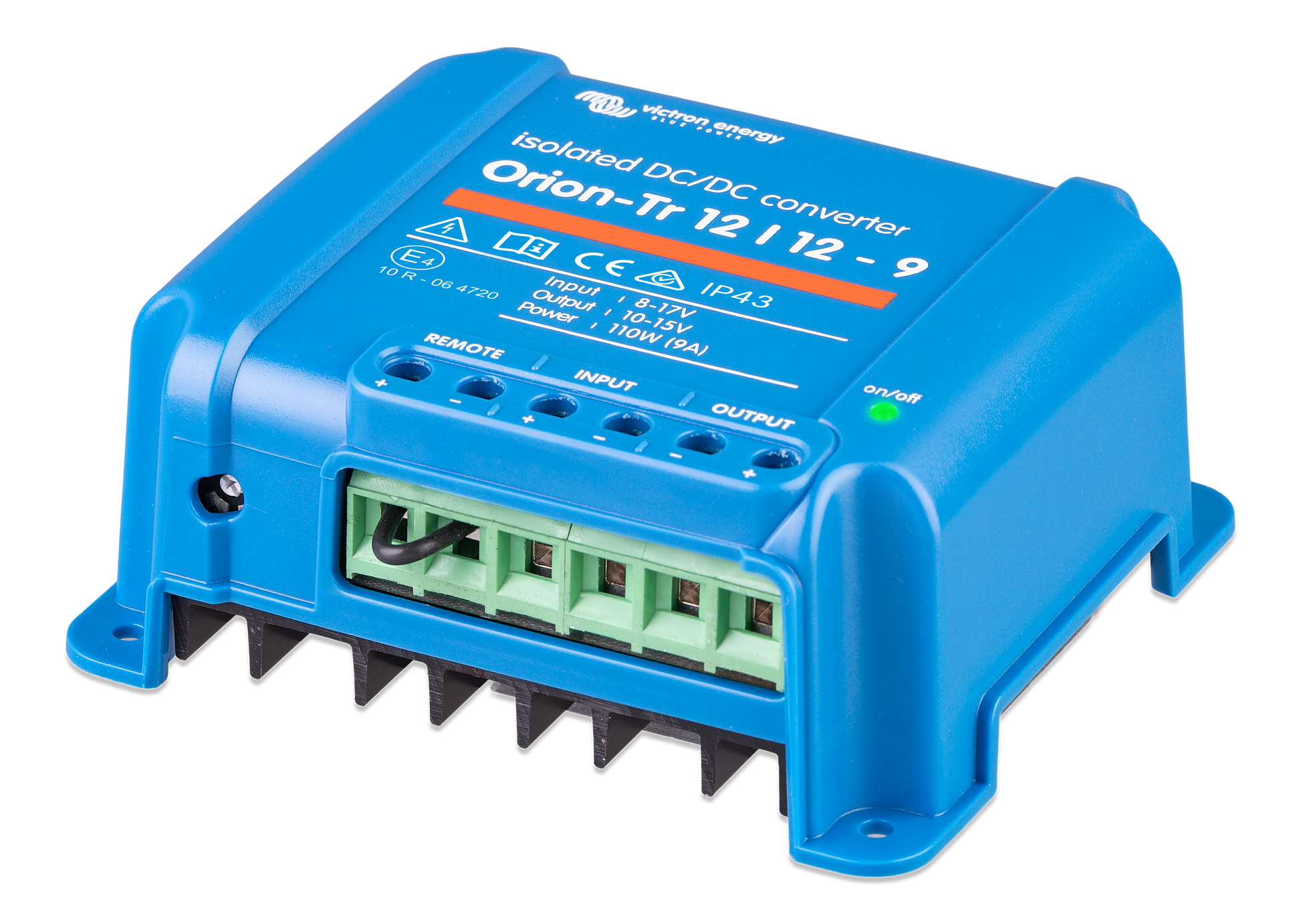

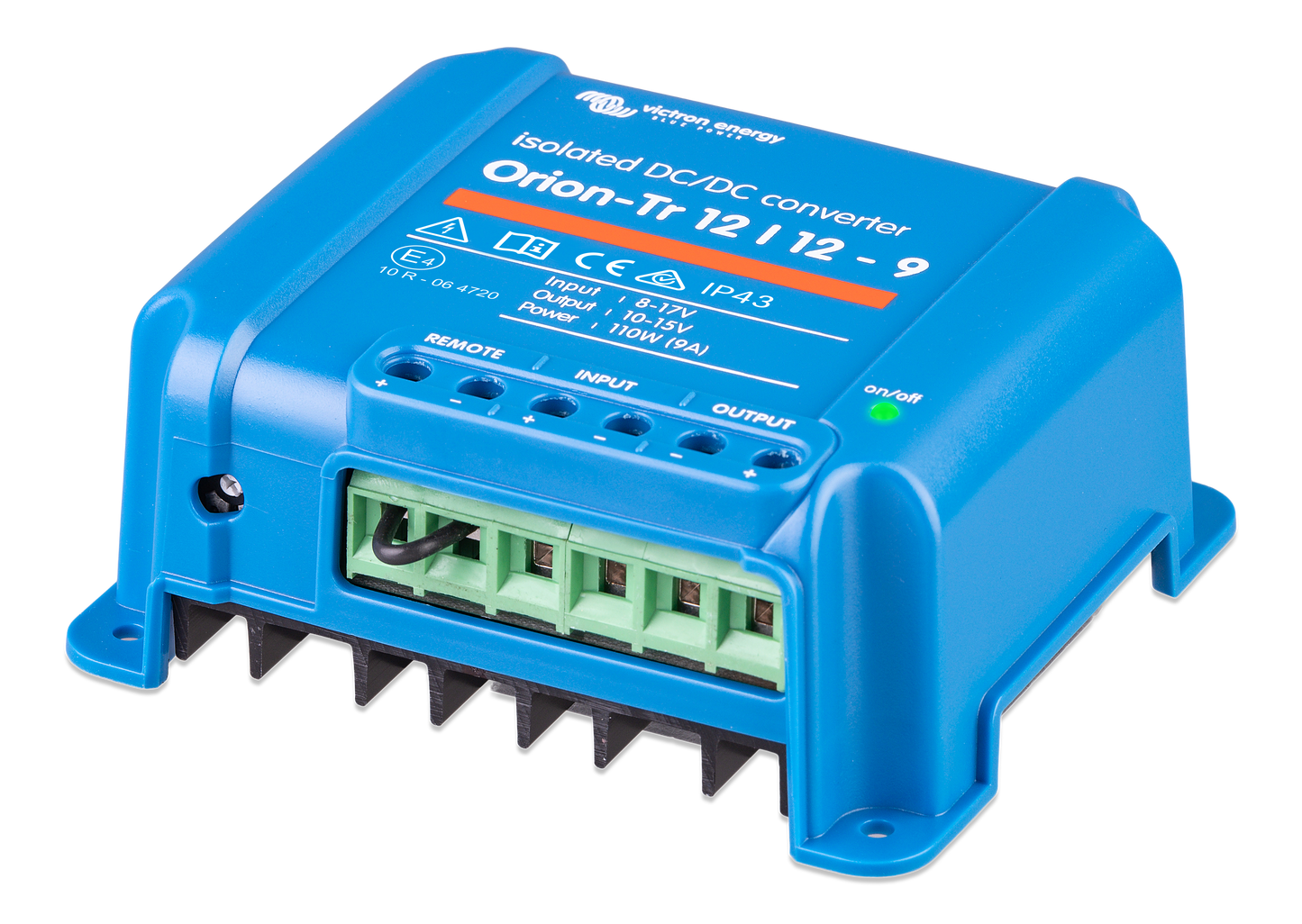

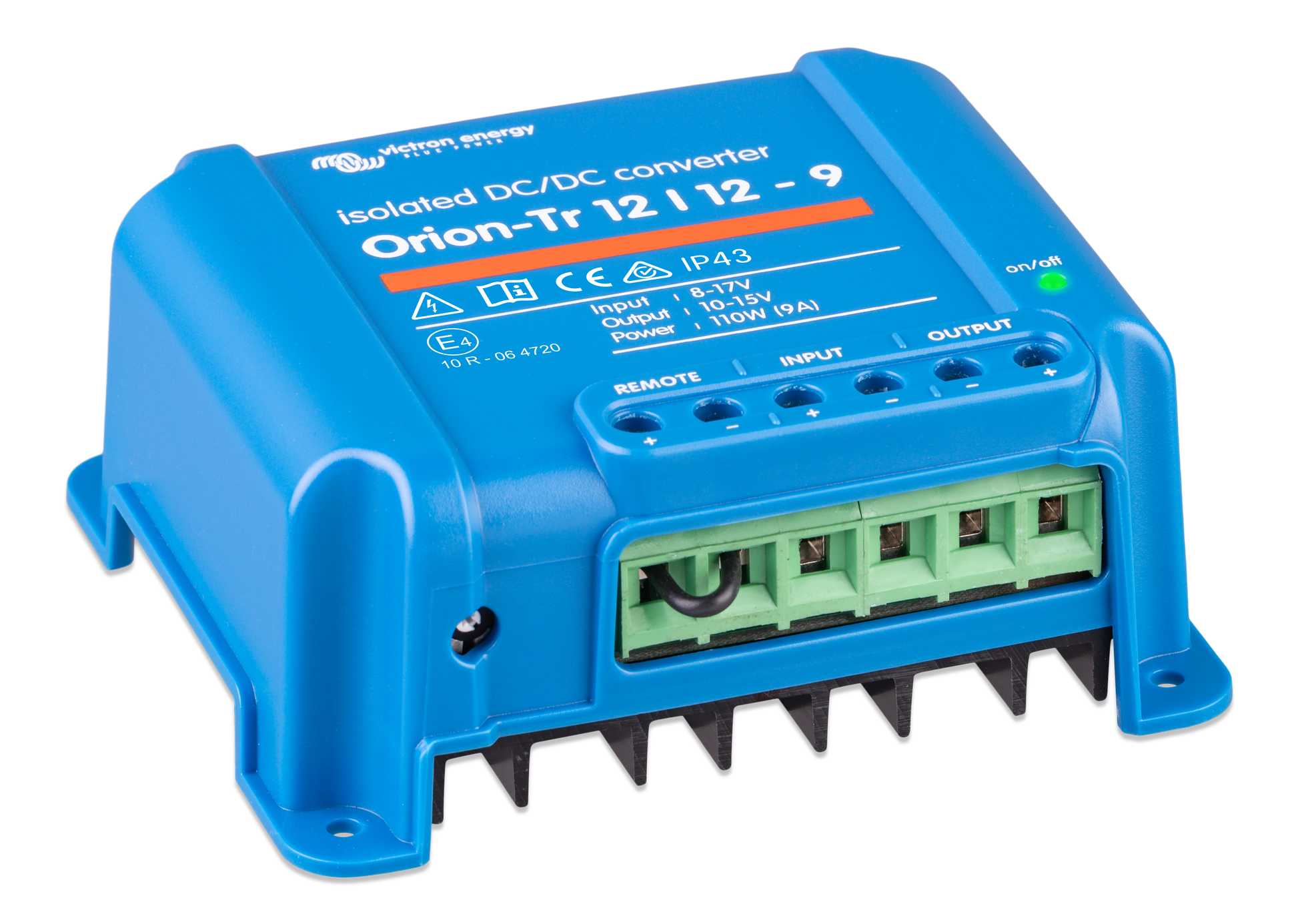

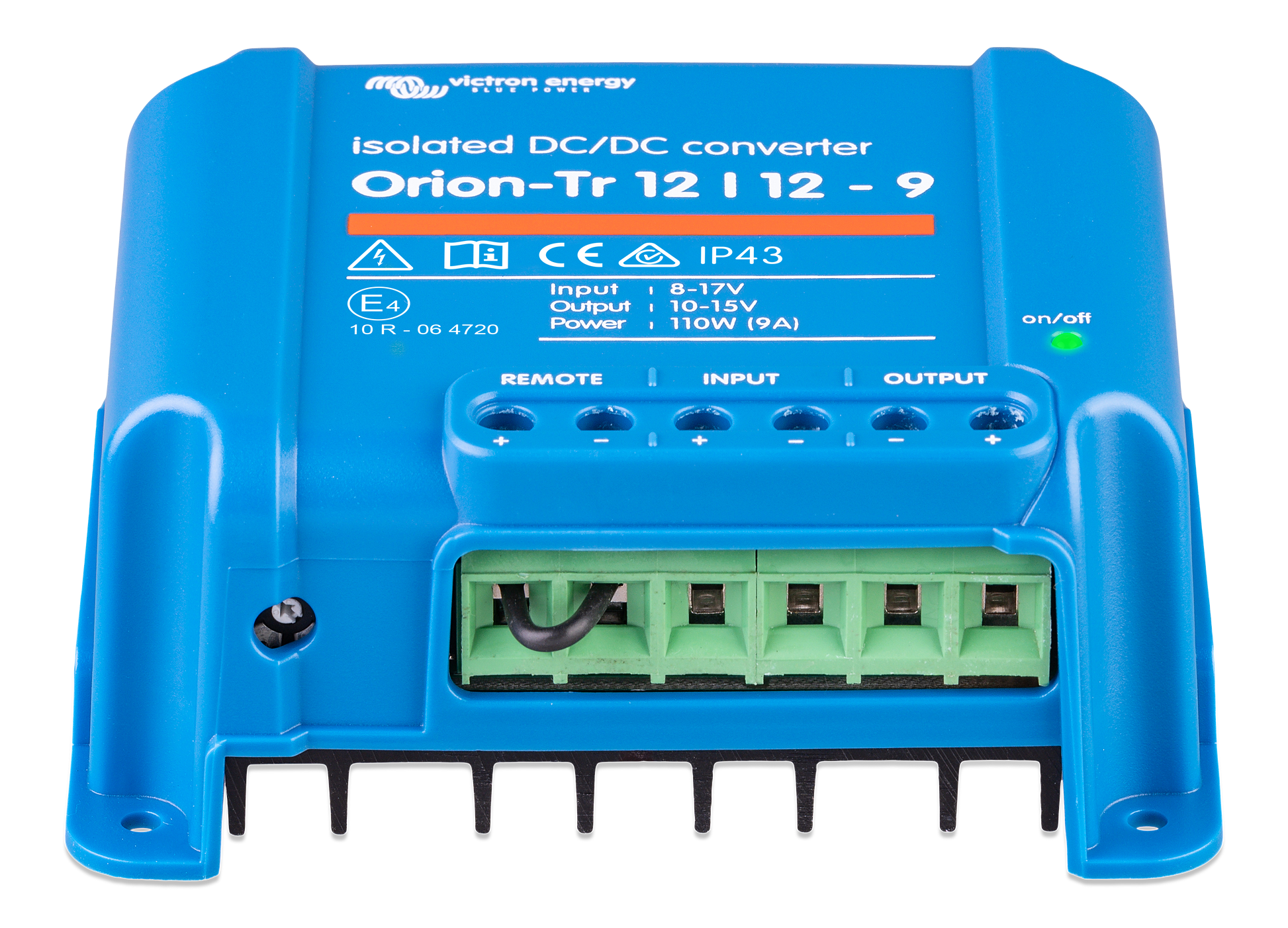

Victron Energy Orion 12/12-9A (110W) Isolated DC-DC Converter

The Victron Energy Orion 12/12-9A Isolated DC-DC Converter is a high-quality, professional solution designed to safely and efficiently convert 12V DC input to a stable 12V DC output. With galvanic isolation, robust protection features, and flexible installation options, it is ideal for automotive, marine, off-grid, and dual-battery systems.

Reliable Isolated DC-DC Conversion

This isolated DC-DC converter electrically separates the input and output circuits, protecting sensitive equipment and preventing ground loop issues. It ensures clean, stable power delivery in demanding environments where reliability is critical.

Remote On/Off Control

The built-in remote on/off function eliminates the need for a high-current switch in the input wiring. The converter can be controlled using a low-power switch or engine run/stop signal, making it perfect for vehicle and marine installations where automatic operation is required.

Parallel Operation for Higher Output

All Orion models are short-circuit proof and can be connected in parallel to increase output current. There is no limit to the number of units that can be paralleled, offering excellent scalability for growing power requirements.

Durable & Installation-Friendly Design

• IP43 protection when installed with screw terminals facing downward

• Screw terminal connections for quick and secure installation

• No special tools required

• Designed for long-term operation in harsh environments

Key Features

• Isolated DC-DC converter (12V → 12V)

• Continuous output current: 9A

• Output power: 110W

• Remote on/off functionality

• Short-circuit protection

• Parallel-ready (unlimited units)

• IP43 rated (correct installation orientation)

• Screw terminals for easy installation

Ideal Applications

• Dual-battery vehicle systems

• Camper vans and RVs

• Marine power systems

• Off-grid and backup power setups

• Sensitive electronics requiring isolated power

What’s in the Box

• 1 × Victron Energy Orion 12/12-9A (110W) Isolated DC-DC Converter
