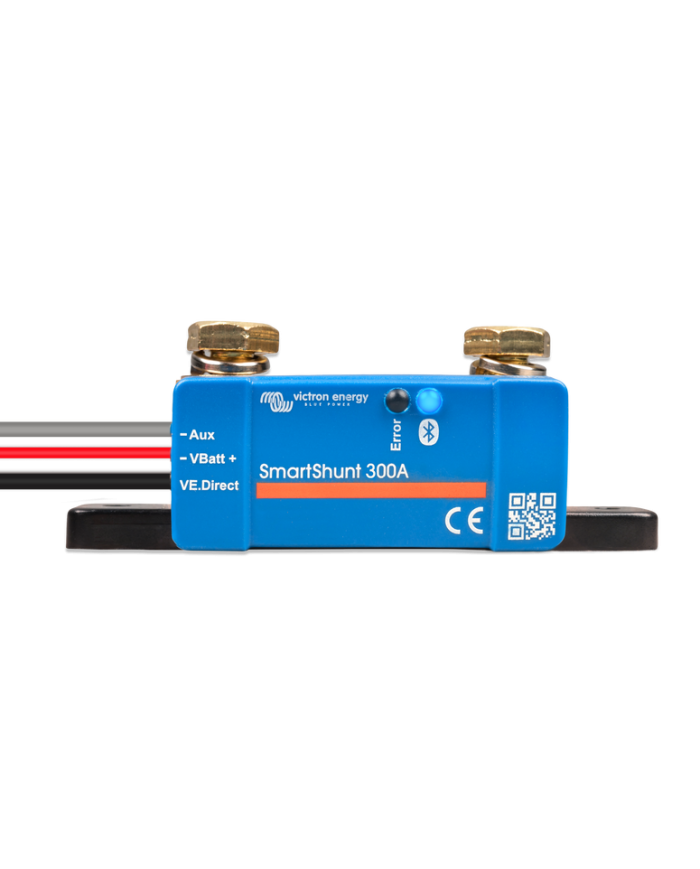

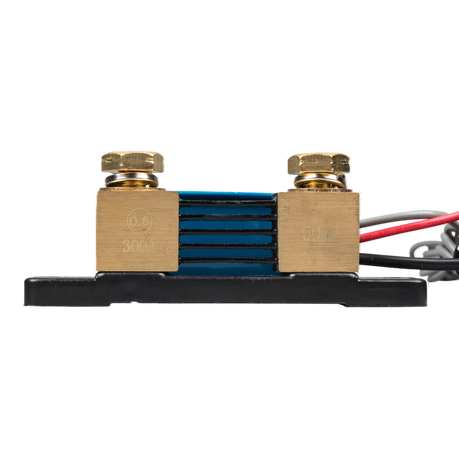

Victron Energy Smartshunt 300A/50mV IP65

The Victron SmartShunt IP65 is a compact, all-in-one battery monitor designed for simple, reliable, and clutter-free power management. Unlike traditional battery monitors with a display, the SmartShunt connects directly to your smartphone or tablet, where you can view all critical battery data through the VictronConnect App.

Built with an IP65 water-resistant design, the SmartShunt IP65 is tough enough for use in marine, RV, off-grid solar, and automotive applications. It’s the perfect alternative to the Victron BMV series for users who want advanced battery monitoring with less wiring and a cleaner installation.

✅ Key Features

• Built-in Bluetooth – monitor your battery system wirelessly via the VictronConnect App

• GX Device Integration – connect with a VE.Direct cable (sold separately) for central system monitoring

• Auxiliary Input – measure a second battery voltage, midpoint monitoring, or temperature

• IP65 Protection – water-resistant and dust-protected for harsh environments

• Easy Installation – minimal wiring, compact design, and flexible mounting options

📊 Technical Specifications

• Model: SmartShunt IP65 300A / 50mV

• Maximum Current Rating: 300A

• Supply Voltage Range: 6.5 – 70 VDC

• Auxiliary Battery Voltage Range: 6.5 – 70 VDC

• Power Consumption: < 1mA

• Supported Battery Capacity: 1 – 9999Ah

• Temperature Measurement Range: -20°C to +50°C

• Communication Port: VE.Direct

• Functions: Voltage, current, state of charge, time-to-go, historical data

📦 What’s in the Box

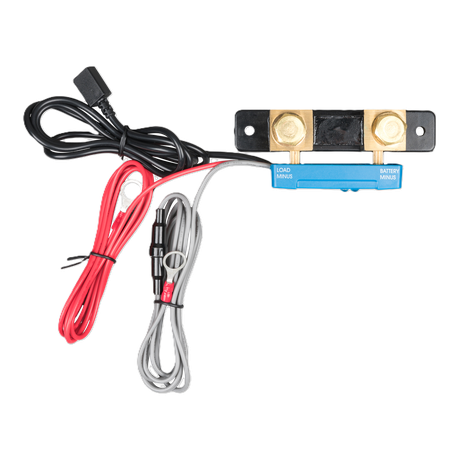

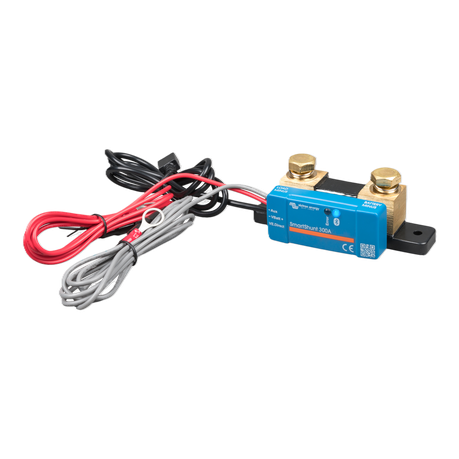

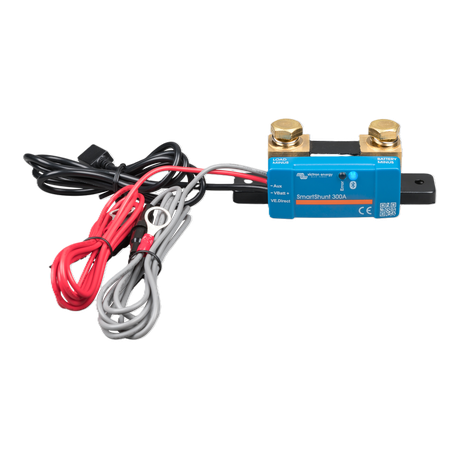

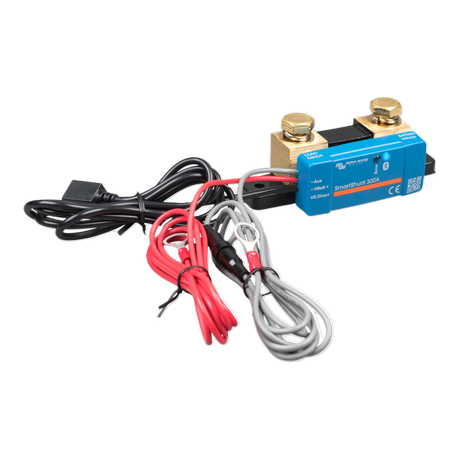

• 1 × Victron Energy SmartShunt IP65 300A/50mV

• 2 × 1.5m cables with 1A fuse (for positive connection and starter/midpoint battery monitoring)

• 1 × 1.5m cable with VE.Direct socket (VE.Direct cable for GX device connection sold separately)
