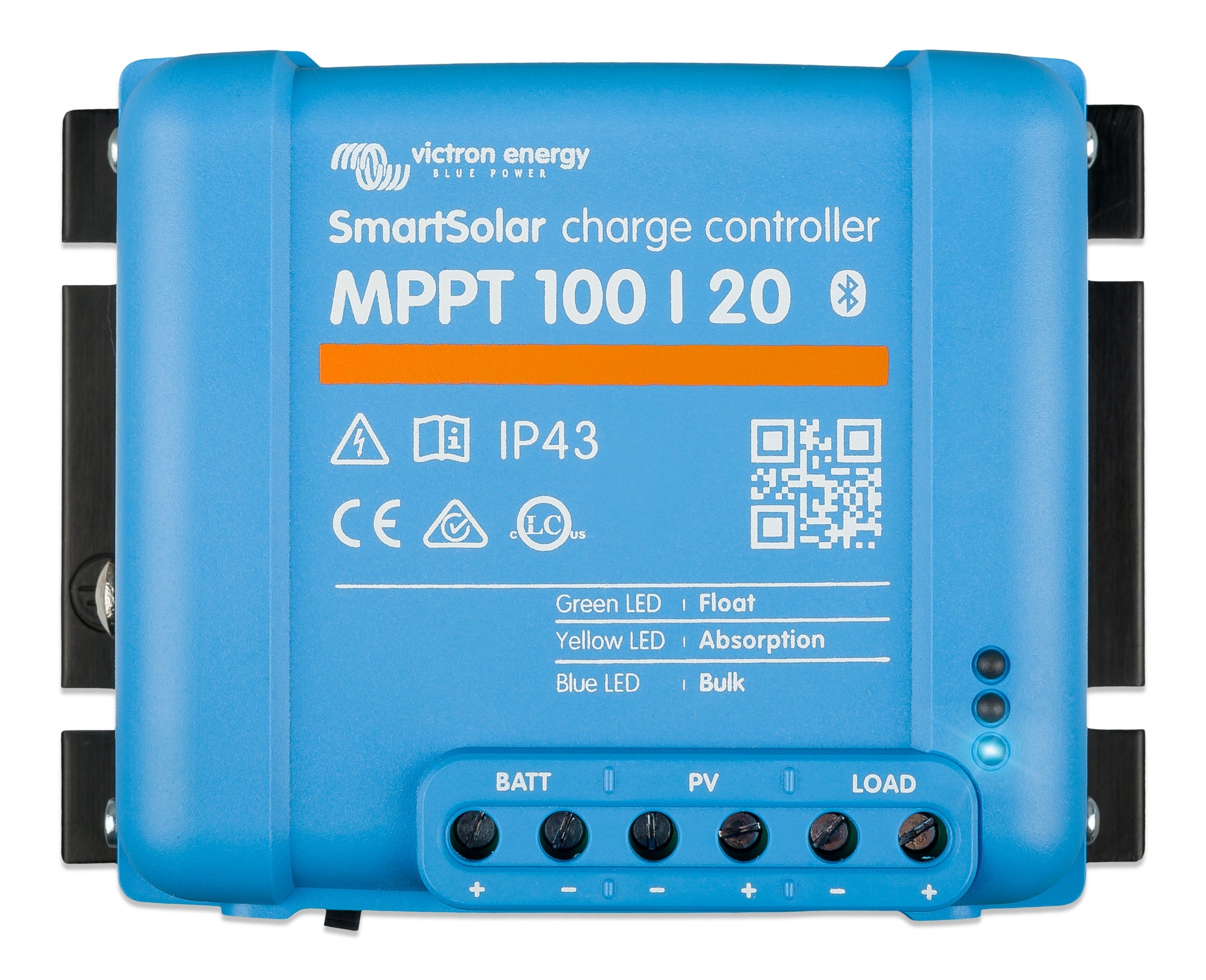

• A Top View of the Victron Energy SmartSolar MPPT 100/20 solar charge controller with connection ports for battery and solar panel inputs, and load output.
  • Victron SmartSolar 100/20 front design with connection labels visible

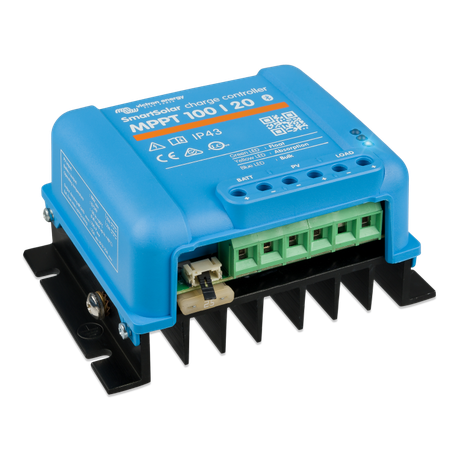

  • Left Side View of a Victron Energy SmartSolar MPPT 100/20 Charge Controller showing Connection Ports and Labels

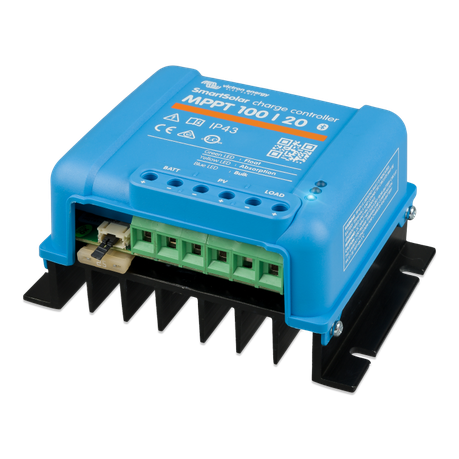

  • Right Side View of a Victron Energy SmartSolar MPPT 100/20 Charge Controller showing Connection Ports and Labels

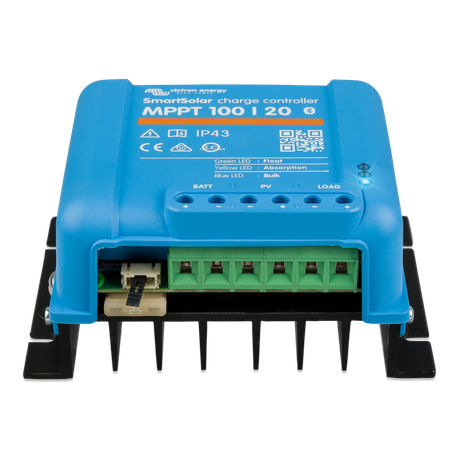

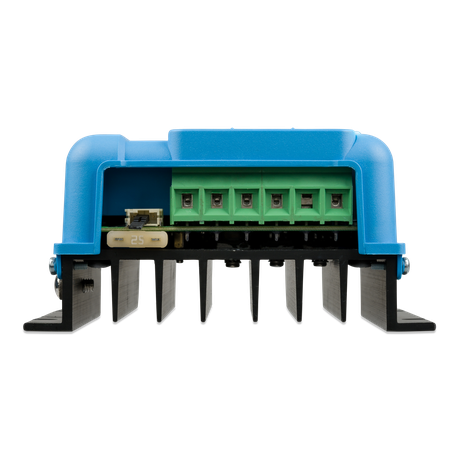

  • Front View of a Victron Energy SmartSolar MPPT 100/20 Charge Controller showing Connection Ports
  • VictronConnect app on a smartphone with app store download options
1 6

Stock Available

Victron Energy

Victron Energy SmartSolar MPPT 100/20

Victron Energy SmartSolar MPPT 100/20

R 1,299.00 ZAR
R 1,299.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Smarter Solar Charging, Longer Battery Life
The Victron SmartSolar MPPT 100/20 is designed to gather the maximum energy from your solar panels and deliver it intelligently into your batteries. Using ultra-fast MPPT (Maximum Power Point Tracking) technology, it ensures every drop of sunlight is captured—even on cloudy or variable days.

Built to protect and extend battery health, SmartSolar can recover deeply discharged batteries (down to 0V, if not permanently damaged) and adapt charging daily with its intelligent BatteryLife function. This means reliable energy storage, longer battery life, and peace of mind for your off-grid, camping, or backup power system.

With built-in Bluetooth, you can pair the charger with your smartphone or tablet via the free VictronConnect app. Monitor performance in real time, adjust settings, and stay in control wherever you are.

Key Features

  • Bluetooth Smart Built-In – monitor and configure settings via VictronConnect.

  • Ultra-Fast MPPT Technology – maximizes solar harvest, even in cloudy or changing light conditions.

  • Intelligent Battery Management – extends battery life with daily adaptive charging (BatteryLife).

  • Load Output Function – prevents over-discharge by disconnecting loads automatically.

  • Flexible Programming – custom battery charge algorithms with day/night timing and dimming options.

  • Battery Recovery – recharges deeply discharged batteries from 0V (if cells are healthy).

  • Temperature Sensing – built-in sensor plus optional external Bluetooth sensors.

  • Durable Protection – IP43 protection for electronics and IP22 for connections.

Technical Specifications

  • Battery Voltage (Auto-Select): 12 / 24 / 48V

  • Rated Charge Current: 20A

  • Nominal PV Power:

    • 12V: 290W

    • 24V: 580W

    • 48V: 1160W

  • Automatic Load Disconnect: Yes

  • Max. PV Open Circuit Voltage: 100V

  • Charge Algorithm: Multi-stage adaptive

  • Protection Category: IP43 (electronics), IP22 (connections)

What’s in the Box

  • 1 × Victron SmartSolar MPPT 100/20

  • 1 × User Manual
