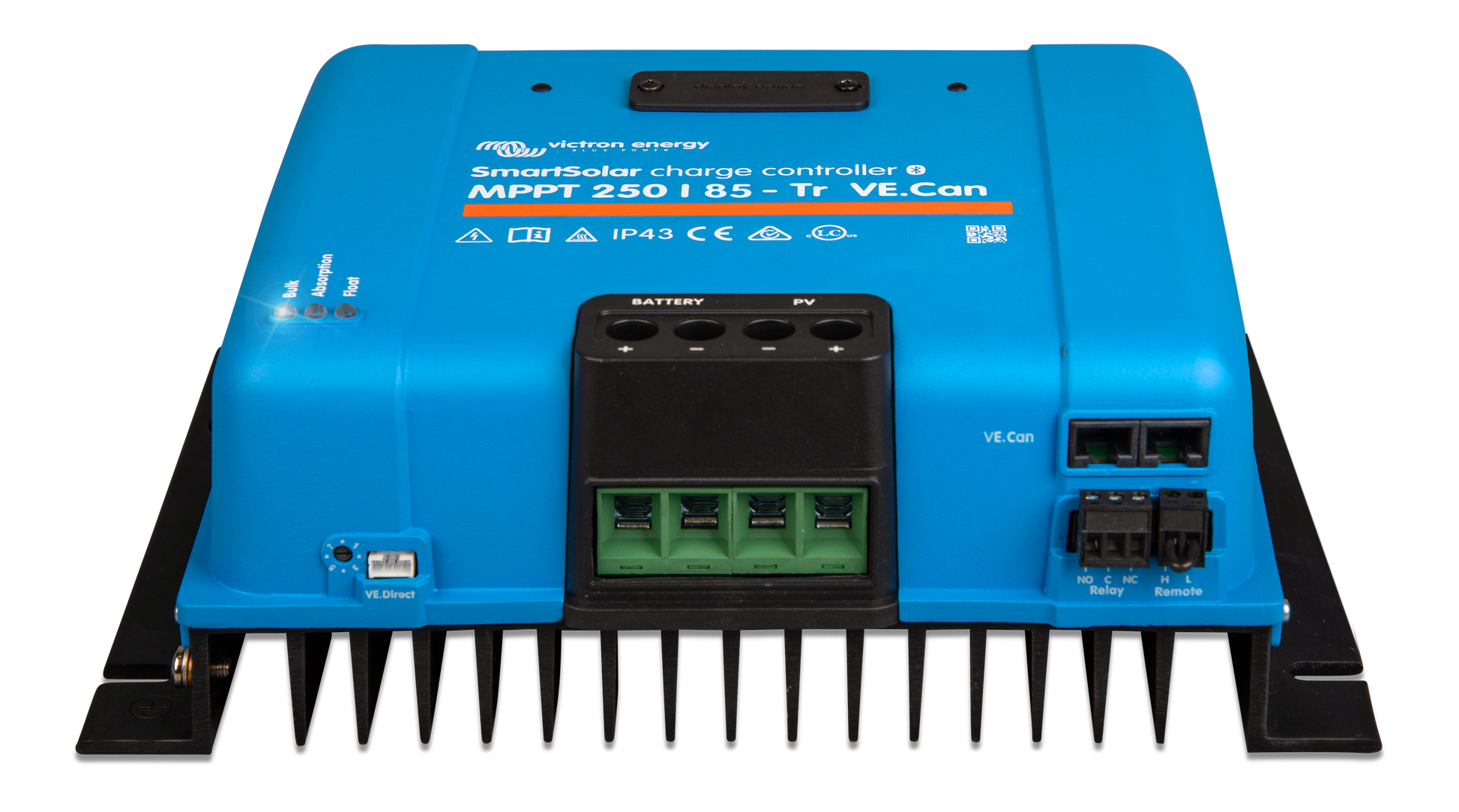

Victron SmartSolar MPPT 250/85-Tr VE.Can Solar Charge Controller – 12/24/48V

The Victron SmartSolar MPPT 250/85-Tr VE.Can is a high-performance solar charge controller designed to maximize solar energy harvest while ensuring battery longevity. Featuring built-in Bluetooth and full remote monitoring via VictronConnect and VRM Portal, you can control and monitor your solar system locally or from anywhere in the world.

Equipped with the intelligent Load Output and BatteryLife features, it prevents over-discharge of your batteries while ensuring they achieve a full recharge daily, even during periods of poor sunlight. Optional LoRaWAN support allows monitoring of remote installations with no internet or mobile connection nearby.

Key Features & Benefits

• Bluetooth Smart Built-In: Local monitoring and configuration via VictronConnect.

• Remote Access: Use VRM Portal to monitor and control your MPPT anytime, anywhere.

• Load Output Function: Protects batteries from over-discharge by intelligently disconnecting loads.

• BatteryLife Feature: Automatically adjusts load disconnect voltage to ensure batteries reach full charge, maintaining health and extending life.

• Ultra-Fast MPPT Technology: Maximizes energy from solar panels, especially under fluctuating light or partial shading.

• Adaptive Multi-Stage Charging: Optimized for lithium-ion and lead-acid batteries.

• Advanced Protection: PV reverse polarity, output short circuit, over-temperature, and temperature compensation.

Technical Specifications

• Rated Charge Current: 85 A

• Battery Voltage: Auto-detects 12 / 24 / 48 V

• Nominal PV Power: 12V: 1000W | 24V: 2000W | 36V: 3000W | 48V: 4000W

• Max PV Short Circuit Current: 100 A

• Max PV Open Circuit Voltage: 250 V absolute maximum

• Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms)

• Operating Temperature: -30°C to +60°C (full rated output up to 40°C)

• Humidity: 95%, non-condensing

What’s in the Box

• 1 × SmartSolar MPPT 250/85-Tr VE.Can

• 1 × User Guide
