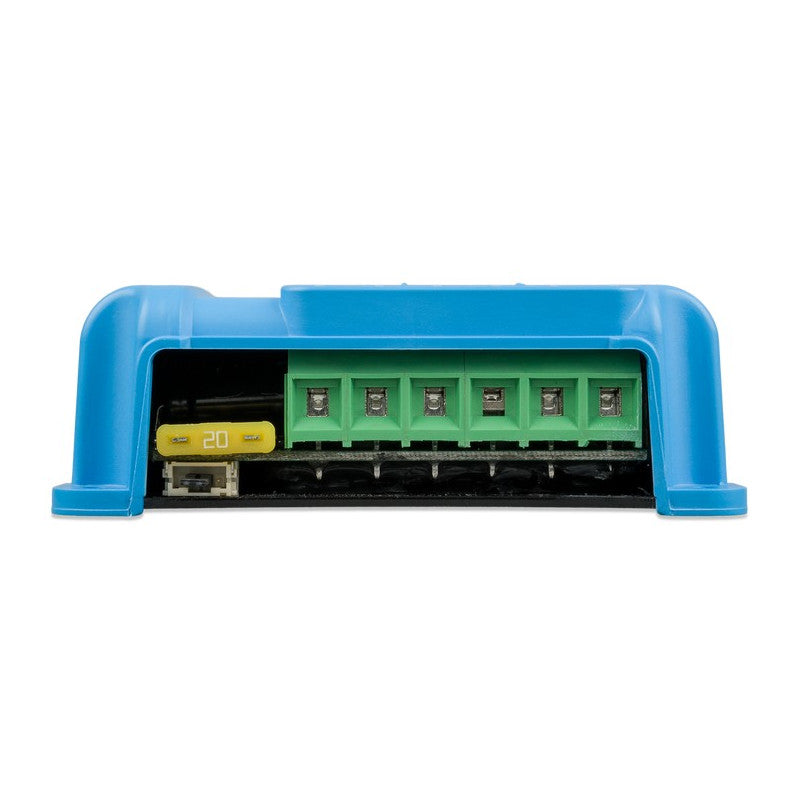

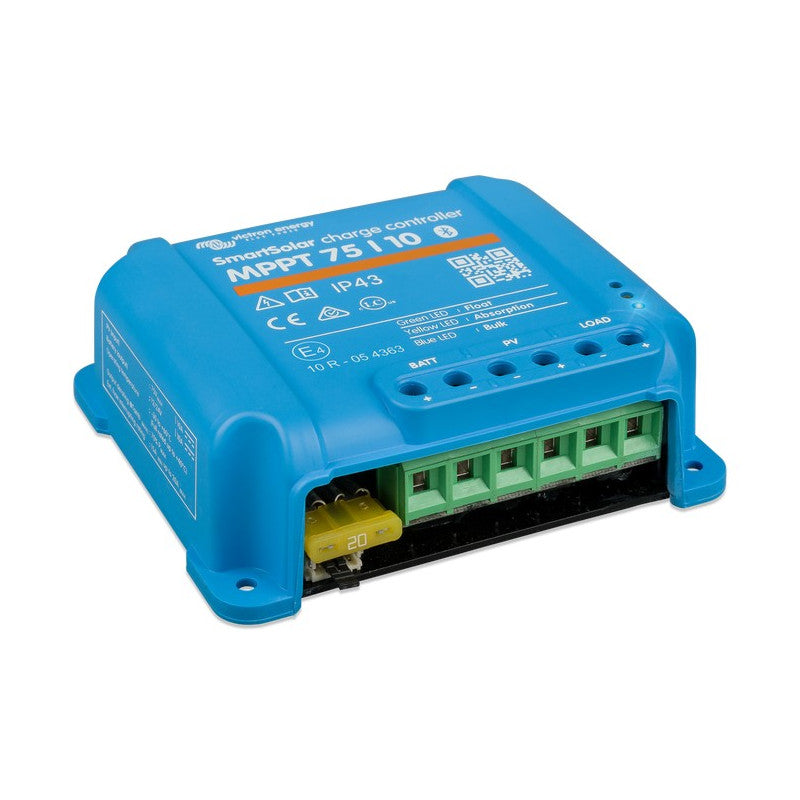

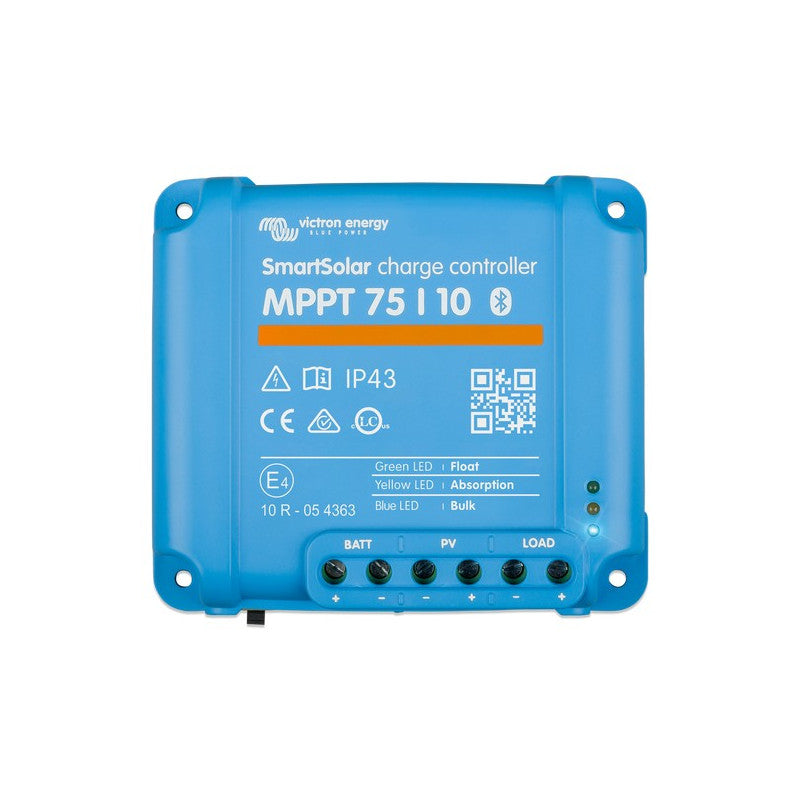

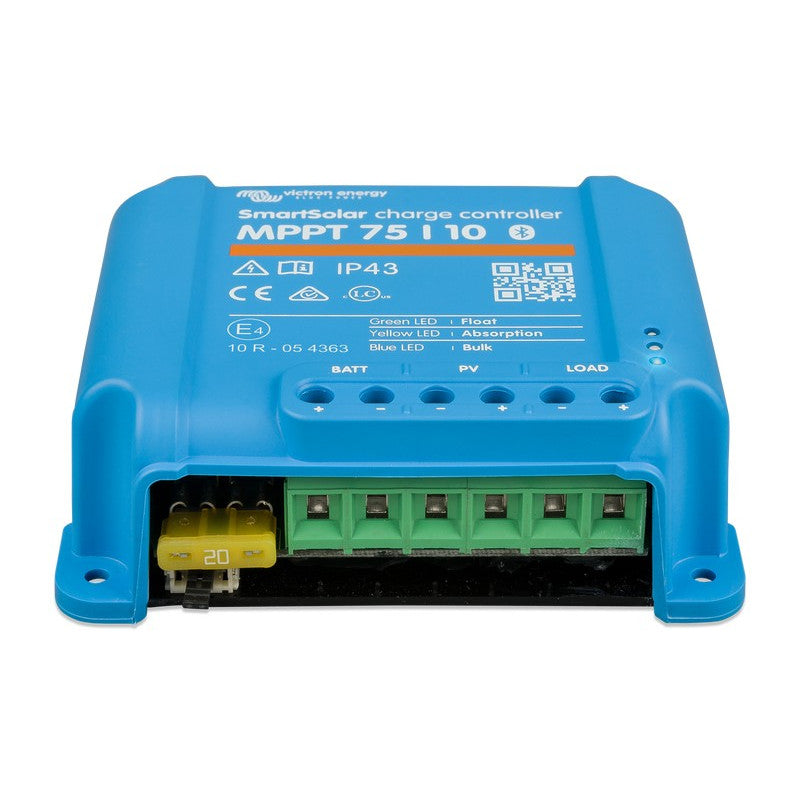

Victron Energy SmartSolar MPPT 75/10

The Victron Energy SmartSolar MPPT 75/10 Solar Charge Controller is an intelligent solar charger designed to maximise energy harvest from your solar panels and efficiently charge your batteries. Using advanced MPPT technology, it constantly monitors solar panel voltage and current to extract the maximum available power, especially in changing light conditions or partially cloudy weather.

With built-in Bluetooth, the SmartSolar MPPT 75/10 can be remotely monitored and configured using the VictronConnect app on a compatible smartphone or device. This makes it easy to view charging performance, adjust settings, and manage your solar system without needing additional monitoring hardware.

The controller supports 12V and 24V battery systems, with automatic battery voltage selection, a 10A rated charge current, and up to 145W PV power on 12V or 290W PV power on 24V. It also includes intelligent battery management features such as BatteryLife, programmable charging, load output control, and fully discharged battery recovery to help protect and extend battery lifespan.

Key Features:

• Victron Energy SmartSolar MPPT 75/10
• 12V / 24V auto-select battery voltage
• 10A rated charge current
• 75V maximum PV open circuit voltage
• 145W nominal PV power at 12V
• 290W nominal PV power at 24V
• Built-in Bluetooth Smart
• Ultra-fast Maximum Power Point Tracking
• Remote monitoring via VictronConnect
• Intelligent Load Output function
• BatteryLife intelligent battery management
• Programmable battery charge algorithm
• Day/night timing and light dimming option
• Internal temperature sensor
• Fully discharged battery recovery function
• Peak efficiency up to 98%
• Protection against output short circuit and over temperature
• Protection category: IP43 electronics / IP22 connection area

What’s in the Box

1 x Victron Energy SmartSolar MPPT 75/10 Solar Charge Controller
