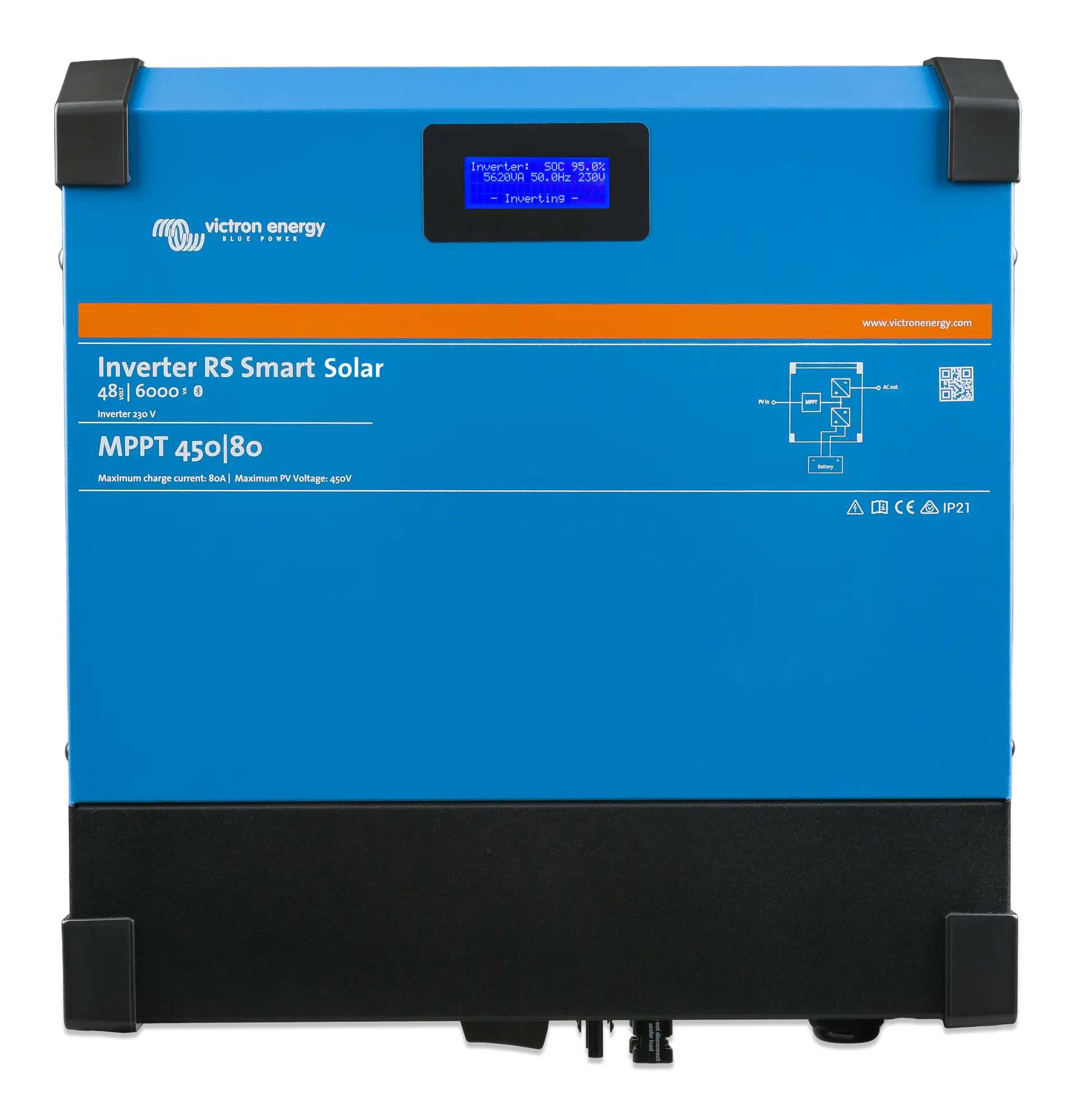

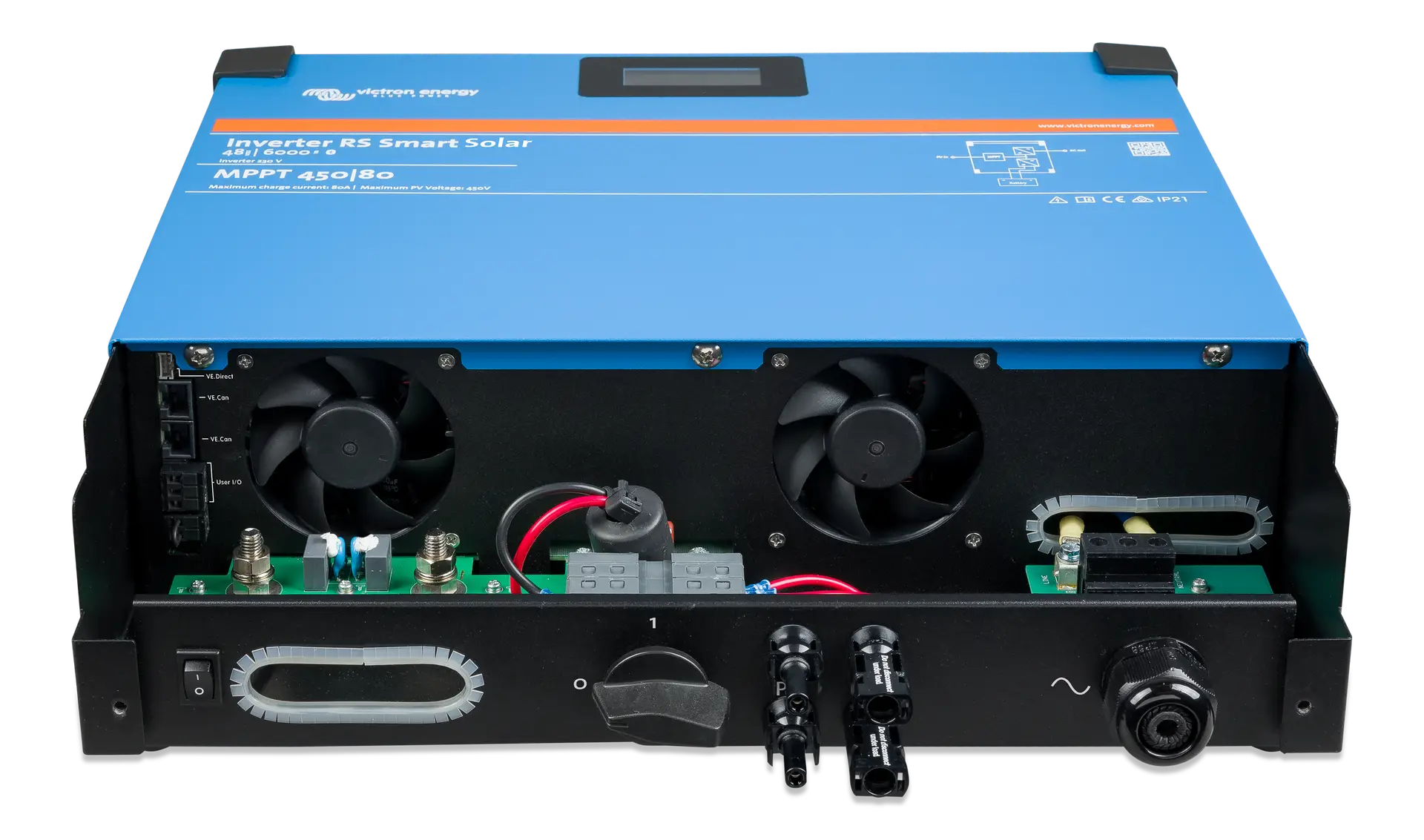

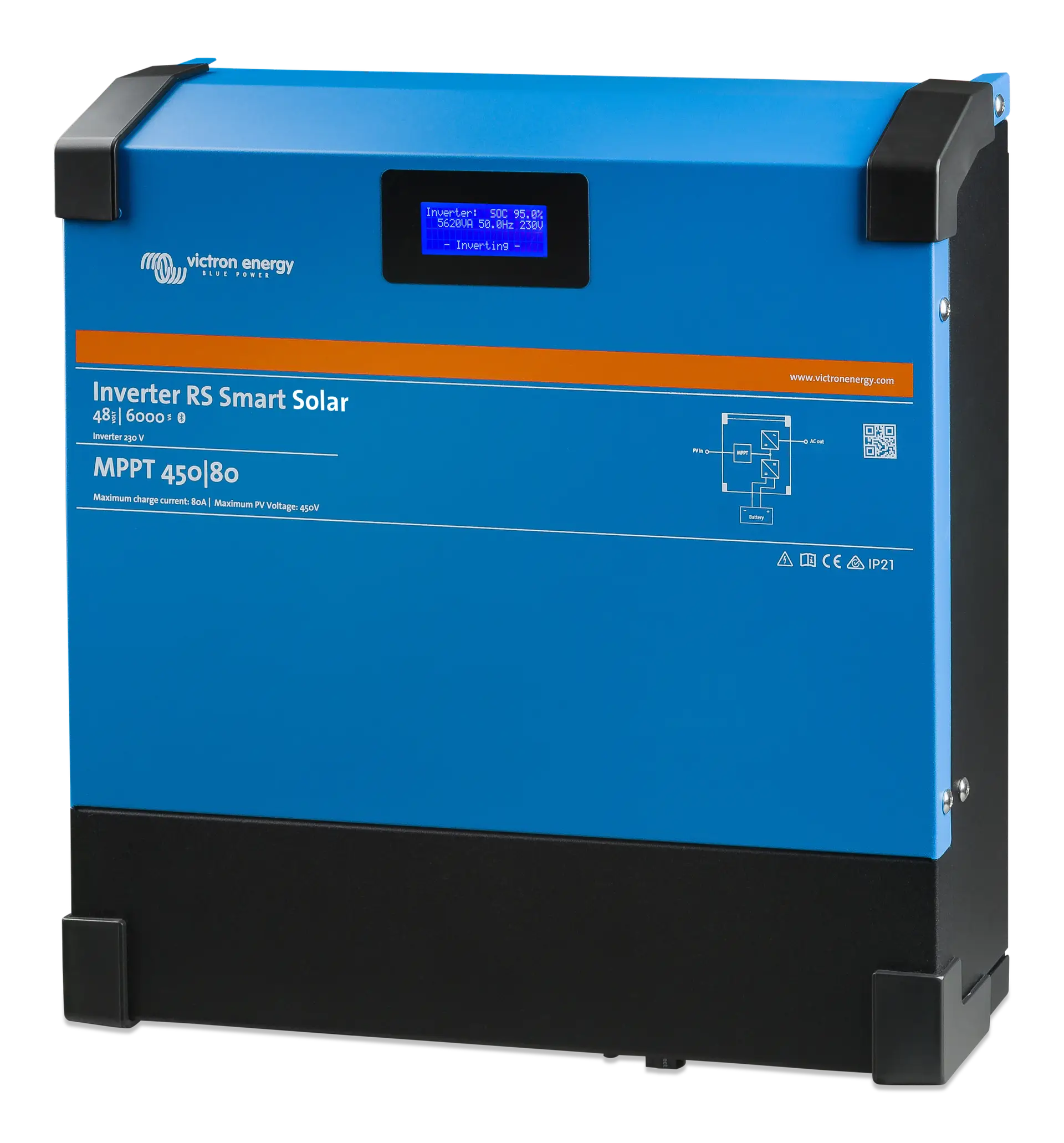

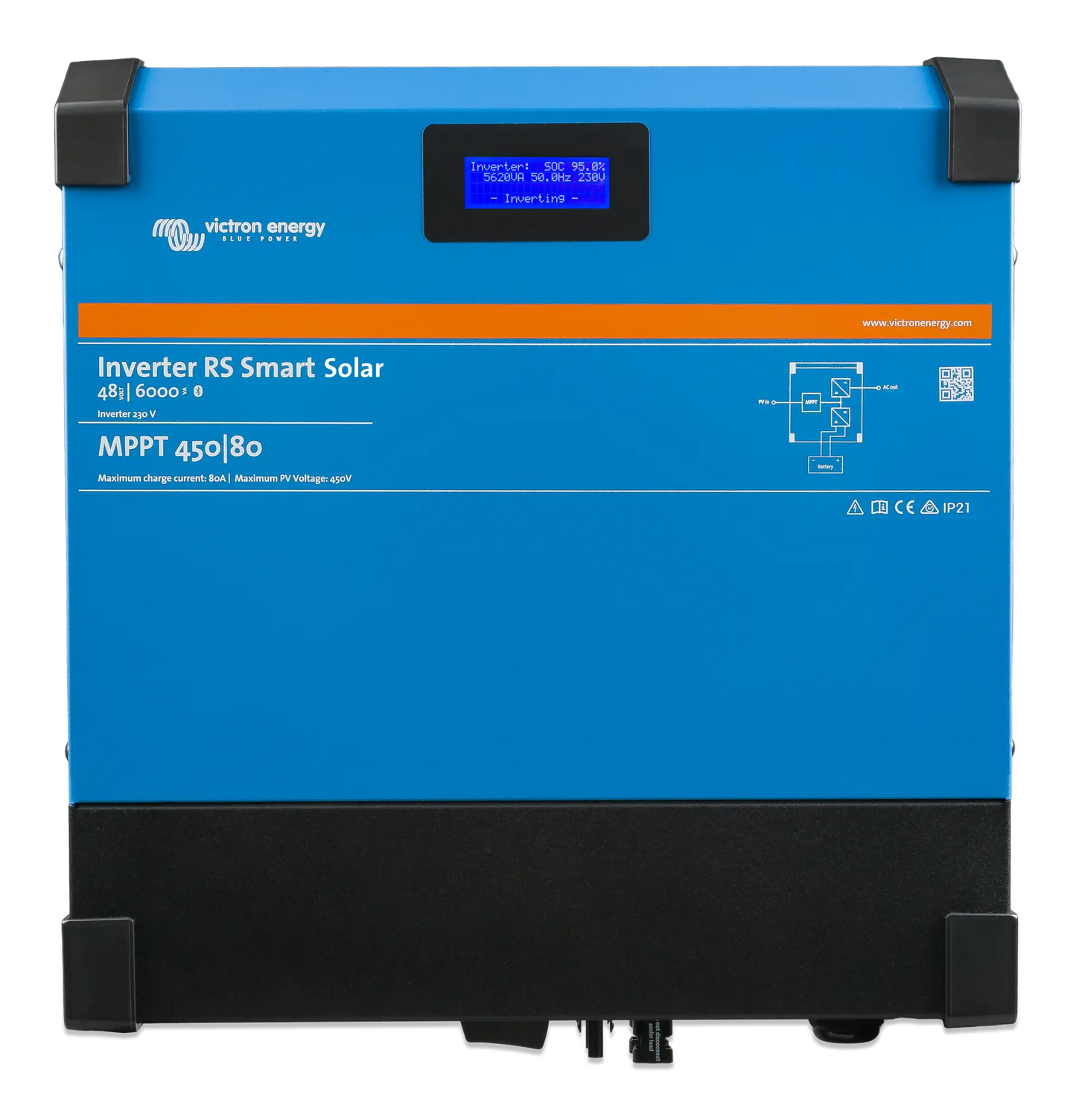

Victron Inverter RS 48/6000 230V Smart Solar

The Victron Inverter RS 48/6000 Smart Solar is a high-performance 48V, 6 kVA inverter combined with a high-voltage 4 kW MPPT solar charger. Its modern, lightweight design (11 kg) delivers excellent efficiency, low standby power, and quiet operation. The built-in display and Bluetooth via VictronConnect allow monitoring of battery, inverter, and solar charger parameters. Ideal for off-grid solar applications, this inverter provides reliable AC power while intelligently managing solar charging.

Key Features & Benefits

• Integrated 4 kW MPPT Solar Charger: Charges batteries directly from solar PV (80–450 VDC)

• High Efficiency: Up to 96.5%

• Lightweight & Compact: Only 11 kg with quiet operation

• Bluetooth Monitoring: Monitor inverter and solar performance via VictronConnect

• VE.Can & VE.Direct Ports: Connect to GX devices or GlobalLink 520 for remote monitoring

• Flexible Output: Continuous power up to 5.3 kW (depending on voltage), peak power 9 kW for 3 seconds

• Off-Grid Applications: Perfect for standalone solar systems where AC power is required

Specifications

• DC Input Voltage Range: 38–62 V

• Output Voltage: 230 VAC ±2%

• Frequency: 50 Hz ±0.1%

• Continuous Output Power: 4800–5300 W @25°C

• Peak Power: 9 kW for 3 sec, 7 kW for 4 min

• Maximum Efficiency: 96.5%

• Zero Load Power Consumption: 20 W

• Low Battery Shutdown: 37.2 V (adjustable)

• Low Battery Restart: 43.6 V (adjustable)

What’s in the Box

• 1 × Victron Inverter RS 48/6000 230V Smart Solar
