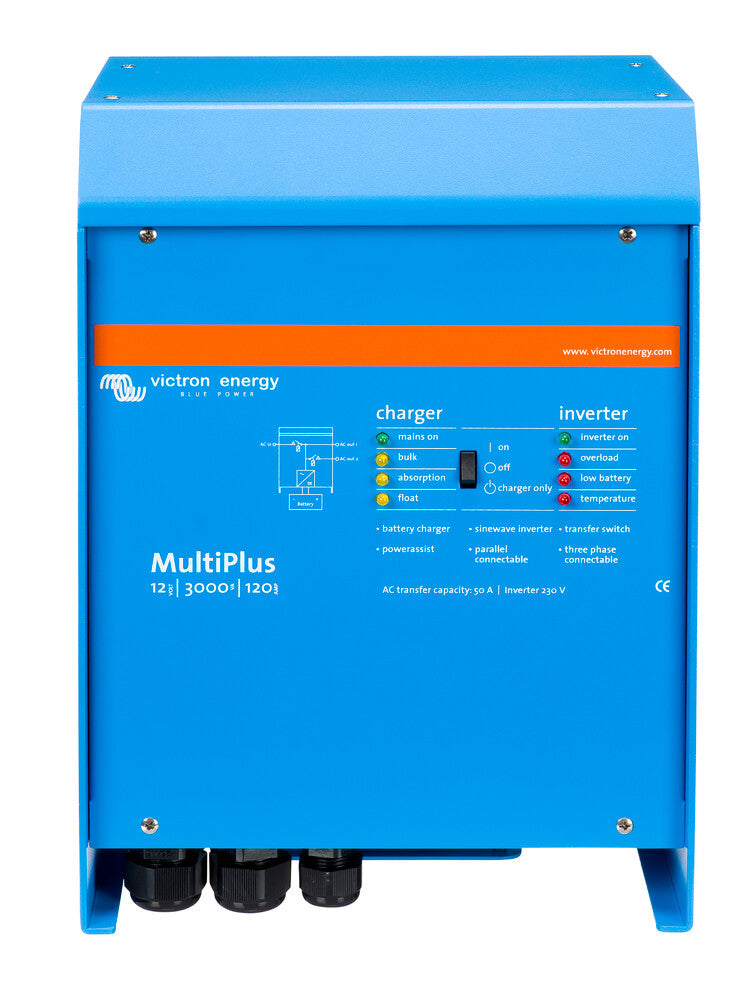

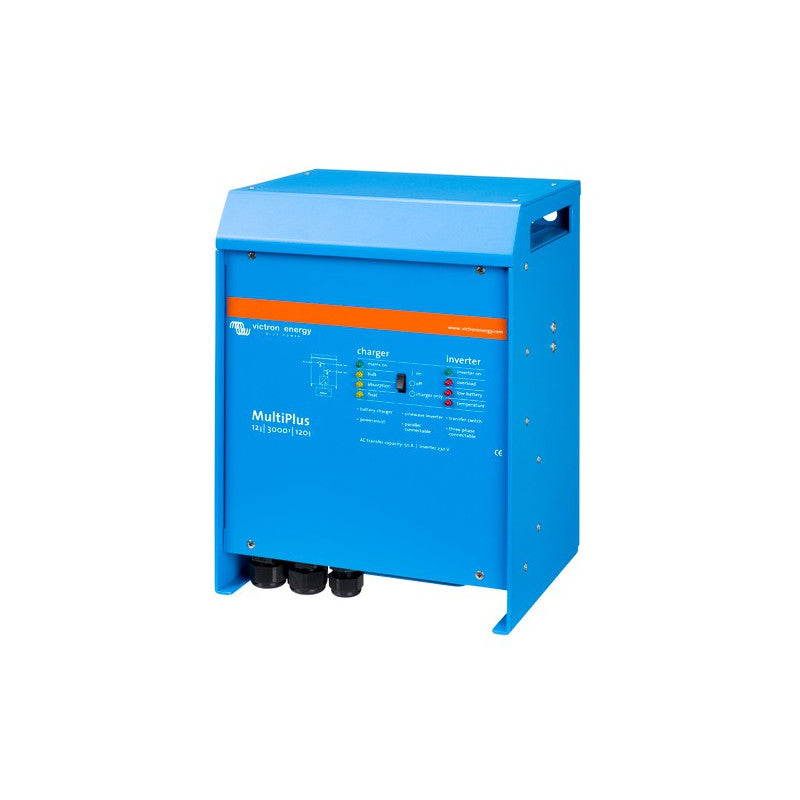

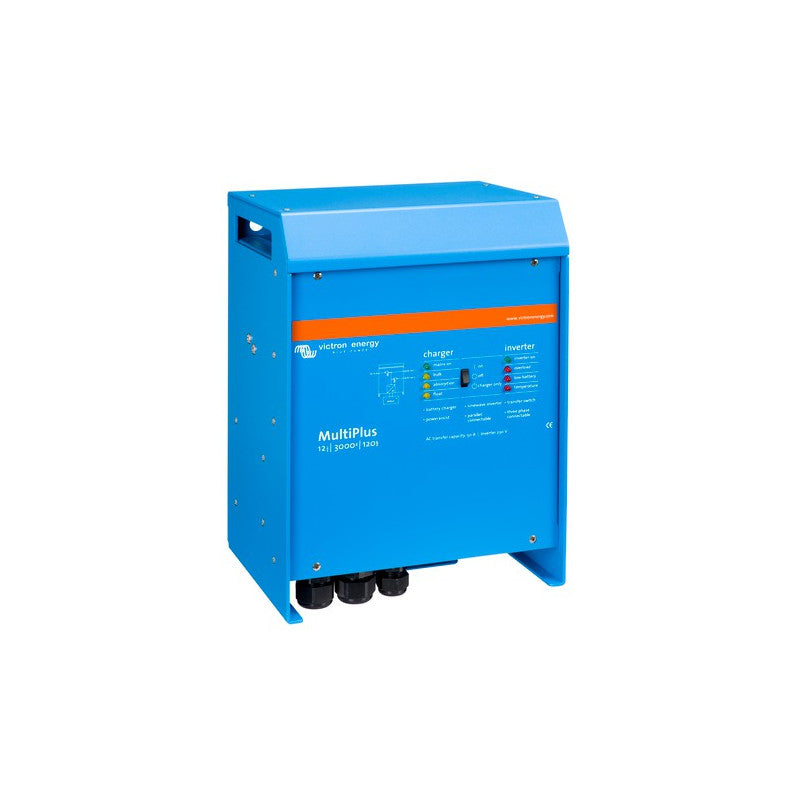

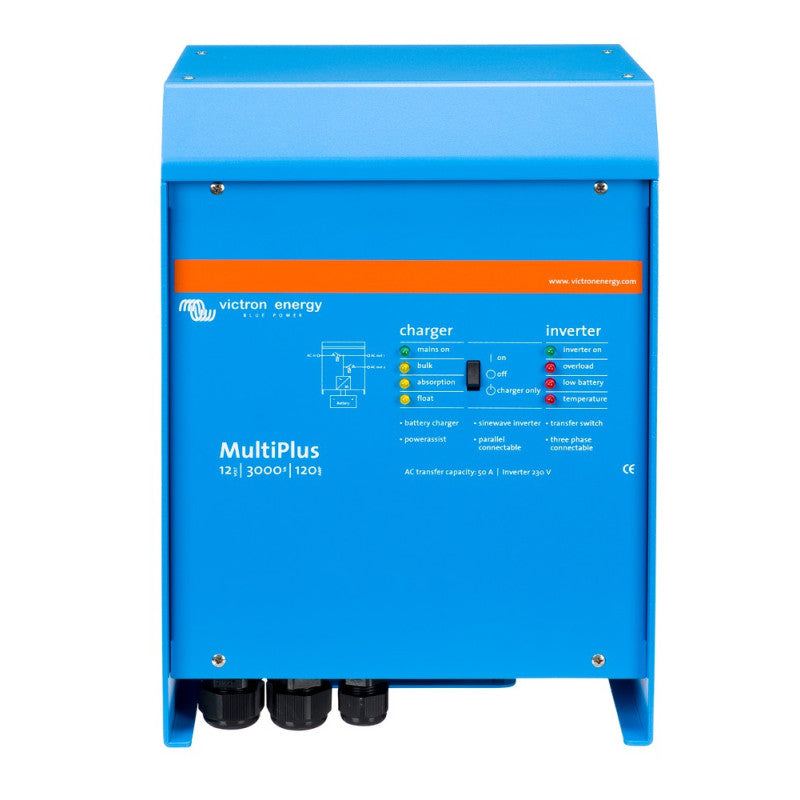

Victron MultiPlus 12/3000/120-16 230V Inverter / Charger

The Victron MultiPlus 12/3000/120-16 is a powerful and highly versatile 12V inverter-charger designed for backup power, off-grid systems, marine installations, and mobile energy solutions. Delivering 3000 VA (2400 W @ 25°C) of inverter power and a 120 A battery charger, it combines multiple critical functions into a single, reliable unit.

This MultiPlus is fully lithium-ion battery compatible and features Victron’s unique PowerAssist technology, which prevents overload of limited AC sources such as generators or shore power. When demand exceeds supply, the MultiPlus intelligently supplements available power with energy from the battery, then automatically recharges the battery once loads are reduced.

Uninterrupted Power (UPS Function)

In the event of a grid failure or generator disconnection, the MultiPlus switches to inverter mode in less than 20 milliseconds, ensuring uninterrupted power to sensitive equipment such as computers, routers, and control systems.

Scalable Power with Parallel and Three-Phase Capability

For higher power requirements, up to six MultiPlus units can be connected in parallel. Three-phase and split-phase configurations are also supported, making the MultiPlus suitable for everything from small residential systems to large commercial or marine installations.

Two AC Outputs for Intelligent Load Management

• Primary AC output: No-break output with seamless transfer during grid failure

• Secondary AC output: Only active when AC input is available, ideal for loads that should not discharge the battery (e.g. water heaters)

Advanced Monitoring and Remote Control

When paired with a GX device (such as Color Control GX or Venus GX), the MultiPlus can be monitored and controlled locally or remotely via the free Victron Remote Management (VRM) portal and VRM app. Users can view real-time performance, adjust settings, and manage multiple systems from anywhere in the world.

Key Features

• 3000 VA / 2400 W inverter power

• 12 V DC system with 120 A battery charger

• 16 A integrated transfer switch

• PowerAssist and PowerControl functionality

• UPS-grade uninterrupted AC power

• Lithium-ion battery compatible

• Parallel, split-phase, and three-phase capable

• Two AC outputs for load prioritisation

• VE.Bus communication

• Compatible with off-grid, grid-connected, and hybrid solar systems

Technical Specifications

• DC Input Voltage: 12 V

• AC Output Voltage: 230 V AC

• Inverter Rating: 3000 VA / 2400 W @ 25°C

• Battery Charger Current: 120 A

• Transfer Switch Rating: 16 A

• Communication: VE.Bus

• Battery Types: Lead-acid and lithium-ion

Applications

• Residential backup power (UPS systems)

• Off-grid and hybrid solar installations

• Marine and boat electrical systems

• Caravans and motorhomes

• Commercial and industrial mobile power

What’s in the Box

• 1 × Victron MultiPlus 12/3000/120-16 230V VE.Bus Inverter / Charger

• Documentation (via Victron online resources)
