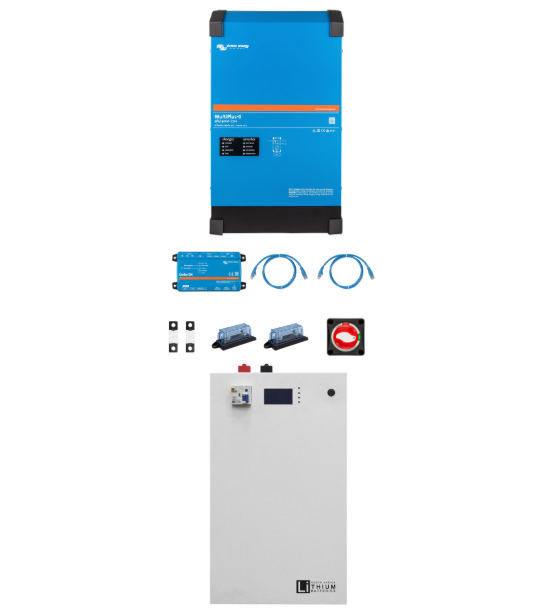

Victron MultiPlus-II 5kVA, LBSA 51.2V 208Ah 10.6kWh LiFePO4 battery Bundle Kit

Bundle Includes:
1x Victron MultiPlus 48/5000/70-50 230V VE.Bus
1x LBSA 51.2V 208Ah 10.6KWh LIFePO4 Lithium Ion Battery (White) 1C
1x Cerbo GX MK2
1x Victron RJ45 UTP Cable 3 Meter
1x Victron VE.Can to CAN-bus BMS Cable 5 Meter
1x Victron Battery On/Off Switch for battery positive cable
2x Victron Mega Fuse Holder
2x Mega Fuse 200A/80V for positive and negative battery cable

Victron MultiPlus-II 48/5000/70-50 230V:

Features of the MultiPlus, + external current transformer option to implement PowerControl & PowerAssist & to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding & an increasingly long list of country approvals.

48VDC, 5000VA, 70A Charger, 50A Transfer Switch.

PowerAssist

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control. Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto-starting a back generator and more.

A MultiPlus, plus ESS (Energy Storage System) functionality
The MultiPlus-II is a multi-functional inverter/charger with all the features of the MultiPlus, plus an external
current sensor option that extends the PowerControl and PowerAssist function to 50A resp. 100A.
The MultiPlus-II is ideally suited for professional marine, yachting, vehicle, and land-based off-grid applications.
It also has built-in anti-islanding functionality and an increasingly long list of country approvals for ESS application.
Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.

PowerControl and PowerAssist - Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use
whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl
function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a
limited period, the MultiPlus-II will compensate insufficient generator, shore, or grid power with power from the battery.
When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure
The MultiPlus-II can be used in off-grid as well as grid-connected PV and other alternative energy systems. It is
compatible with both solar charger controllers and grid-tie inverters.

Two AC Outputs
The main output has no-break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that
computers and other electronic equipment will continue to operate without disruption.
The second output is life only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the
battery, like a water heater, for example, can be connected to this output.

Virtually unlimited power thanks to parallel and three-phase operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide
25 kW / 30 kVA output power with 420 Amps charging capacity.
In addition to parallel connection, three units of the same model can be configured for three-phase output. But that's not
all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging
capacity.

On-site system configuring, monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface
needed).
Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop,
computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.

Remote configuring and monitoring
Install a Color Control GX or other GX product to connect to the internet.
Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
When connected to the internet, systems can be accessed remotely, and settings can be changed.

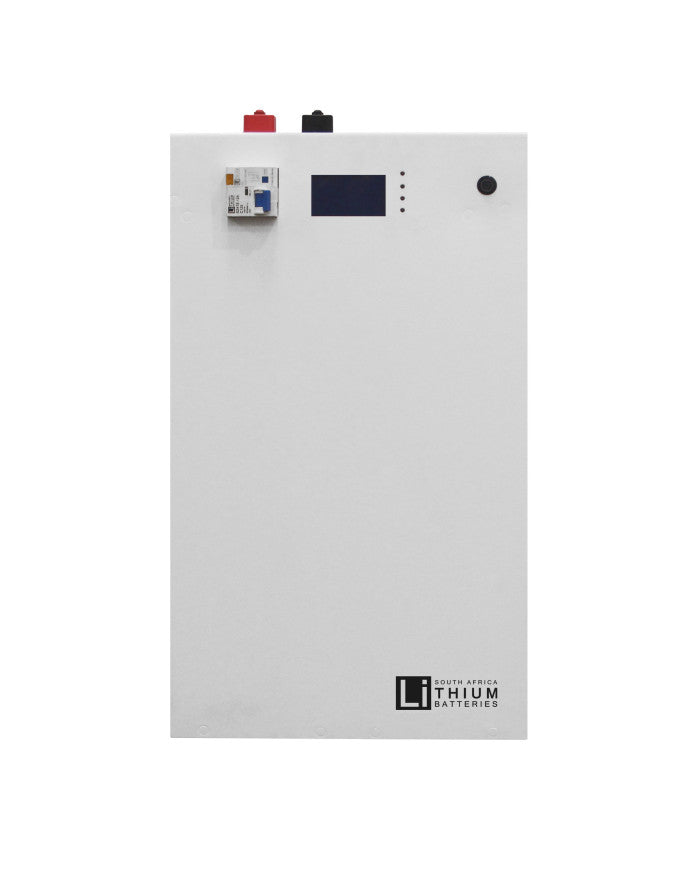

Lithium Batteries South Africa 48V 208Ah 10.6KWh LIFePO4 Lithium Ion Battery (White):

48V, 208Ah 10.6kWh

Details:
CAN Bus Comms: Victron, Growatt, Sunsynk, DEYE
Bulk + Absorption: 56.2v
Float : 56.2v
Low Voltage Cut Off: 44v
Maximum continuous Charge/Discharge For Single Unit: 100A  (Recommended 50A)Charge for Parallel units: (100A*"Units In parallel") / 2
Discharge for Parallel units: 100A * "Units in parallel

Display Definitions:
OV - Warn: high pressure alarm
OV - Prot: over-voltage protection
UV - Warn: low pressure alarm
UV - Prot: under-voltage protection
OT-Warn：High temperature alarm
OT-Prot：Over temperature protection
UT - Warn: low temperature alarm
UT - Prot: low temperature
OC - Warn: over-current alarm
OC - Prot: over-current protection
CAPA - Warn: remaining capacity of the alarm
OFF - USE: failure alarm
SCP：Short circuit protection

Victron Cerbo GX MK2:

This all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its added Bluetooth capability. The RJ45 ports have been rotated for easier access to remove cables.

Victron RJ45 UTP Cable 3 Meter:

A cable to connect Digital Multi Control, Inverter Control, Interface MK3-USB, VE.Bus connections between multiple VE.Bus devices and to make VE.Bus and VE.Can connections to a GX device.

Victron VE.Can to CAN-bus BMS Cable 5 Meter:

A cable to connect the E-Tower to the VE.Can connection of a GX device.

Victron Battery On/Off Switch:

Take charge of your power system with this robust Battery Switch, built for safety and long-term reliability in South African conditions—whether you're off-grid, on the road, or out at sea. Removable Knob: Lock the switch in the OFF position to prevent tampering or accidental switching. Ignition Protected: Certified to ISO8846 and SAE J1171 standards – safe for use near engines, ideal for boats, 4x4s, and caravans. Flexible Installation: Surface or rear panel mount to suit your setup.

Victron Mega Fuse Holder:

Victron Fuse Holder for MEGA fuse suitable for 12 to 48V DC systems

Mega Fuse 200A/80V:

Ensure reliable circuit protection with the Victron MEGA-Fuse 200A/80V, designed for high-current DC applications. This fuse is ideal for safeguarding battery systems, inverters, and other sensitive electrical components from overcurrent damage. Built to Victron’s exacting standards, it offers exceptional durability and low voltage drop for efficient performance.
