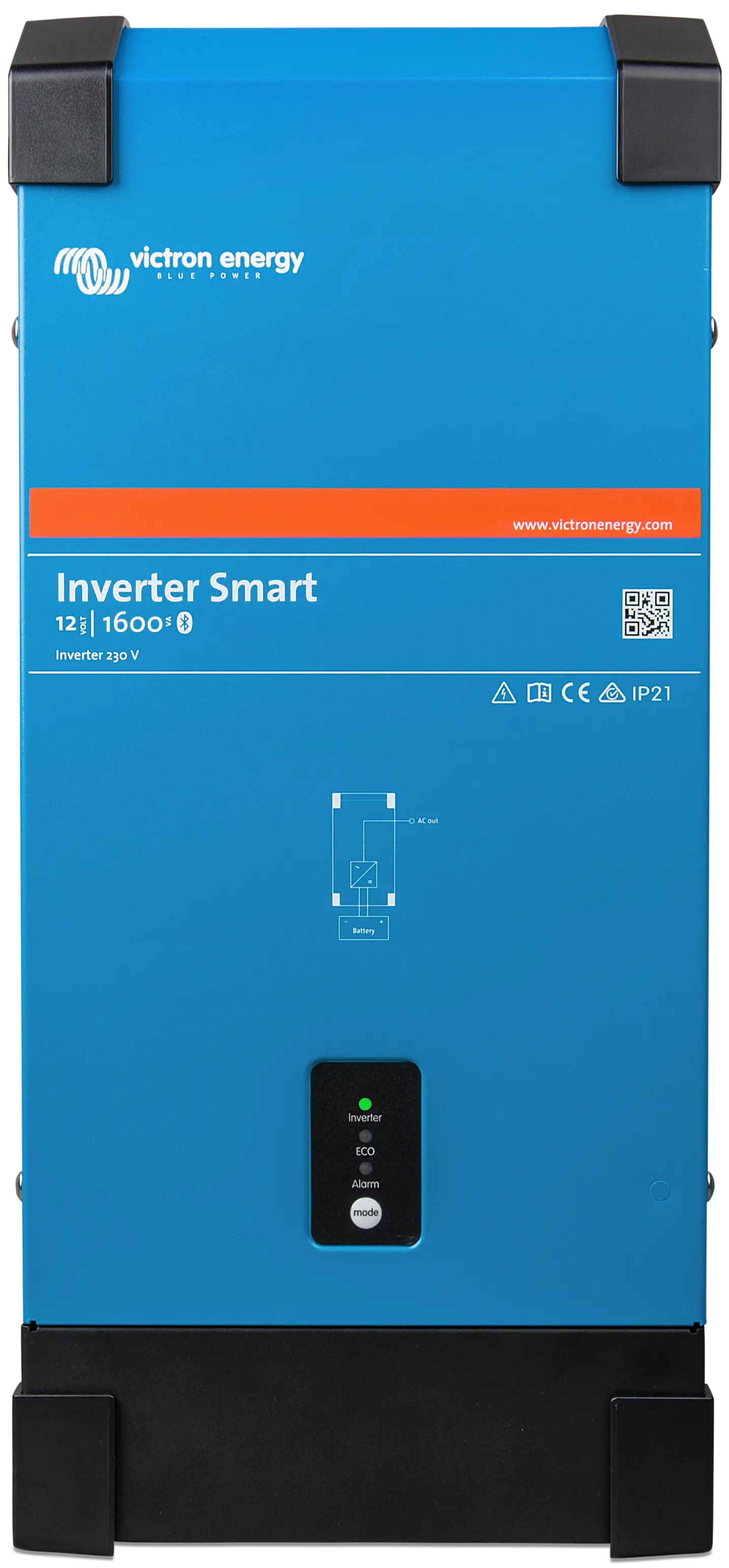

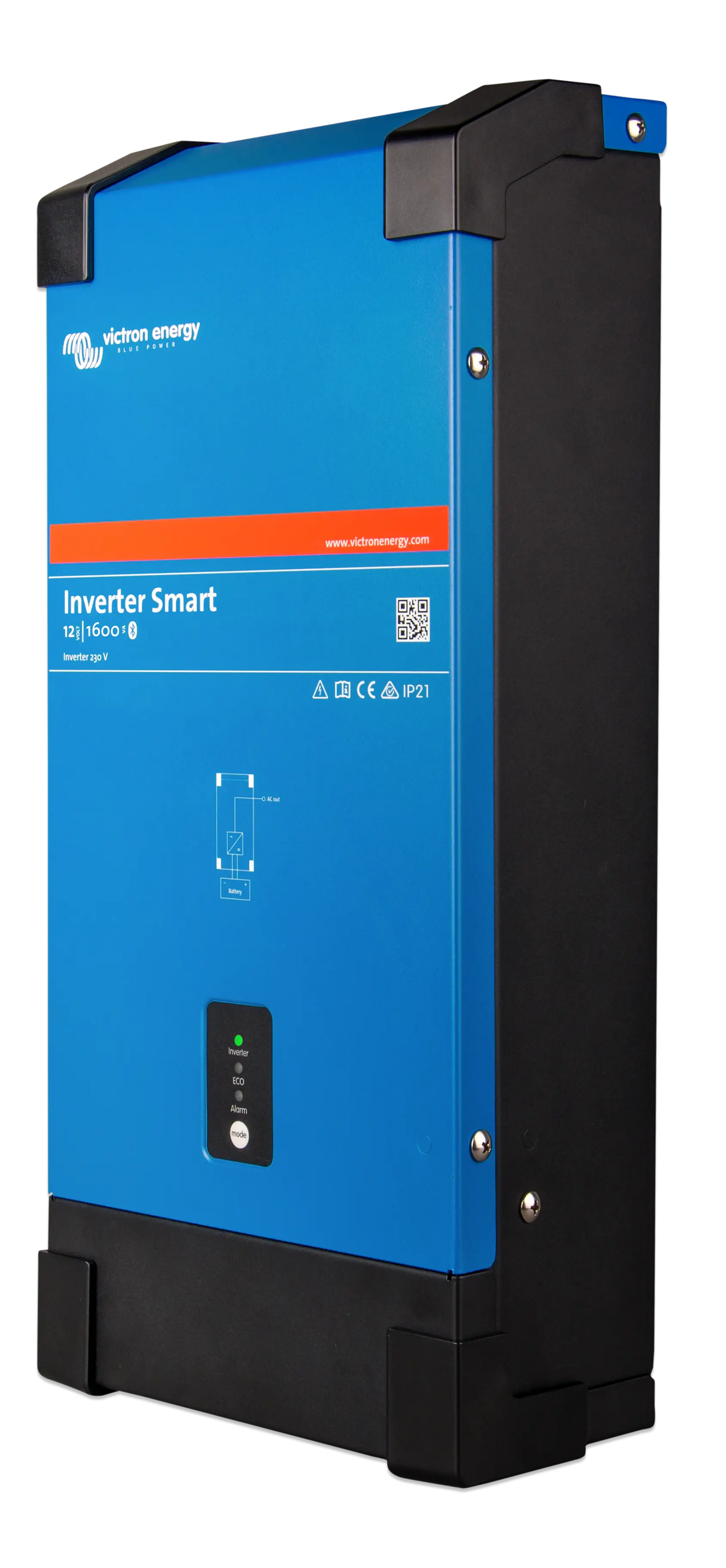

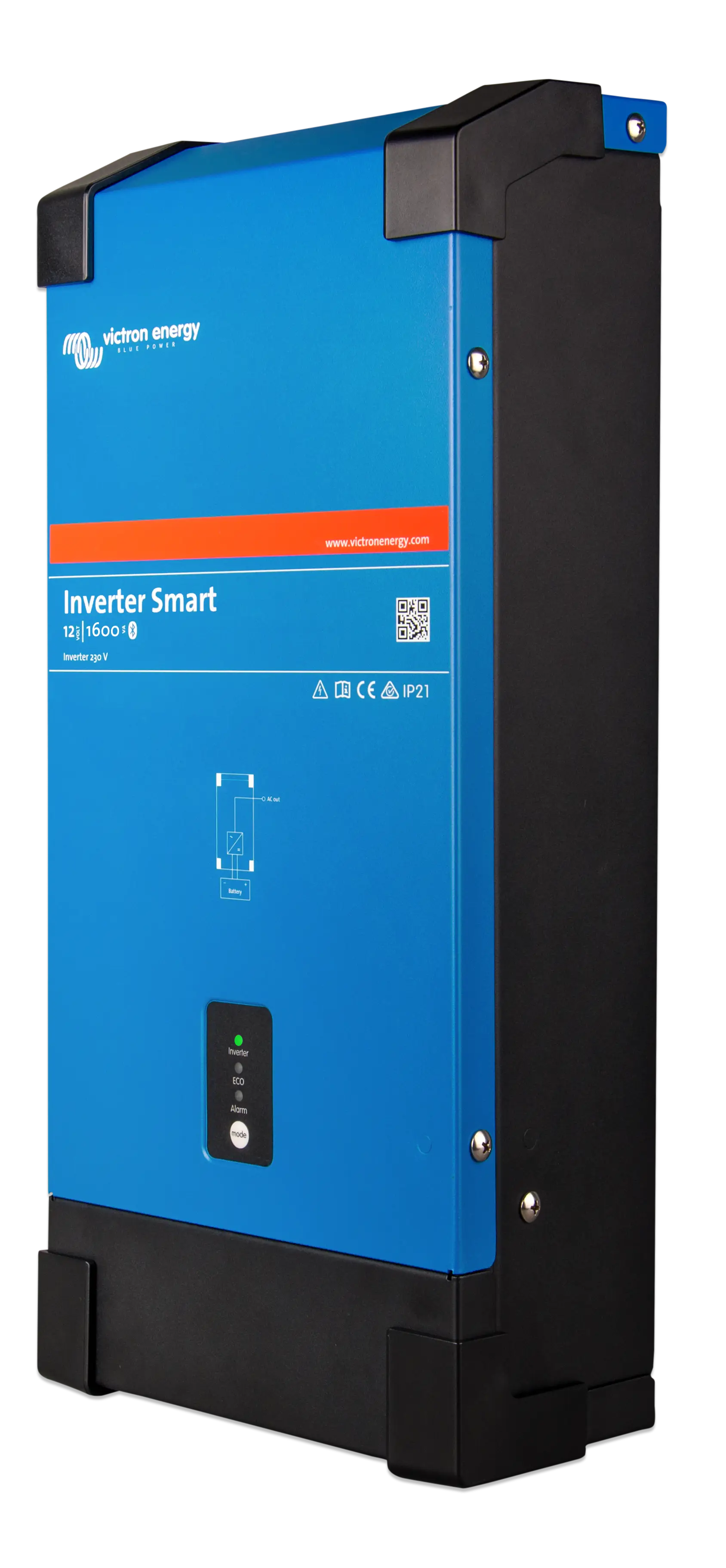

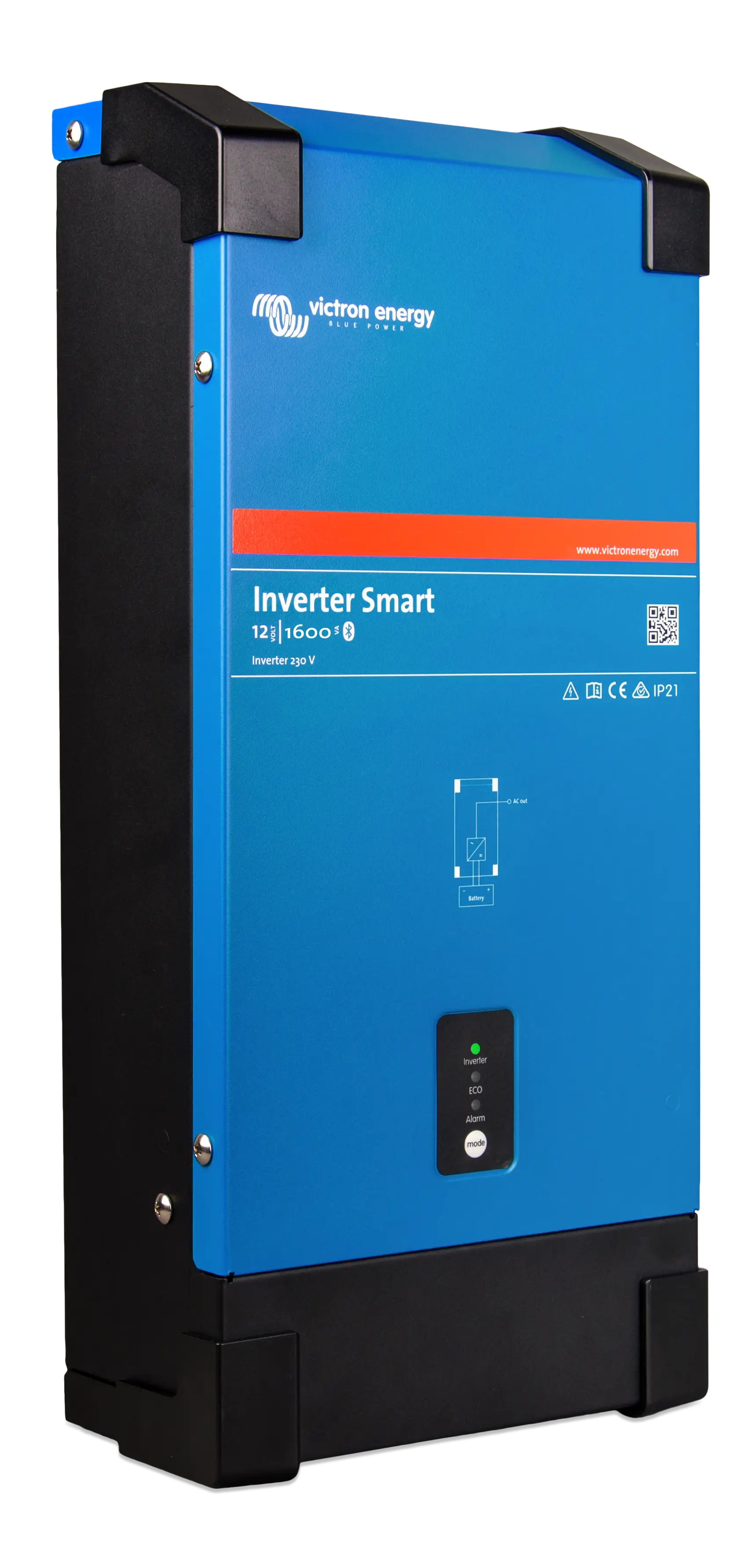

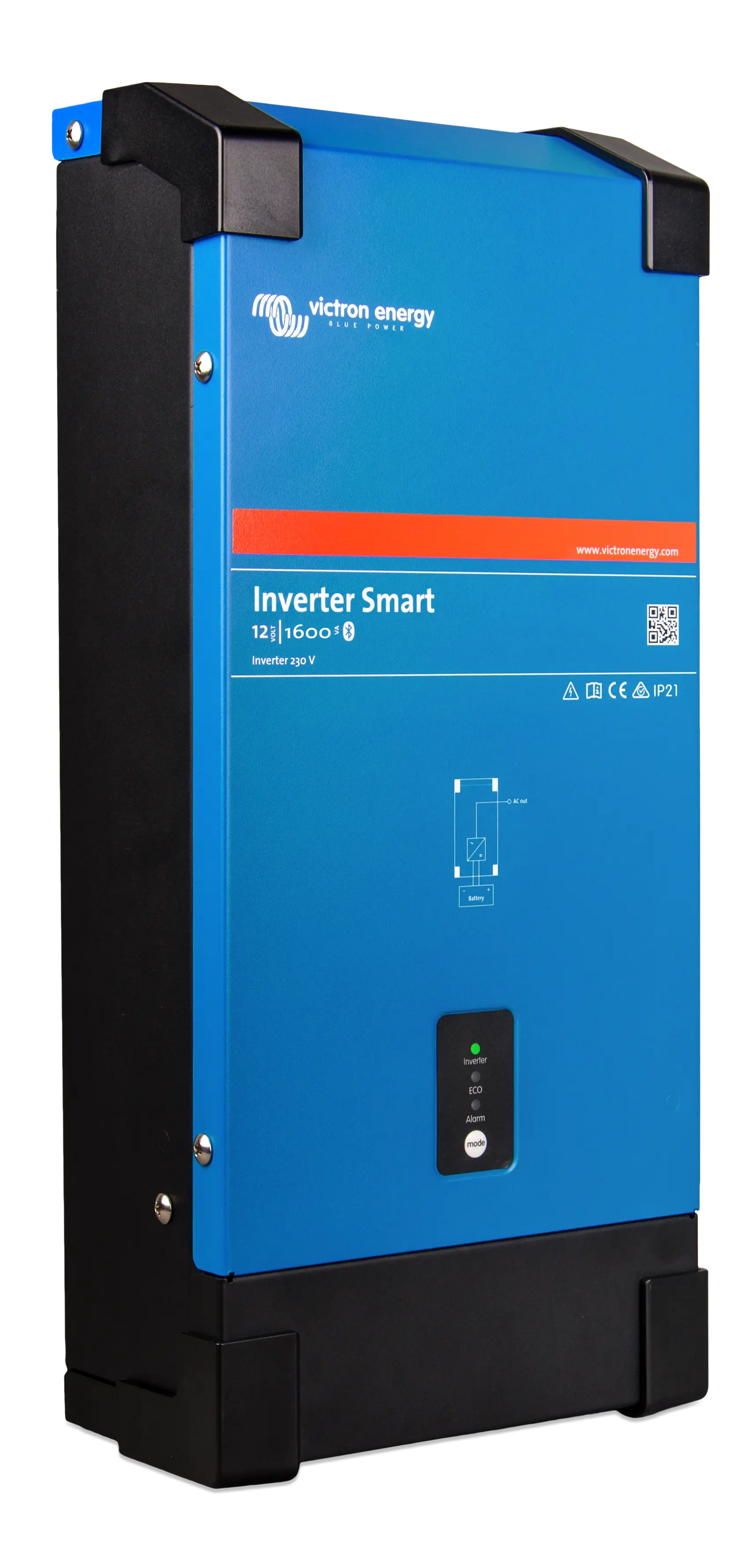

Victron Phoenix Inverter 12/1600 230V Smart

The Victron Phoenix Inverter 12/1600 230V Smart is a high-performance, transformer-based pure sine wave inverter designed for reliability, high surge power, and intelligent configuration. Built on Victron’s proven Phoenix platform, it features a slim all-metal enclosure, advanced protection systems, and built-in Bluetooth for effortless setup and monitoring.

This inverter is ideal for vehicles, boats, caravans, off-grid systems, and backup power applications, supplying stable AC power for sensitive electronics and demanding loads.

High Peak Power with Transformer-Based Design

Using a toroidal transformer topology, the Phoenix Smart delivers exceptionally high start-up power—essential for loads such as power tools, compressors, LED drivers, and halogen lamps. This design also ensures stable voltage, frequency accuracy, and long-term durability.

Pure Sine Wave Output

The inverter produces a clean 230V pure sine wave, making it safe for laptops, TVs, medical equipment, and other sensitive electronics.

Smart Configuration with Built-in Bluetooth

Integrated Bluetooth allows full configuration and monitoring via the VictronConnect app on a smartphone, tablet, or computer. No external accessories are required for wireless setup.

Configurable parameters include:

• Low battery voltage alarm

• Low battery cut-off and restart levels

• Dynamic (load-dependent) cut-off

• Output voltage (210–245V)

• Frequency selection (50Hz / 60Hz)

• ECO mode and sensitivity

• Alarm relay settings

VE.Direct Connectivity

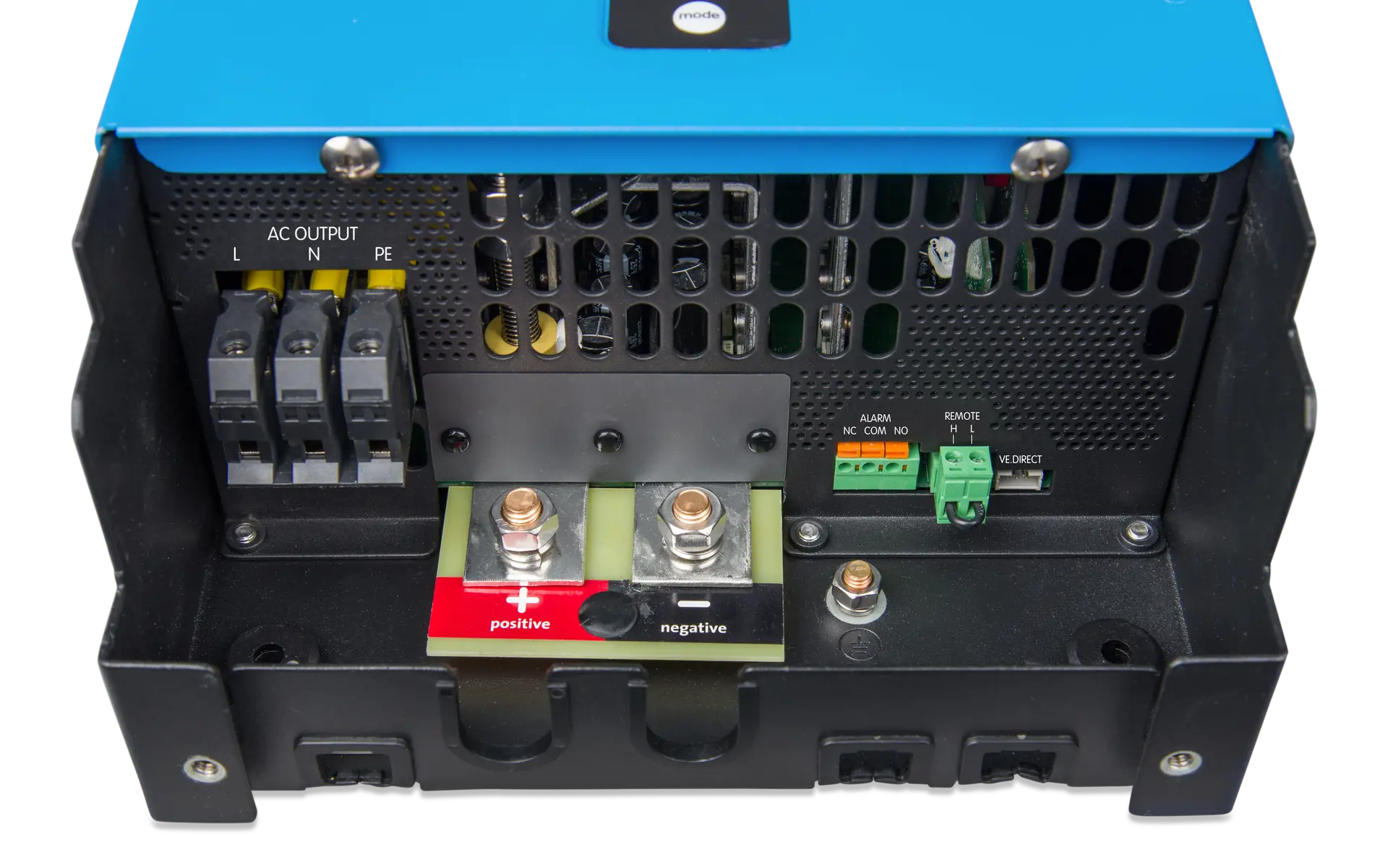

A VE.Direct communication port enables wired connection to a computer using a VE.Direct-to-USB interface cable, allowing configuration and monitoring of the same parameters via Victron software.

ECO Mode for Energy Efficiency

When ECO mode is enabled, the inverter automatically switches to standby at low loads and periodically checks for load demand—significantly reducing power consumption when idle.

Proven Protection & Reliability

• Short-circuit proof

• Overload and over-temperature protection

• Reliable operation in high ambient temperatures

• Long service life backed by Victron’s reputation

Key Specifications

• DC Input Voltage: 12V DC

• Continuous Power: 1600 VA

• Continuous Output Power: 1300 W @ 25°C

• AC Output Voltage: 230 V

• Waveform: Pure Sine Wave

• Topology: Full bridge with toroidal transformer

• Communication: Bluetooth + VE.Direct

• Cooling: Temperature-controlled

• Remote On/Off: Supported

Available Models

• Voltages: 12V / 24V / 48V

• Power Ratings: 1600 VA / 2000 VA / 3000 VA

Ideal Applications

• Off-grid solar systems

• Backup power installations

• Marine and RV systems

• Mobile workshops

• Sensitive electronic equipment
