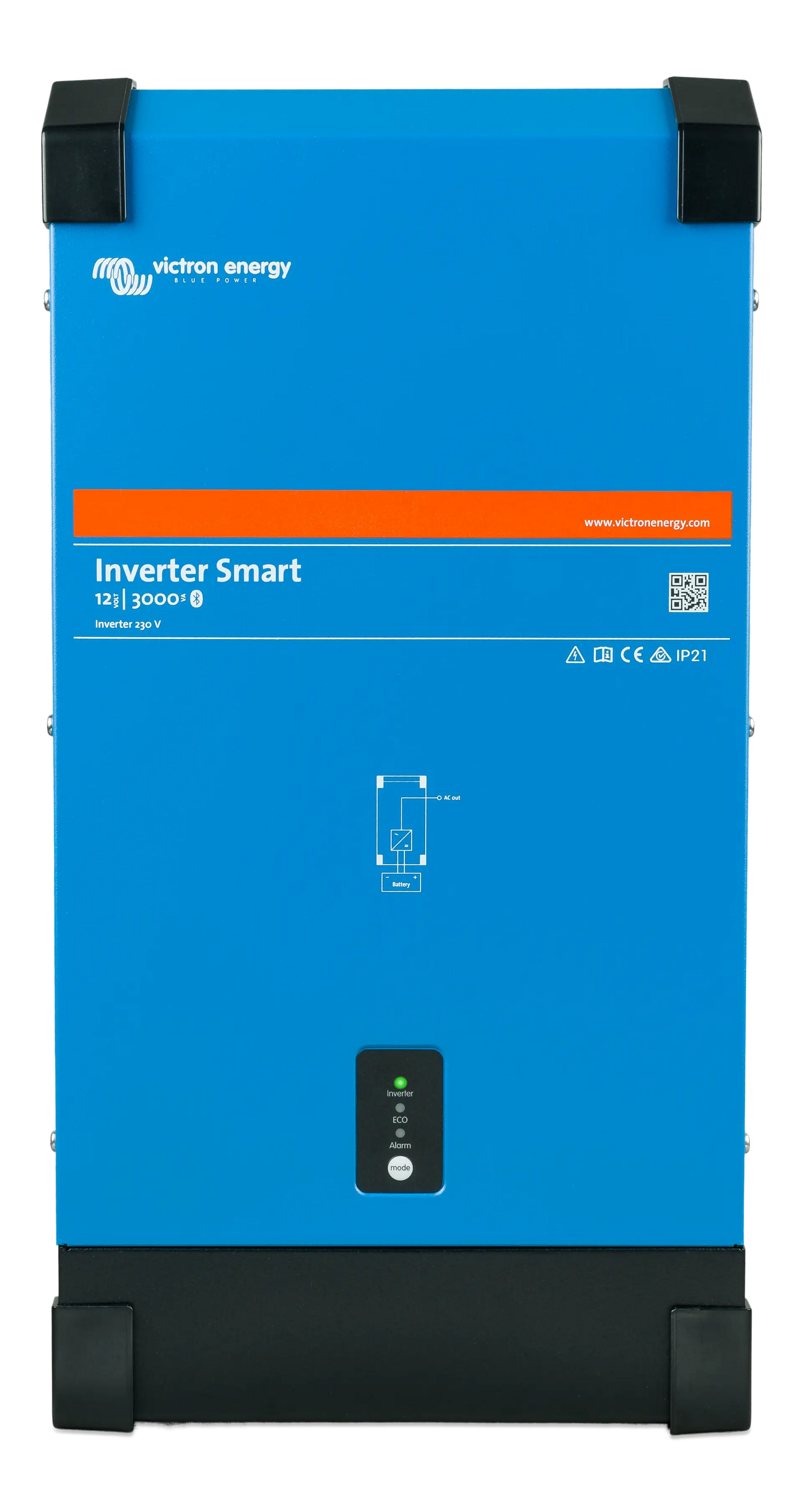

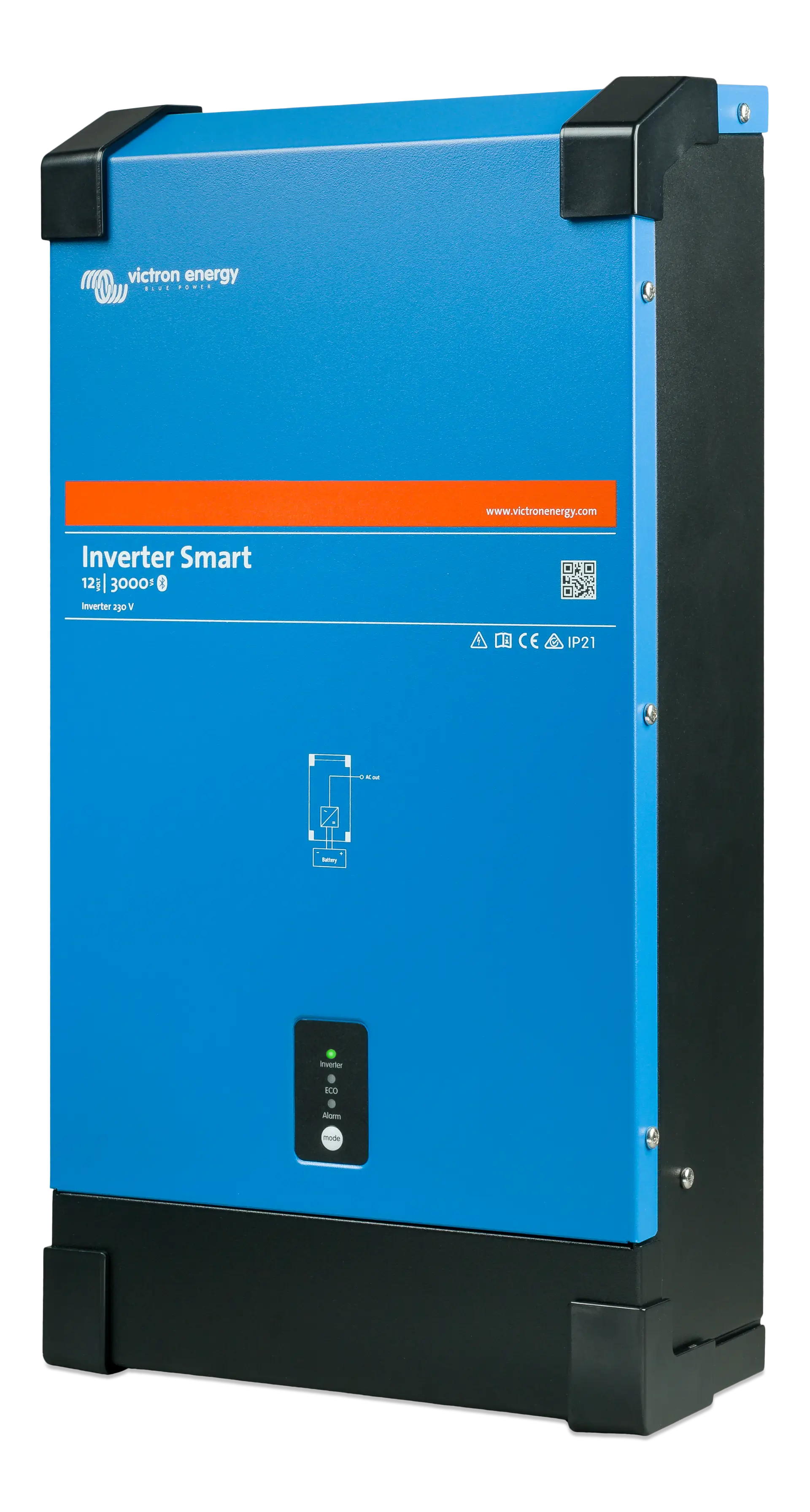

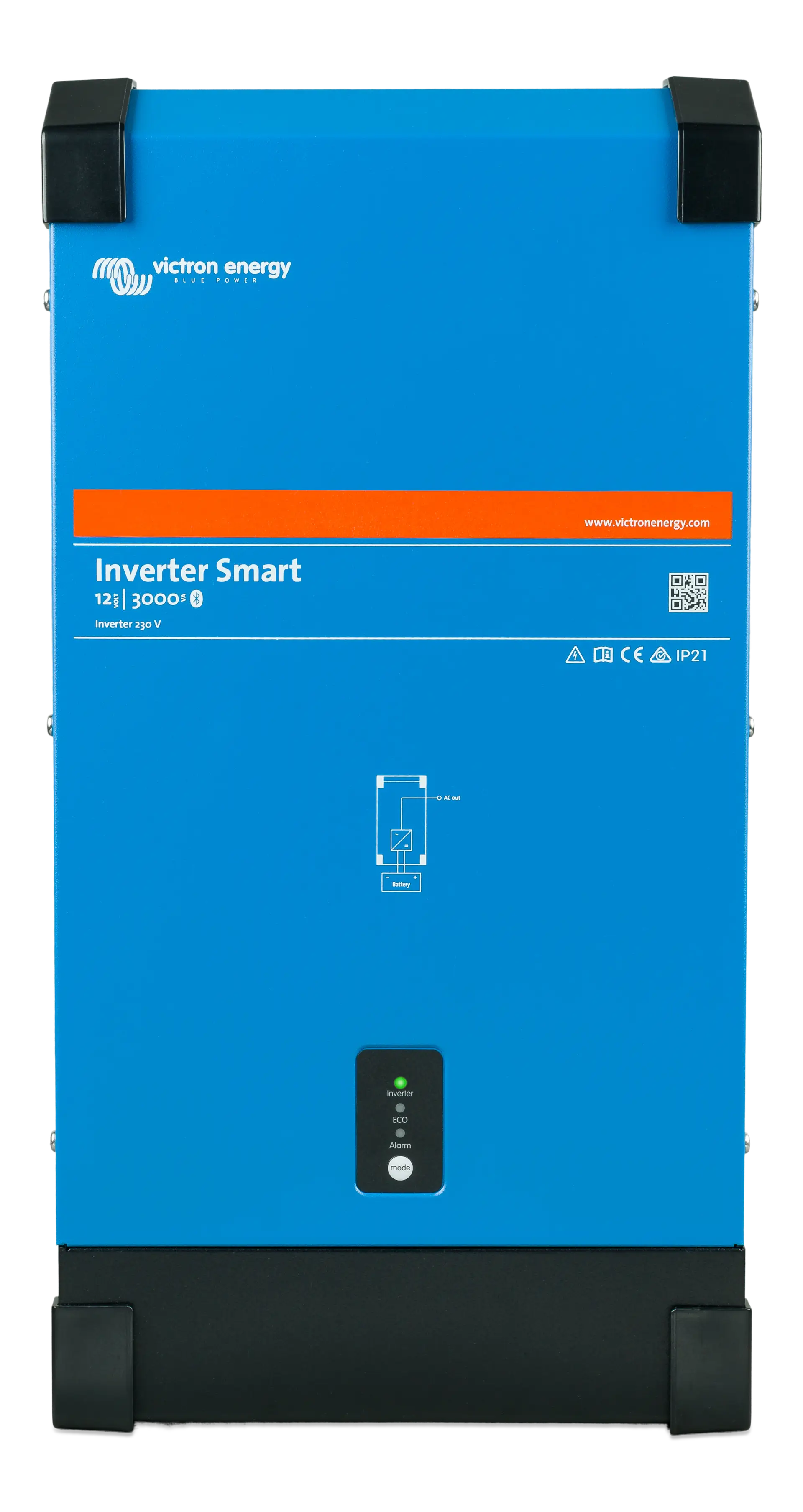

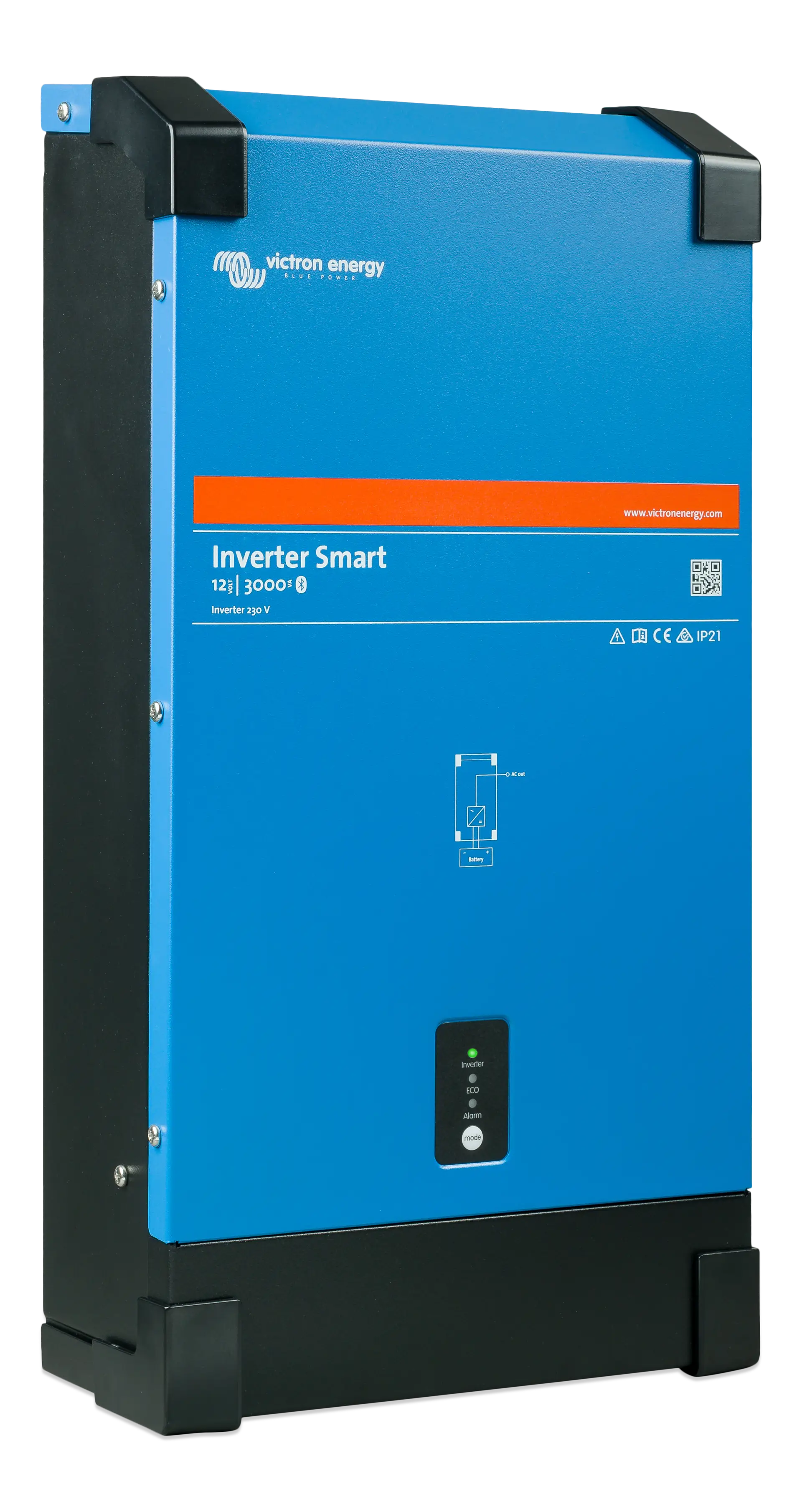

Victron Phoenix Inverter 12/3000 230V Smart

The Victron Phoenix Inverter 12/3000 230V Smart is a high-power, transformer-based pure sine wave inverter engineered for demanding off-grid, mobile, and backup power applications. Built on Victron’s proven Phoenix inverter platform, it features a slim full-metal enclosure, exceptional surge capability, and built-in Bluetooth for advanced configuration and monitoring.

With 3000VA of continuous power and high start-up capacity, this inverter is capable of running multiple appliances simultaneously, making it ideal for homes, caravans, boats, mobile workshops, and off-grid systems.

Transformer-Based High Surge Power

A toroidal transformer topology delivers very high peak power, allowing the inverter to start demanding loads such as power tools, compressors, pumps, LED drivers, and halogen lighting, while maintaining stable voltage and frequency.

Pure Sine Wave Output

Produces a clean 230V pure sine wave, ensuring safe operation of sensitive electronics including computers, TVs, networking equipment, and audio systems.

Smart Control with Built-in Bluetooth

Integrated Bluetooth enables full configuration and monitoring via the VictronConnect app on a smartphone, tablet, or computer.

Configurable parameters include:

• Low battery voltage alarm

• Low battery voltage cut-off and restart levels

• Dynamic (load-dependent) cut-off

• Output voltage (210–245V)

• Frequency selection (50Hz / 60Hz)

• ECO mode on/off and sensitivity

• Alarm relay configuration

VE.Direct Communication Port

The VE.Direct port allows wired connection to a computer using a VE.Direct-to-USB interface cable for configuration and monitoring of the same parameters.

ECO Mode for Improved Efficiency

When ECO mode is enabled, the inverter switches to standby at low loads and periodically checks for demand, significantly reducing idle power consumption.

Proven Victron Reliability & Protection

• Full bridge plus toroidal transformer topology

• Short-circuit proof

• Overload and over-temperature protection

• Reliable operation in high ambient temperatures

• Long service life backed by Victron Energy

Key Specifications

• DC Input Voltage: 12V DC

• Continuous Power: 3000 VA

• Continuous Output Power: 2400 W @ 25°C

• AC Output Voltage: 230 V

• Waveform: Pure Sine Wave

• Topology: Full bridge with toroidal transformer

• Communication: Bluetooth + VE.Direct

• Remote On/Off: Supported

Available Variants

• Input Voltages: 12V / 24V / 48V

• Power Ratings: 1600 VA / 2000 VA / 3000 VA

Ideal Applications

• Off-grid solar power systems

• Residential backup power

• Caravans, RVs, and marine installations

• Mobile workshops and tools

• High-power appliances and sensitive electronics
