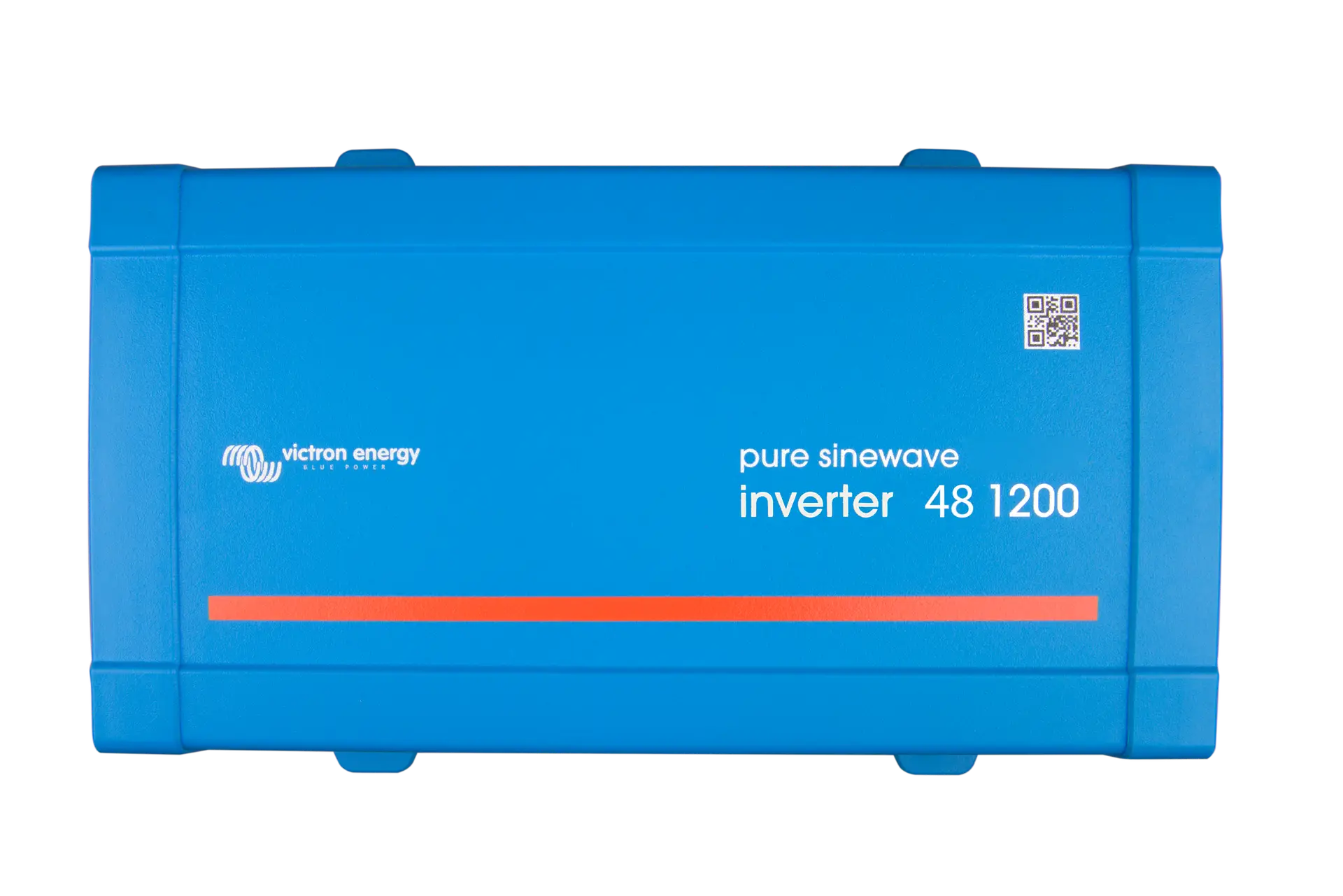

Victron Phoenix Inverter 48/1200 230V VE.Direct IEC

The Victron Phoenix Inverter 48/1200 230V VE.Direct IEC is a powerful pure sine wave inverter designed to convert 48V DC battery power into stable 230V AC electricity. It is ideal for solar power systems, backup installations, marine environments, caravans, workshops, and off-grid applications, where dependable, high-quality AC power is required for both sensitive electronics and higher-demand loads.

Built around Victron’s proven full bridge plus toroidal transformer topology, the Phoenix 48/1200 delivers exceptional reliability, efficiency, and surge performance. The inverter is short-circuit proof and protected against overload and overheating, even when operating in high ambient temperatures or under sustained heavy loads.

With high start-up power, this inverter easily handles demanding loads such as LED drivers, halogen lamps, compressors, power tool chargers, and small appliances. The intelligent Eco Mode improves energy efficiency by switching the inverter to standby when the load falls below a preset threshold, automatically reactivating when power demand increases.

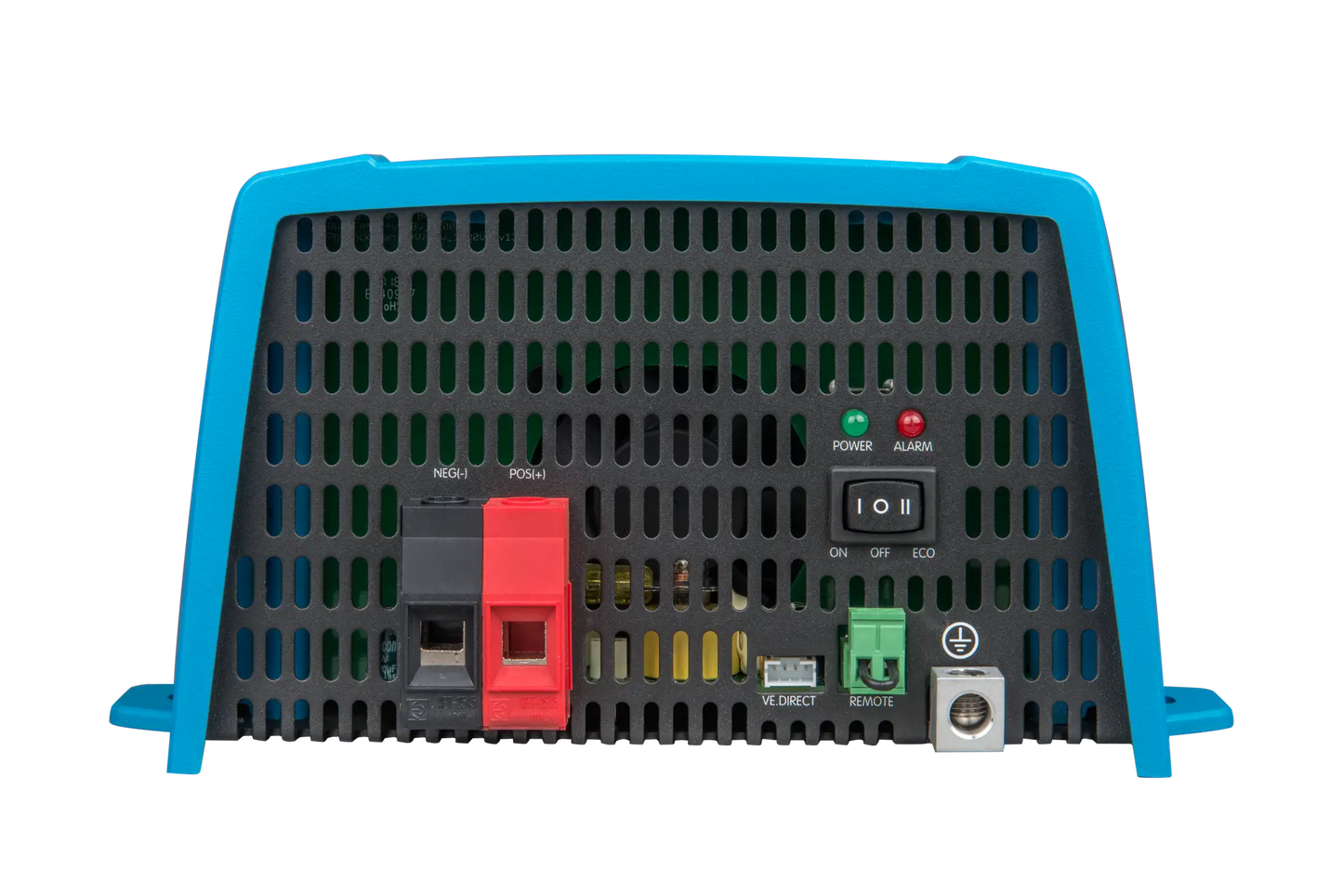

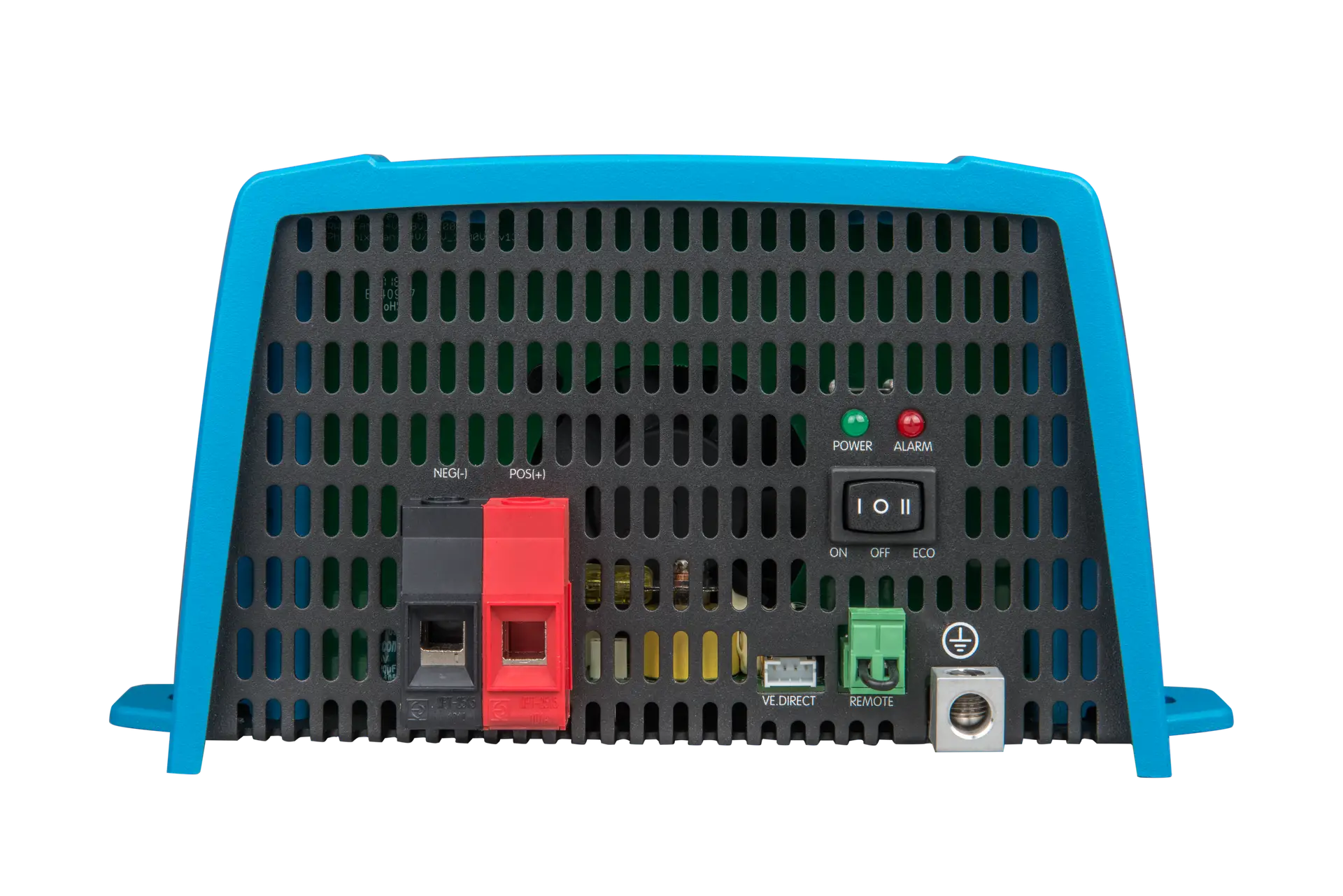

The integrated VE.Direct communication port allows monitoring and configuration via Victron monitoring devices and software. Remote on/off functionality enables easy system integration, while LED diagnostic indicators provide clear visual feedback on inverter status and fault conditions.

For applications requiring seamless power continuity, the inverter can be combined with the Victron Filax Automatic Transfer Switch, offering ultra-fast load transfer (under 20 milliseconds) between inverter power and an external AC source — ensuring uninterrupted operation for computers and other sensitive electronic equipment.

Key Features

• Victron Phoenix series inverter with proven long-term reliability

• Pure sine wave output – safe for sensitive and inductive loads

• 48V DC to 230V AC power conversion

• 1200VA inverter with high surge capability

• Continuous power: 1000W at 25°C / 850W at 40°C

• 2200W peak power for high start-up loads

• VE.Direct communication interface

• Eco Mode for reduced battery consumption

• Short-circuit, overload, and over-temperature protection

• Remote on/off control capability

• LED diagnostic indicators

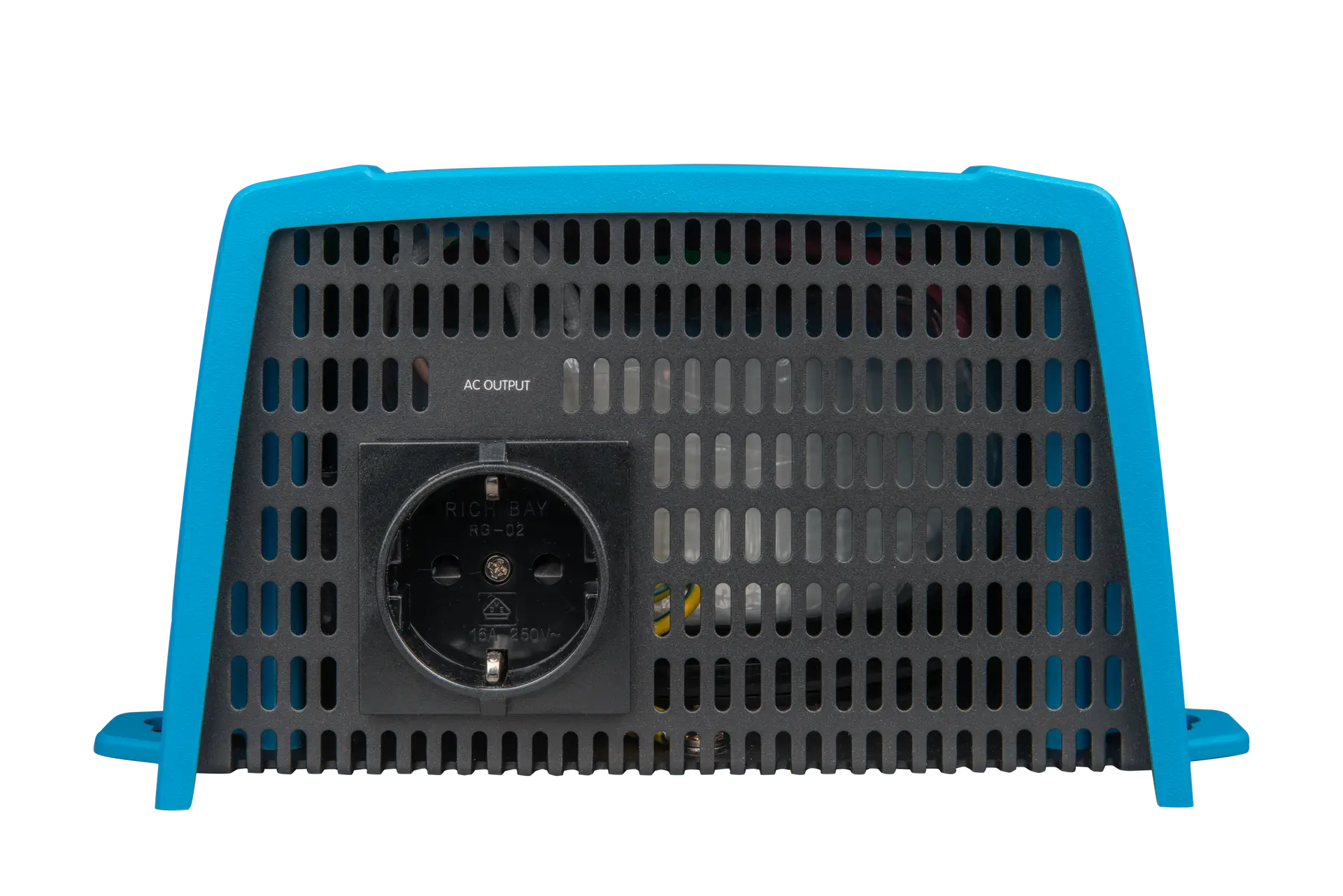

• IEC AC output socket

• Compatible with Victron Filax Automatic Transfer Switch

Technical Specifications

• DC Input Voltage: 48V DC

• AC Output Voltage: 230V AC

• Rated Power: 1200VA

• Continuous Power: 1000W (25°C) / 850W (40°C)

• Peak Power: 2200W

• Waveform: Pure Sine Wave

• Eco Mode Minimum Load: 15W

• Communication: VE.Direct

• AC Connection: IEC Output
