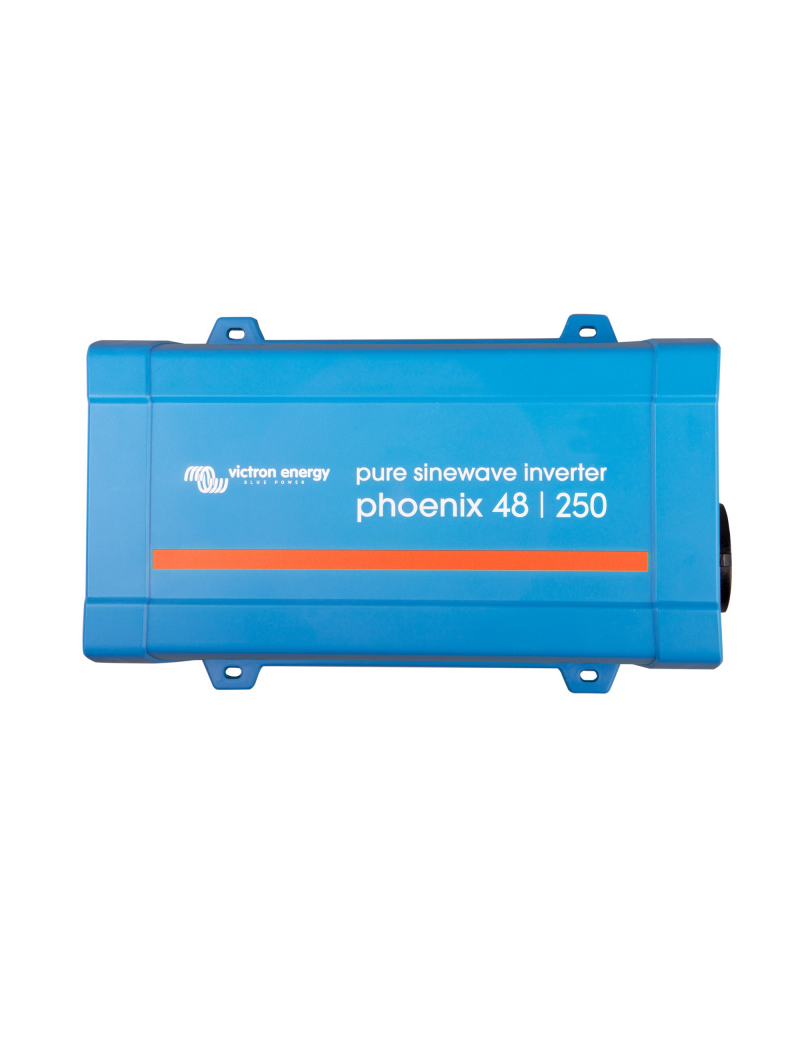

Victron Phoenix Inverter 48/250 230V VE.Direct IEC

The Victron Phoenix Inverter 48/250 230V VE.Direct IEC is a compact and reliable pure sine wave inverter designed to convert 48V DC battery power into stable 230V AC electricity. It is ideal for 48V solar systems, telecom installations, backup power solutions, and off-grid applications, where efficiency, reliability, and clean power are essential.

Built using Victron’s proven full bridge plus toroidal transformer topology, the Phoenix inverter delivers excellent durability, efficiency, and surge capability. The unit is short-circuit proof and protected against overload and overheating, even in high ambient temperatures.

With high start-up power, the inverter easily powers demanding loads such as LED drivers, halogen lamps, power adapters, and small electric tools. The intelligent Eco Mode reduces battery consumption by switching the inverter to standby when loads fall below a preset threshold, automatically reactivating when demand increases.

The integrated VE.Direct communication port allows monitoring and configuration through Victron monitoring devices and software. Remote on/off functionality enables simple system integration, while LED diagnostic indicators provide clear visual feedback on inverter status and faults.

For applications requiring uninterrupted power, the inverter can be paired with the Victron Filax Automatic Transfer Switch, enabling ultra-fast load transfer (under 20 milliseconds) between inverter and an external AC source — ensuring seamless operation for sensitive electronics.

Key Features

• Victron Phoenix series inverter with proven long-term reliability

• Pure sine wave output – safe for sensitive electronics

• 48V DC to 230V AC power conversion

• 250VA inverter for low-power applications

• Continuous power: 200W at 25°C / 175W at 40°C

• 400W peak power for high start-up loads

• VE.Direct communication interface

• Eco Mode for reduced battery consumption

• Short-circuit, overload, and over-temperature protection

• Remote on/off control capability

• LED diagnostic indicators

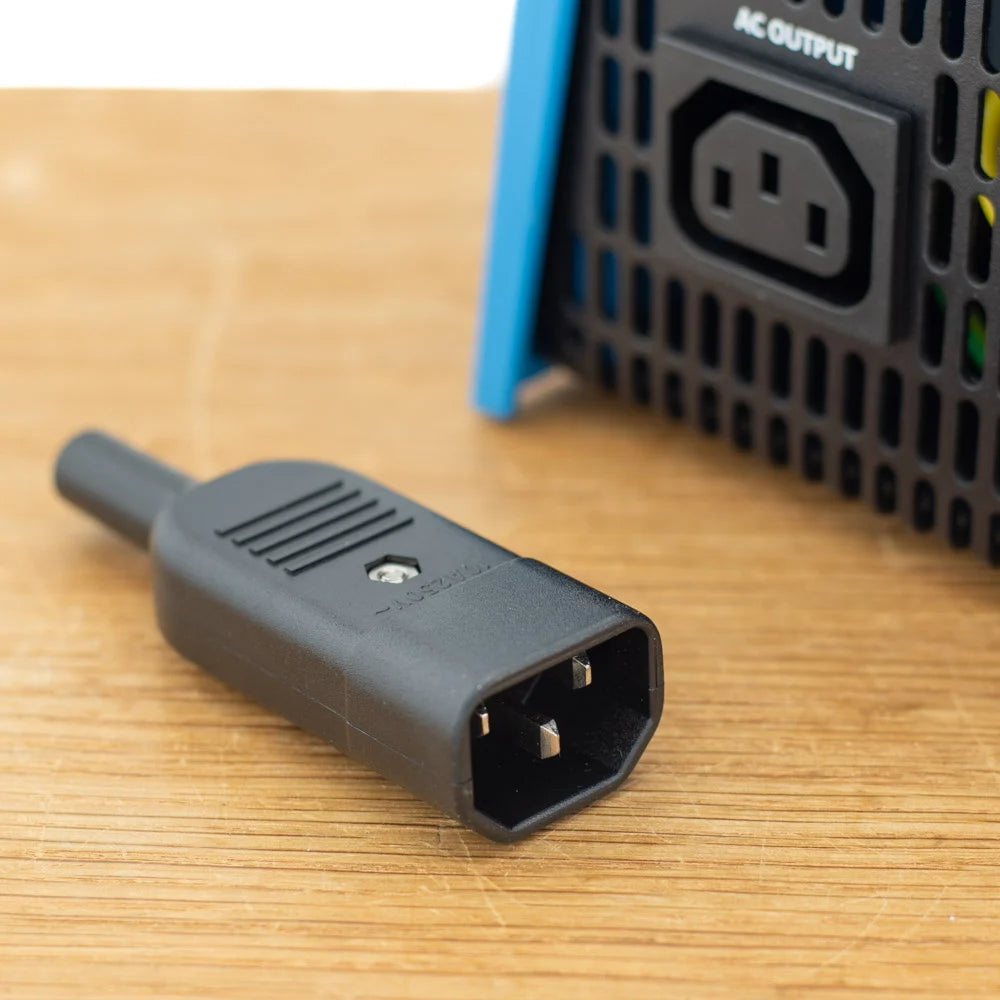

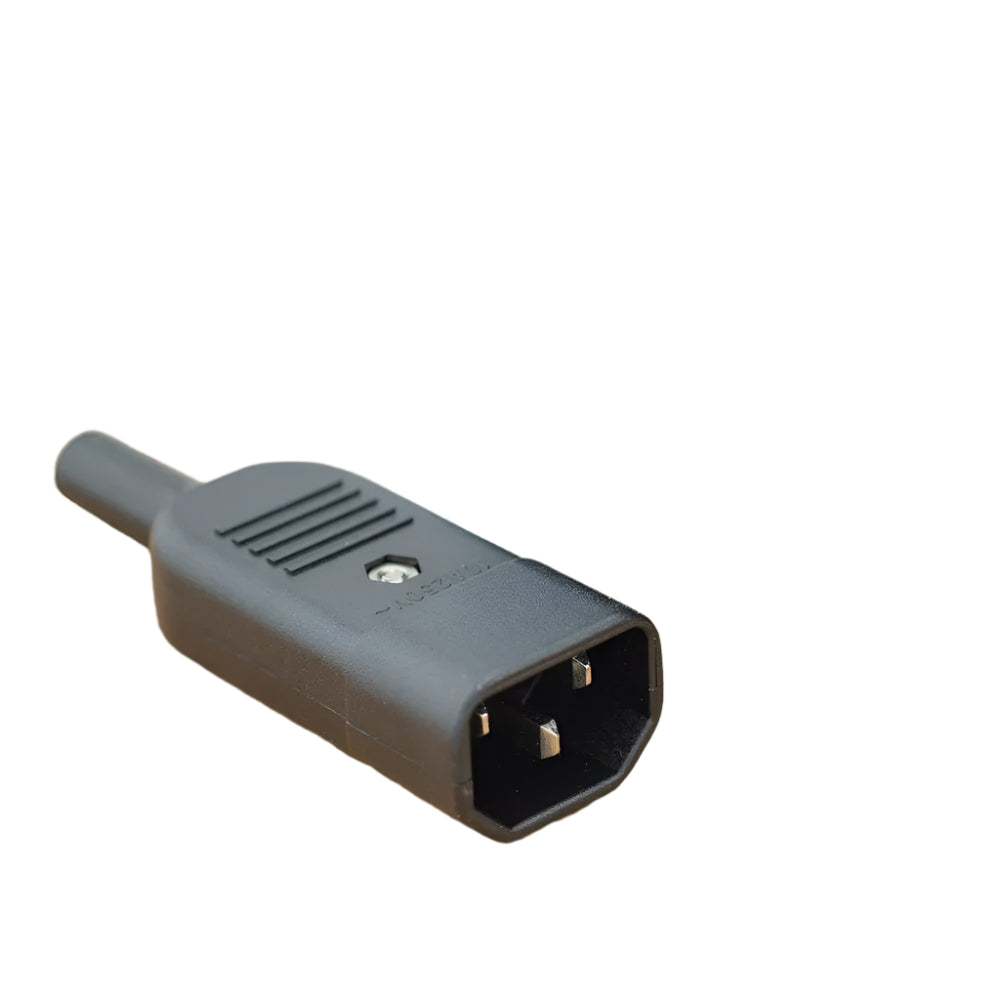

• IEC AC output socket

• Compatible with Victron Filax Automatic Transfer Switch

Technical Specifications

• DC Input Voltage: 48V DC

• AC Output Voltage: 230V AC

• Rated Power: 250VA

• Continuous Power: 200W (25°C) / 175W (40°C)

• Peak Power: 400W

• Waveform: Pure Sine Wave

• Eco Mode Minimum Load: 15W

• Communication: VE.Direct

• AC Connection: IEC Output
