Victron Phoenix Inverter 48/500 230V VE.Direct IEC

The Victron Phoenix Inverter 48/500 230V VE.Direct IEC is a reliable pure sine wave inverter designed to convert 48V DC battery power into stable 230V AC electricity. It is ideally suited for 48V solar systems, backup power installations, telecom environments, and off-grid applications, where clean and dependable AC power is required for sensitive electronic equipment.

Built using Victron’s proven full bridge plus toroidal transformer topology, the Phoenix inverter delivers excellent durability, efficiency, and surge handling. The unit is short-circuit proof and protected against overload and overheating, even in high ambient temperature conditions.

With high start-up power, the inverter easily powers demanding loads such as LED drivers, halogen lamps, power adapters, and small electric tools. The intelligent Eco Mode improves energy efficiency by switching the inverter to standby when loads drop below a preset threshold, automatically reactivating when demand increases.

The integrated VE.Direct communication port allows monitoring and configuration via Victron monitoring devices and software. Remote on/off functionality enables easy system integration, while LED diagnostic indicators provide clear visual feedback on operating status and fault conditions.

For applications requiring uninterrupted AC supply, the inverter can be paired with the Victron Filax Automatic Transfer Switch, offering ultra-fast load transfer (under 20 milliseconds) between inverter power and an external AC source — ensuring seamless operation for computers and other sensitive electronic equipment.

Key Features

• Victron Phoenix series inverter with proven long-term reliability

• Pure sine wave output – safe for sensitive electronics

• 48V DC to 230V AC power conversion

• 500VA inverter for low-to-medium power applications

• Continuous power: 400W at 25°C / 350W at 40°C

• 900W peak power for high start-up loads

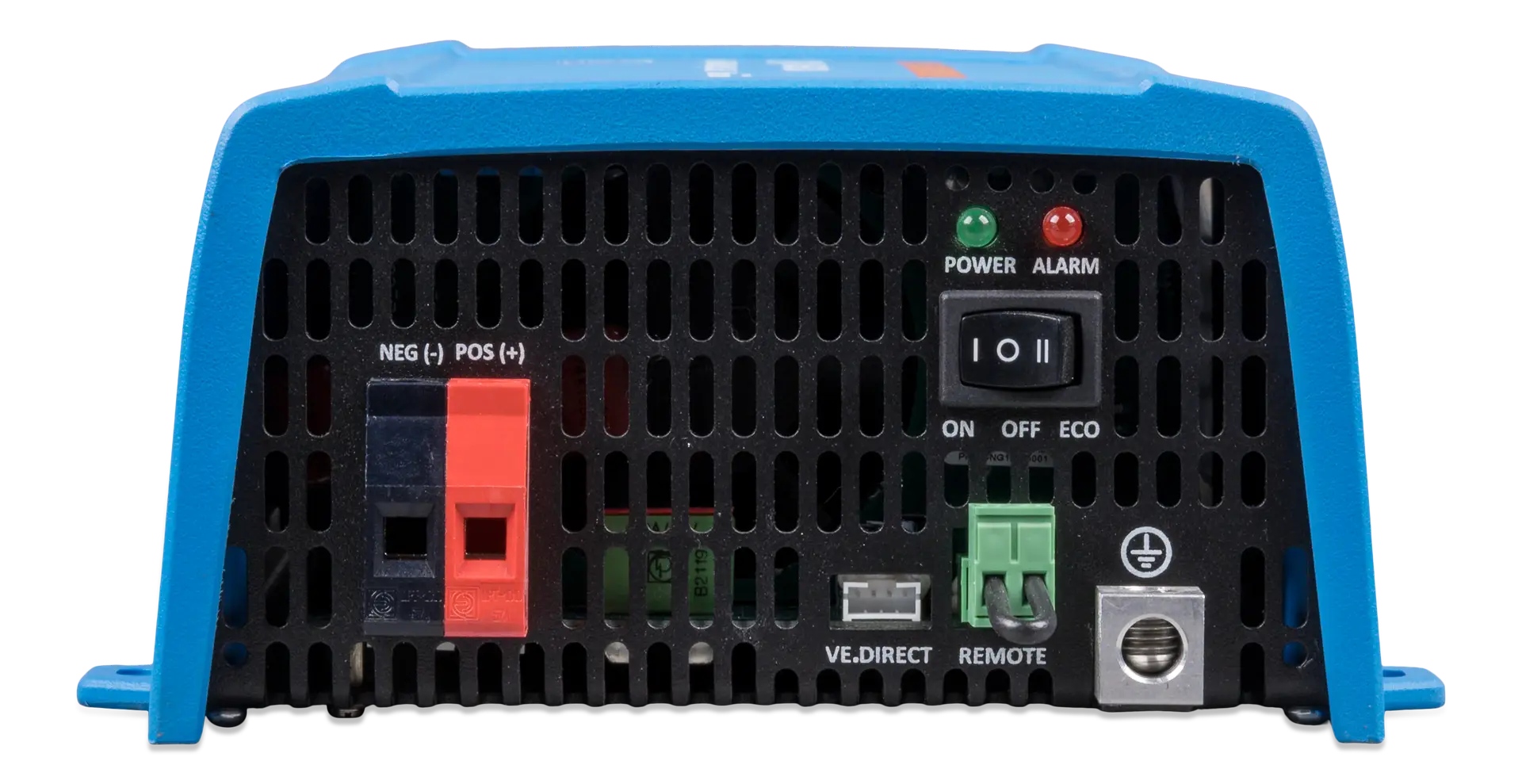

• VE.Direct communication interface

• Eco Mode for reduced battery consumption

• Short-circuit, overload, and over-temperature protection

• Remote on/off control capability

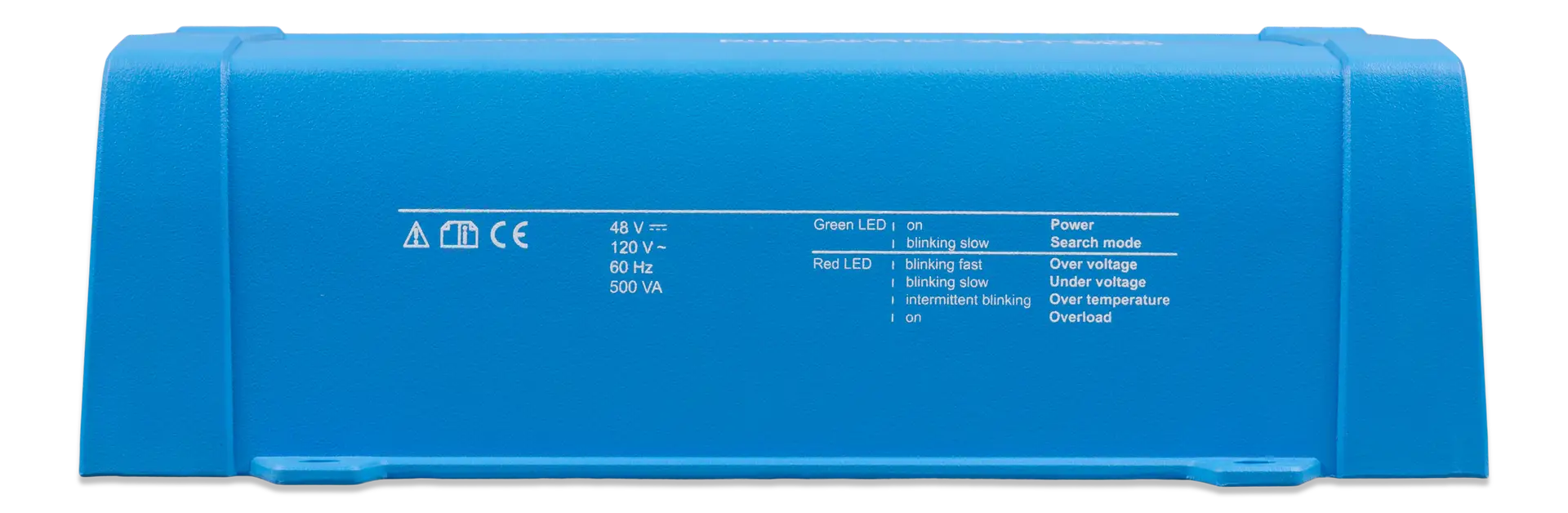

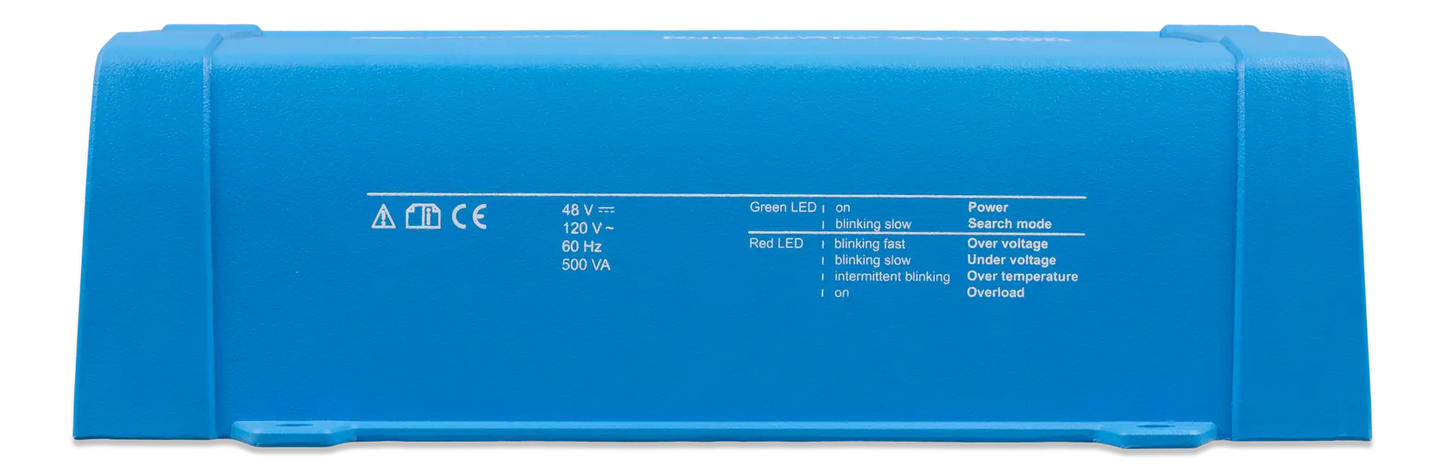

• LED diagnostic indicators

• IEC AC output socket

• Compatible with Victron Filax Automatic Transfer Switch

Technical Specifications

• DC Input Voltage: 48V DC

• AC Output Voltage: 230V AC

• Rated Power: 500VA

• Continuous Power: 400W (25°C) / 350W (40°C)

• Peak Power: 900W

• Waveform: Pure Sine Wave

• Eco Mode Minimum Load: 15W

• Communication: VE.Direct

• AC Connection: IEC Output
