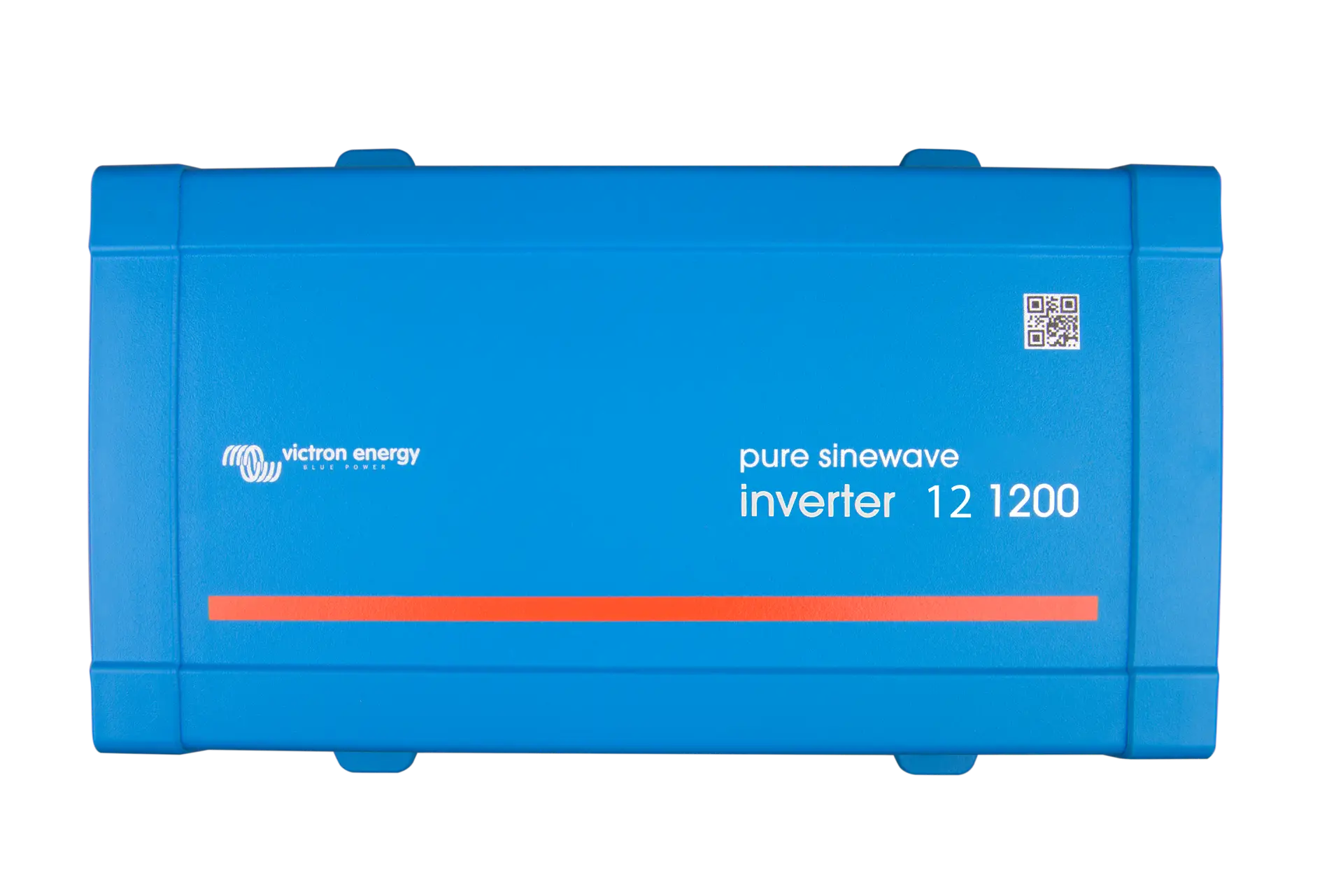

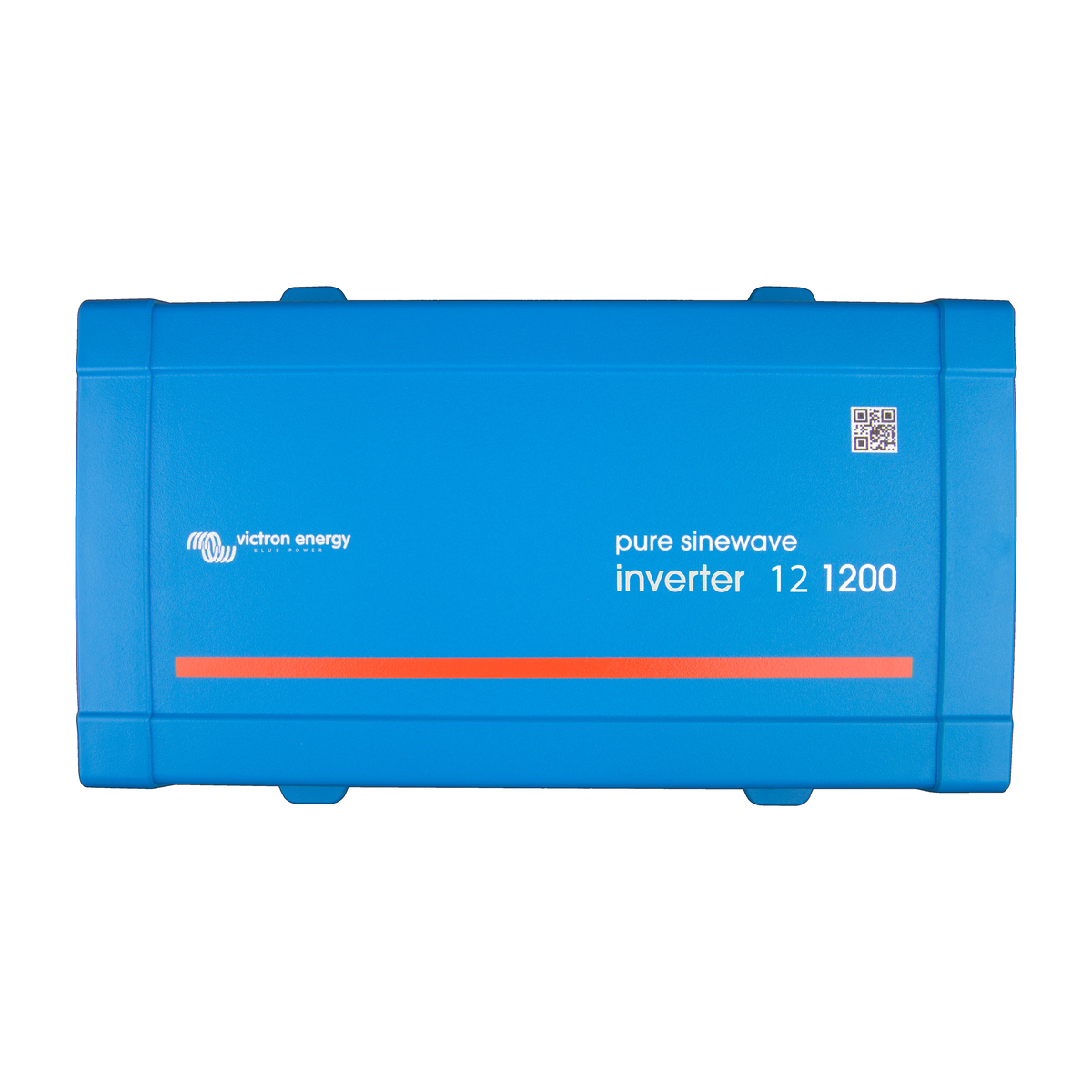

Victron Pure Sinewave Phoenix Inverter 12/1200 230V VE.Direct IEC

Power household appliances and tools from a 12V DC battery bank with the Victron Energy Phoenix Inverter VE.Direct 12/1200. Designed for off-grid solar systems, RVs, boats, and automotive applications, this high-performance inverter delivers stable 230V AC power with advanced features for reliability, efficiency, and intelligent operation.

🔧 Key Features

• Fully Configurable – Set low battery alarms, cut-off levels, dynamic load-dependent cut-off, ECO mode, and output voltage/frequency.

• Monitoring Capability – Track input/output voltage, load percentage, and alarms via VE.Direct to USB interface or Bluetooth Smart dongle.

• Proven Reliability – Full bridge plus toroidal transformer topology; short-circuit and overheating protection.

• High Start-Up Power – Ideal for starting LED lamps, halogen lights, electric tools, and other high-demand loads.

• ECO Mode – Automatically enters standby under low load to save energy and switches on at preset load intervals.

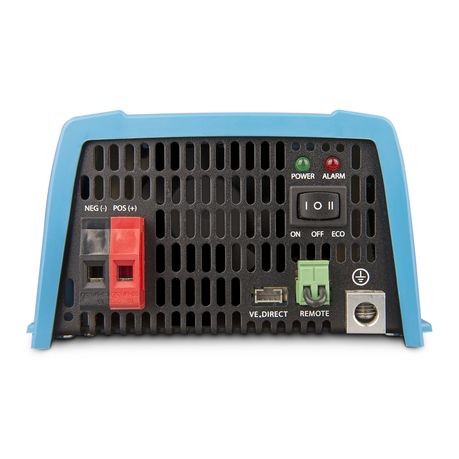

• Remote On/Off – Optional switch connection for convenient operation.

• VE.Direct Communication Port – Connects to computers, smartphones, tablets, or other devices for monitoring and configuration.

🔹 Specifications

• Continuous Power: 1000W at 25°C

• Peak Power: 2200W

• AC Output Voltage/Frequency: 230V ± 3%, 50Hz ± 0.1%

• DC Input Voltage Range: 9.2 – 17V

• DC Low Shut Down: 9.3V

• Maximum Efficiency: 91%

• Zero-Load Power: 7W

• Maximum Cable Cross-Section: 35 mm²

• Standard AC Outlet: IEC-320 (male plug included)

• Protection Category: IP21

📦 What’s in the Box

• 1 x Victron Energy Phoenix Inverter VE.Direct 12/1200

• 1 x IEC-320 Male Plug

💡 Perfect For

• Off-grid solar power systems

• RVs, caravans, and boats requiring high AC power

• Running domestic appliances, tools, and electronics from a 12V battery bank

• Users needing high-performance, reliable, and configurable inverters
