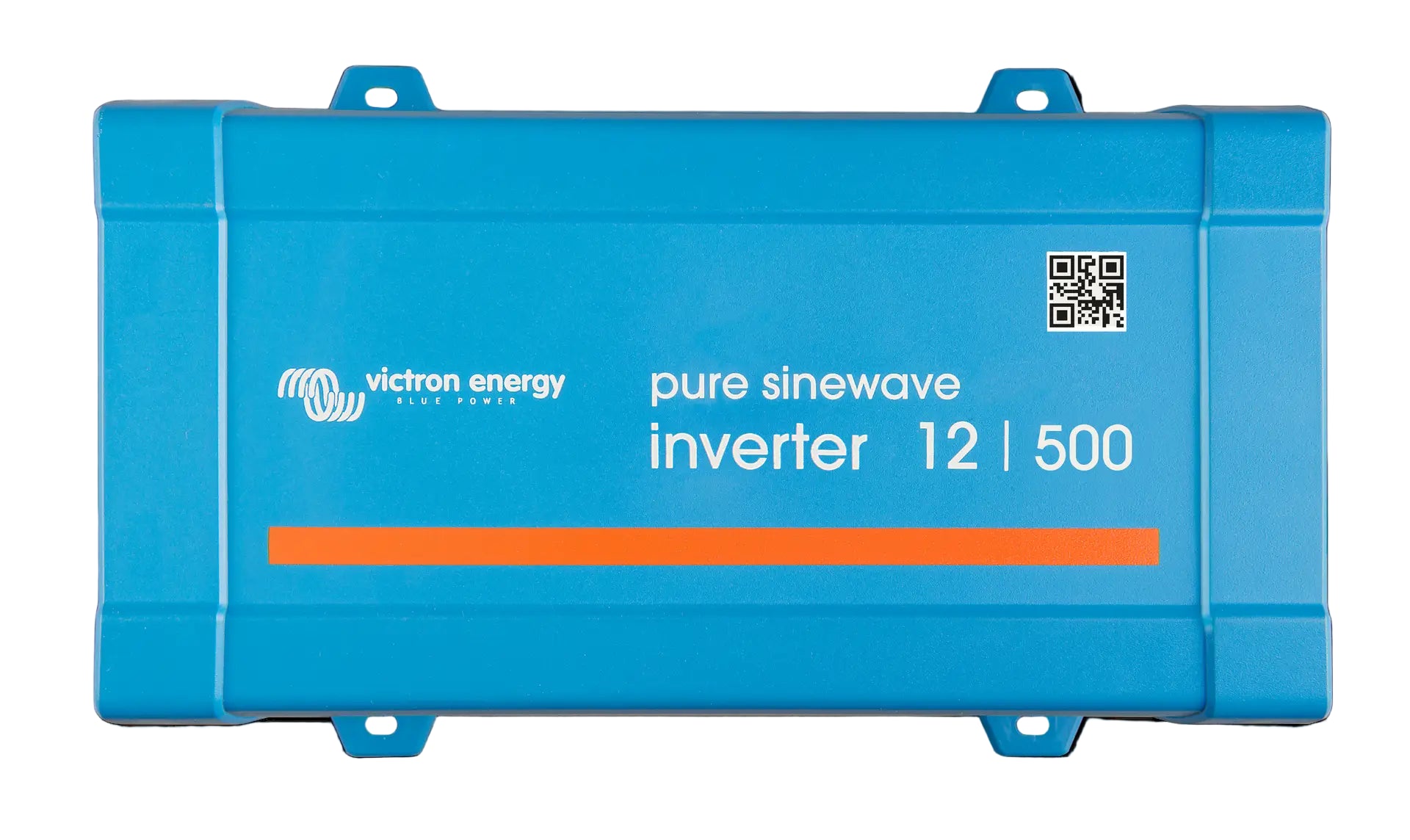

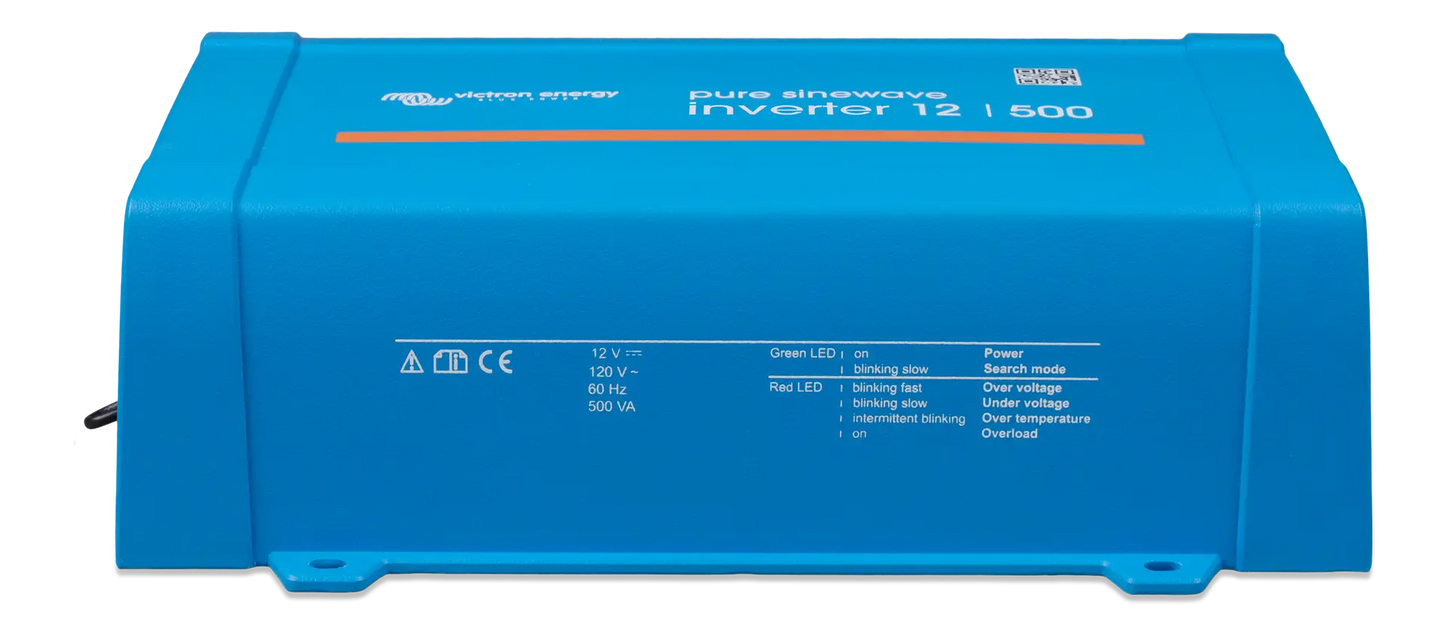

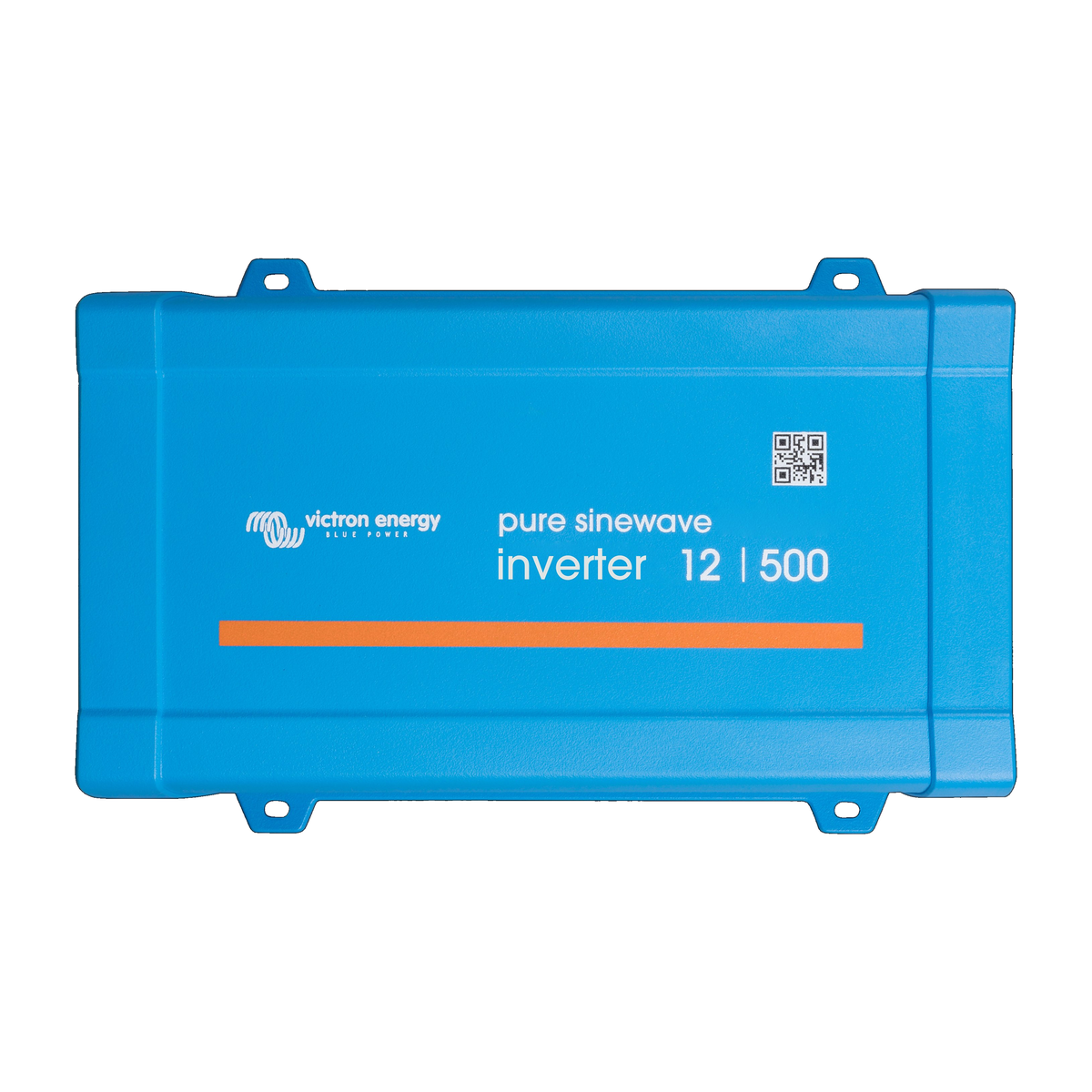

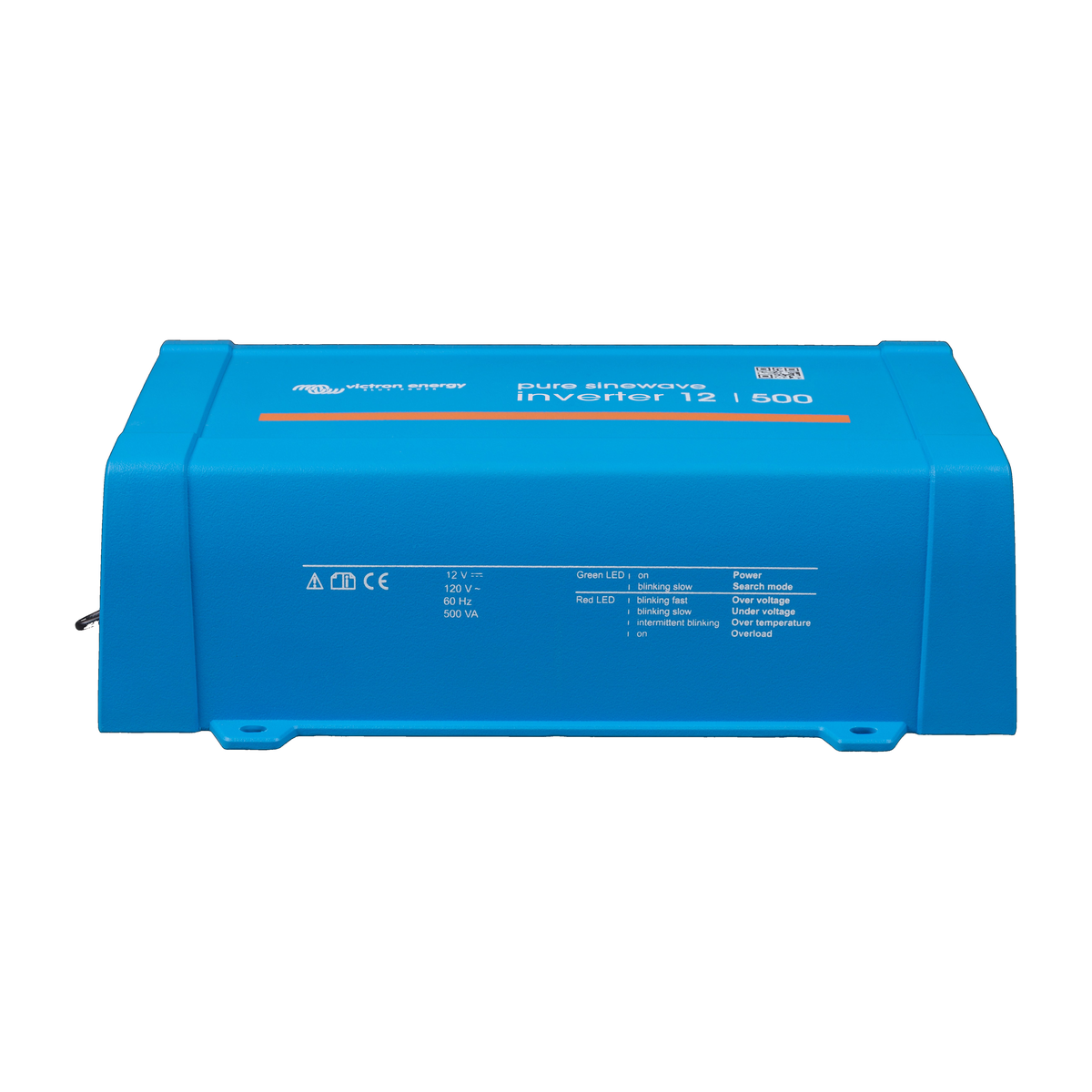

Victron Pure Sinewave Phoenix Inverter 12/500 230V VE.Direct IEC

Run household appliances from a 12V DC battery bank with the Victron Energy Phoenix Inverter VE.Direct 12/500. Perfect for off-grid, RV, boat, or automotive applications, this compact inverter provides reliable 230V AC power for small domestic equipment and electronic devices.

🔧 Key Features

• VE.Direct Communication Port – Monitor and configure the inverter using VE.Direct Bluetooth Smart dongle (sold separately).

• Fully Configurable – Adjust settings for low battery cut-off, battery paramters, ECO mode, and more. Configuration of the devices requires either a GX device, VE.Direct Bluetooth Smart dongle, VE.Direct to USB Interface or VE.Bus dongle (sold separately).

• Proven Reliability – Built with a full-bridge plus toroidal transformer topology for long-lasting performance.

• High Start-Up Power – Easily starts loads such as LED lamps, halogen lights, or small power tools.

• ECO Mode – Automatically enters standby under low load to save energy.

• Remote On/Off – Optional switch for convenient control.

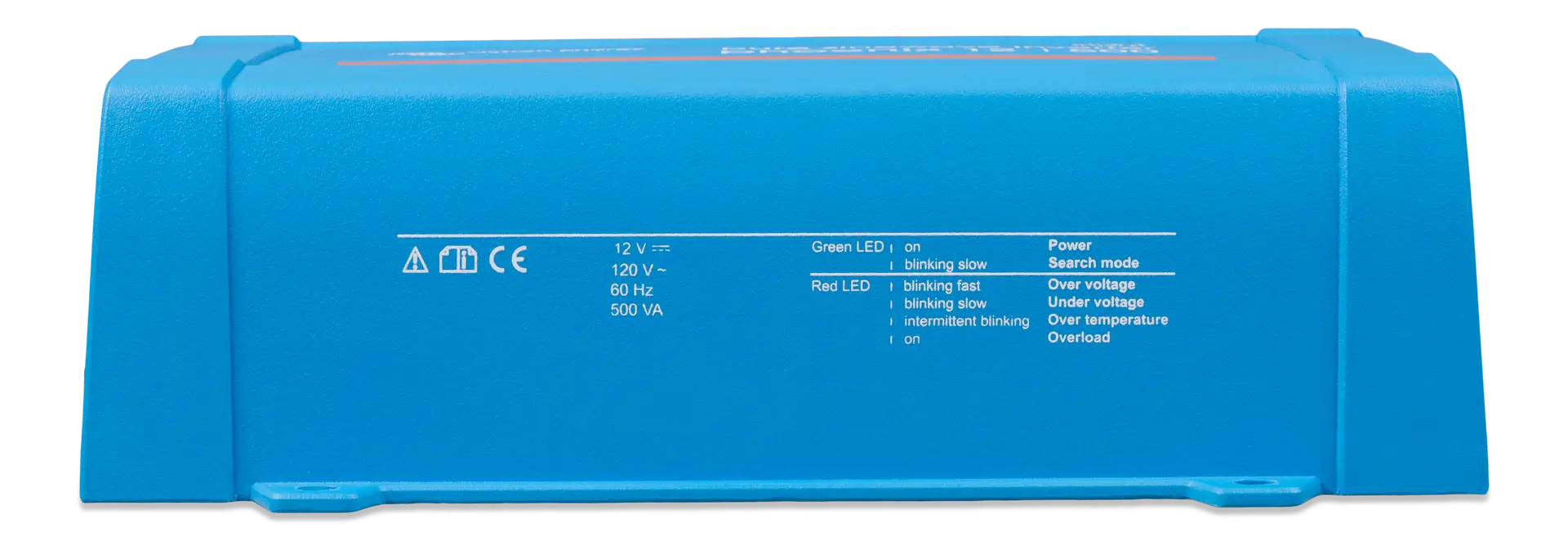

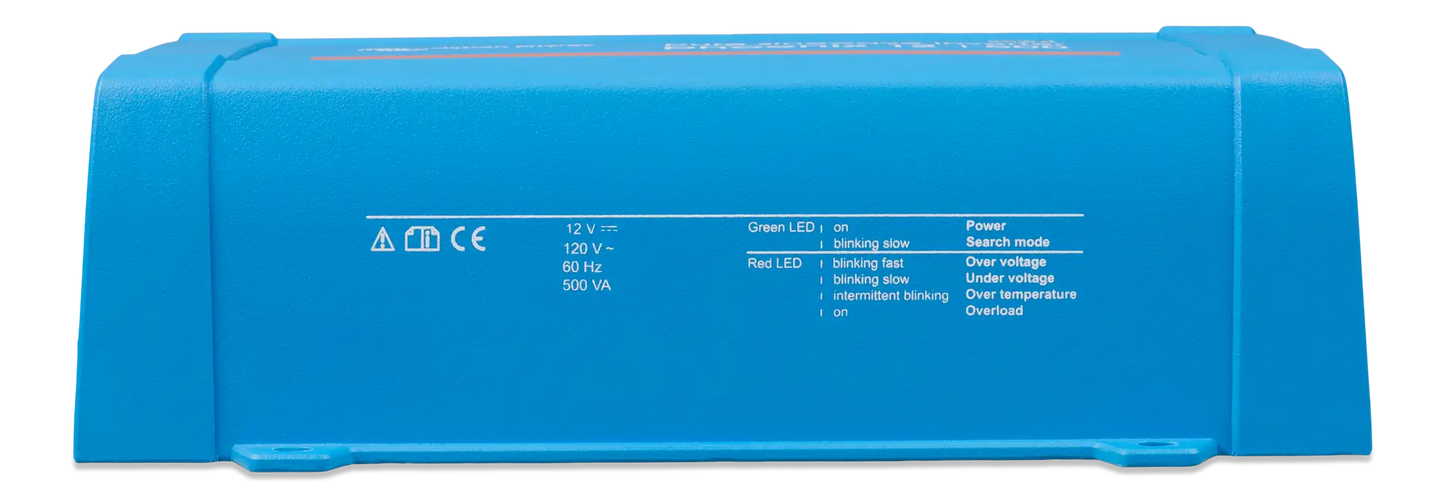

• LED Diagnosis – Clear visual indicators for load, faults, and operation.

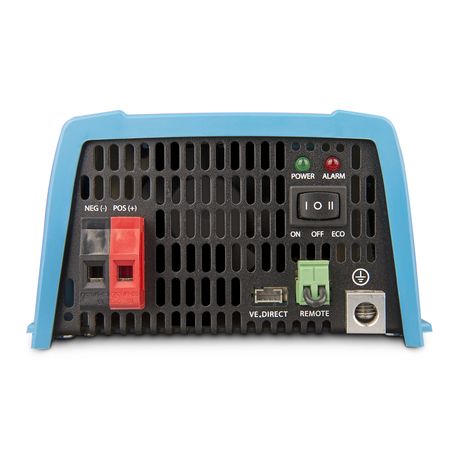

• Secure DC Connection – Screw terminal design for reliable battery connection.

🔹 Specifications

• Continuous Power: 400W at 25°C

• Peak Power: 900W

• Input Voltage Range: 9.2 – 17VDC

• Output Voltage: 230VAC

• Max Efficiency: 90%

📦 What’s in the Box

• 1 x Phoenix Inverter 12/500 230V VE.Direct IEC

• 1 x IEC-320 Male Plug

• 1x  User Manual

💡 Perfect For

• Small off-grid and mobile solar power systems

• RVs, caravans, and boats

• Powering small household appliances and electronic devices

• Users needing a compact, reliable, and configurable 12V inverter
